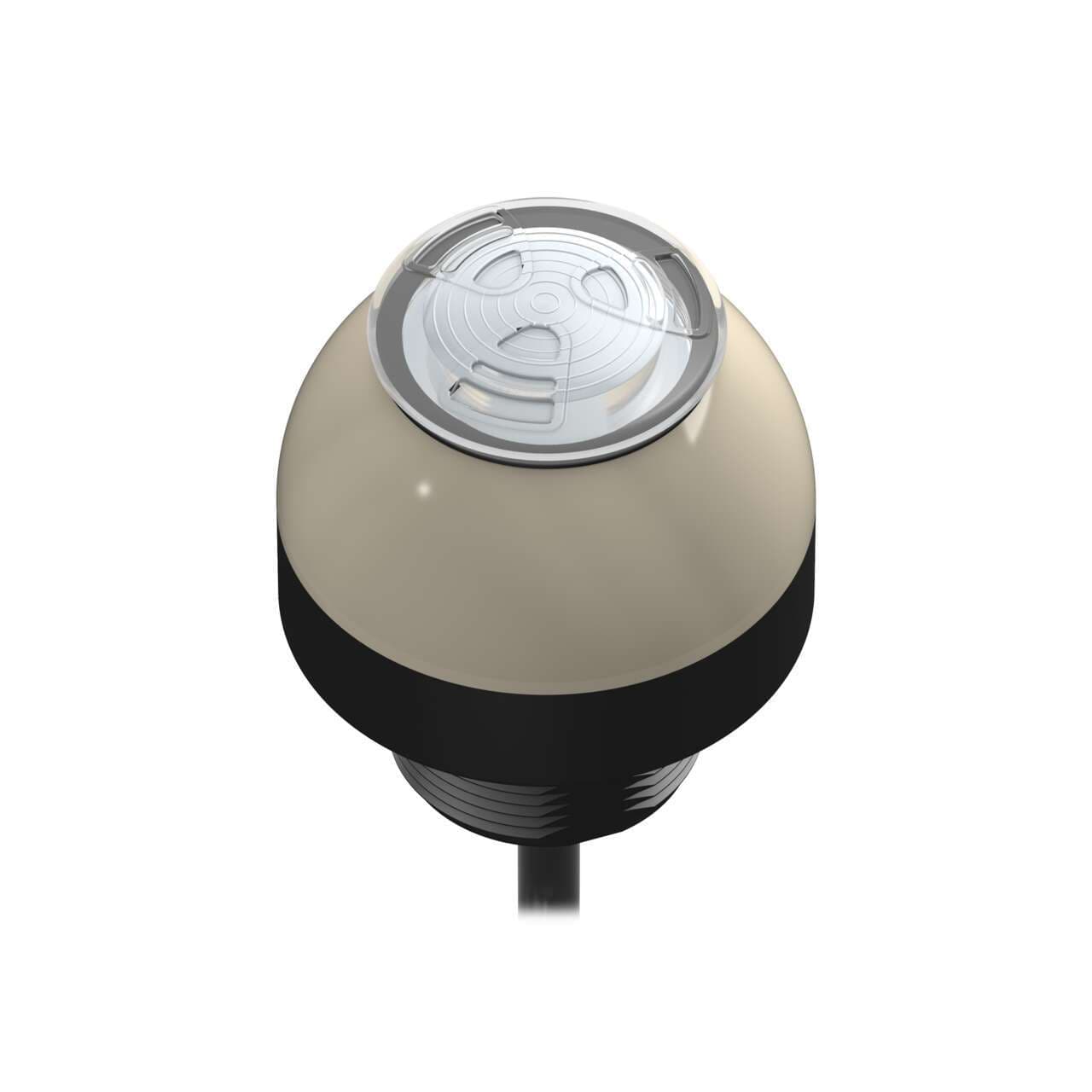

K50LGRASYN Banner Pick-to-Light Sensors

K50LGRASYN on Powermatic Associates
Banner
  • K50LGRASYN
  • K50LGRASYN

Part#:K50LGRASYN

Alt. Part#:94825

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 3-Color Sealed Audible Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Tone: Loud; Input: NPN; Colors: Green Red Yellow; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    231.33192 g
  • Country Of Origin
    US
  • IO Link
    No
  • Modbus RTU
    No
  • Feature: Audible
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Feature: Quick Disconnect
    No
  • Multi-Color Device
    Single Color On
  • Feature: Hazardous Area
    No
  • Feature: Chemical Resistant
    No
  • Feature: Washdown Rated
    Yes
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -20
  • Secondary Material
    Polycarbonate
  • Primary Housing Color
    Black
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 62.0
  • Environmental Rating
    IP67; IP69
  • Max Current - Audible Alarm (mA)
    35
  • Audible Operating Frequency (kHz)
    2.9
  • Max Input Response Time (ms)
    1
  • Min Audible Intensity (db at 1m)
    65
  • Input Type
    NPN
  • Max Audible Intensity (db at 1m)
    65
  • Audible Alarm Type
    Continuous
  • Supply Voltage
    12-30 V dc
  • Number of Input Pins/Conductors
    5
  • Max Current Color (mA)
    35
  • Animation Option 1
    Solid On
  • Color Option 3
    Yellow
  • Connection
    Cable
  • Color Option 2
    Red
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Number of Colors / Segments
    3
  • Product Size (mm)
    50
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Power Source
    DC
  • Indication
    Yes
  • Mounting Thread
    M30 x 1.5
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base Mount - Dome Window
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRASYN on Powermatic Associates is $176.00. Order now.

About the product

Banner Engineering K50LGRASYN is a sealed audible LED pilot light indicator from the EZ-LIGHT series. This part features a fixed tone 2-color G/R color pattern LED illumination housed in a black polycarbonate base with a dome-shaped diffused window, also made of polycarbonate. It is designed for easy connection, pre-equipped with a 5-pin M12 Euro-style QD connector. The K50LGRASYN operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and supports surface, base, or pole flush mounting with an M30 thread in a 30mm hole. The dome diameter is 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -20°C to +50°C. This part offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring durability in various environments. The current consumption is 35mA. It also features 2 x digital inputs for color control and 1 x digital input for alarm input, all supporting 12-30Vdc PNP.
