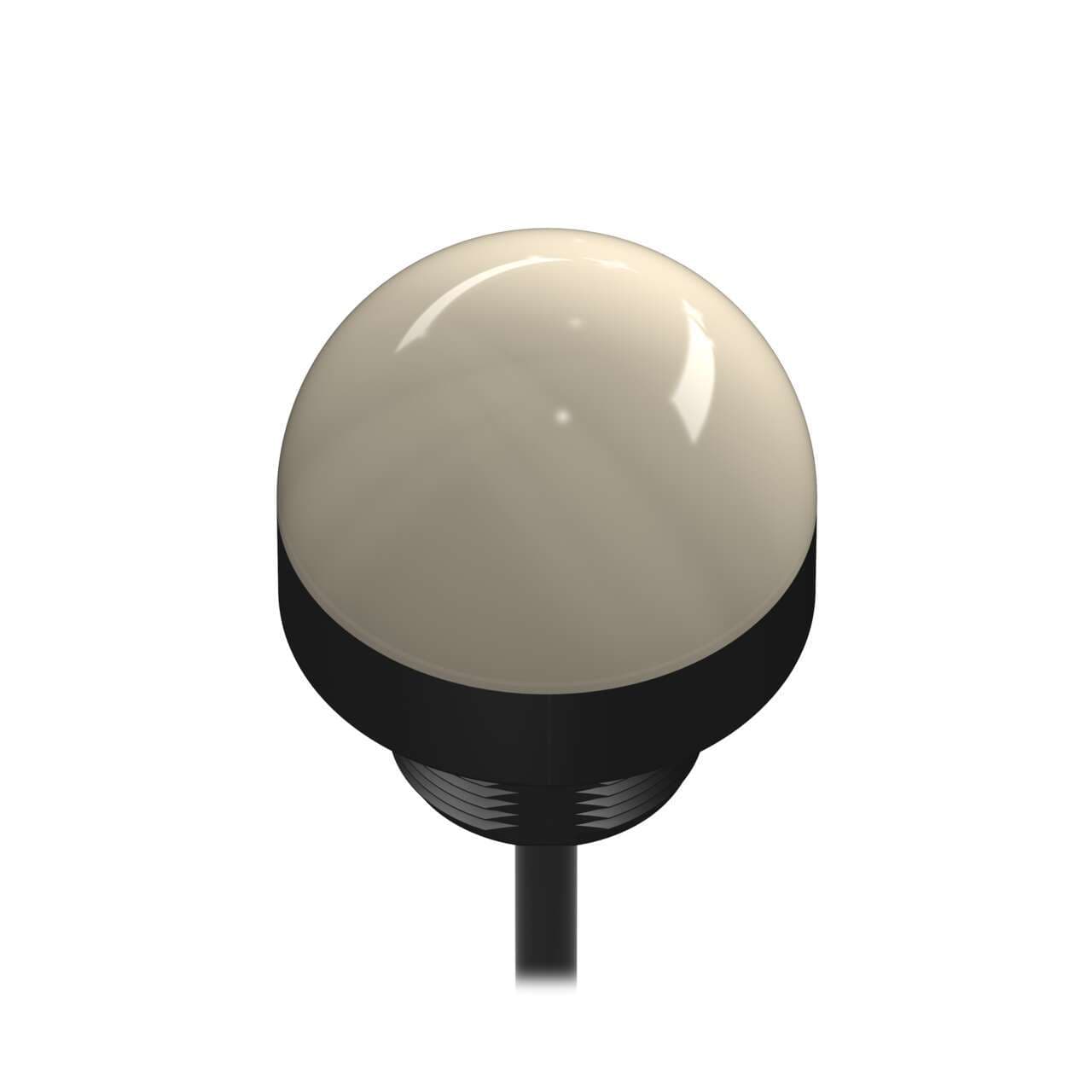

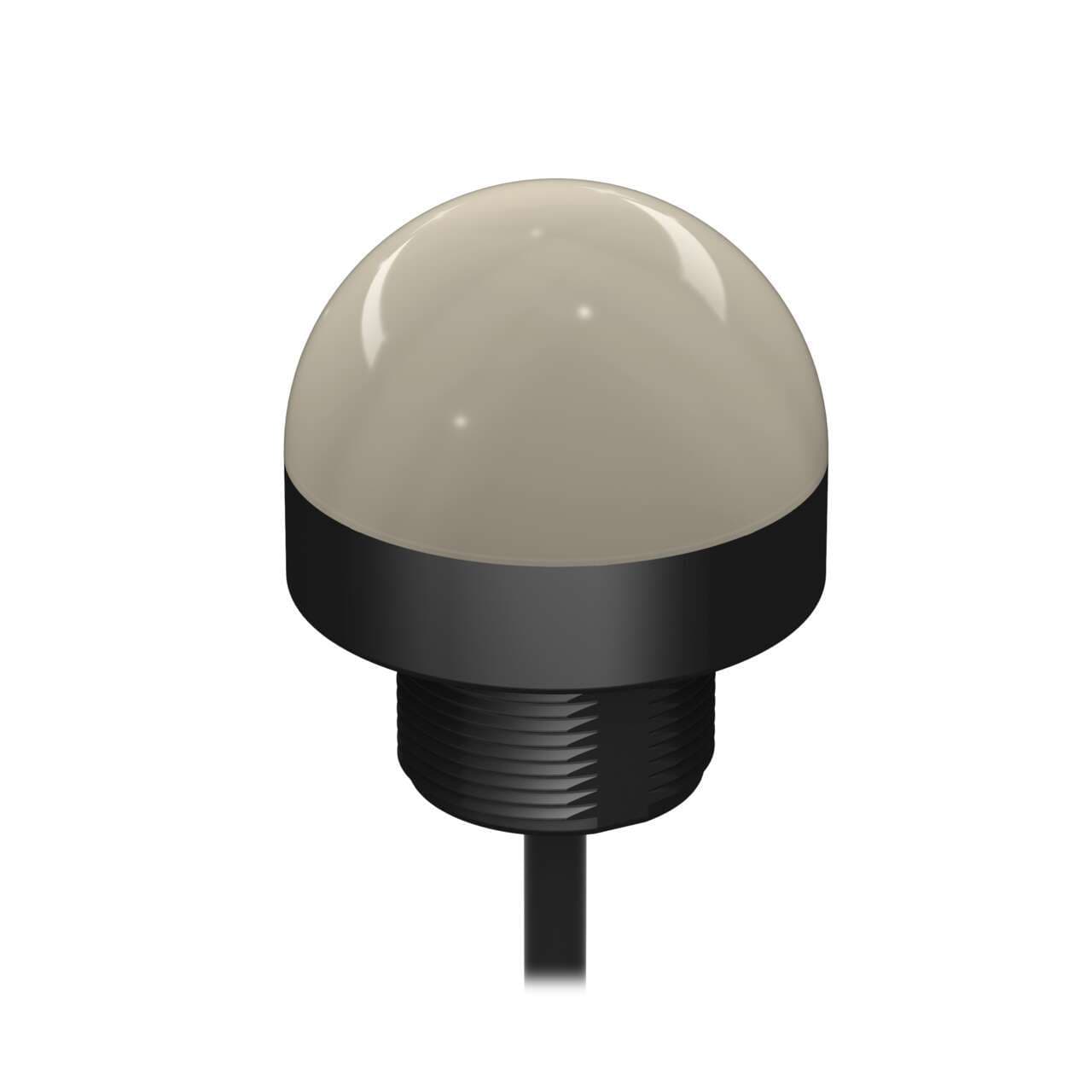

K50LGRBN Banner Pick-to-Light Sensors

K50LGRBN on Powermatic Associates
Banner
  • K50LGRBN
  • K50LGRBN

Part#:K50LGRBN

Alt. Part#:77612

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: NPN; Colors: Green Red Blue; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    224.074448 g
  • Country Of Origin
    US
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • Modbus RTU
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Feature: Washdown Rated
    Yes
  • Primary Housing Color
    Black
  • Primary Window Material
    Polycarbonate Diffused
  • Min Op. Temperature (°C)
    -40
  • Max Op. Temperature (°C)
    50
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 58.0
  • Max Input Response Time (ms)
    1
  • Input Type
    NPN
  • Number of Input Pins/Conductors
    4
  • Supply Voltage
    18-30 V dc
  • Color Option 2
    Red
  • Max Current Color (mA)
    40
  • Color Option 3
    Blue
  • Color Technology
    Standard LED
  • Color Option 1
    Green
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Indication
    Yes
  • Number of Colors / Segments
    3
  • Mounting Thread
    M30 x 1.5
  • Product Size (mm)
    50
  • Primary Housing Material
    Polycarbonate
  • Housing Style
    Base Mount - Dome Window
  • Power Source
    DC
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRBN on Powermatic Associates is $107.00. Order now.

About the product

Banner Engineering K50LGRBN, part of the EZ-LIGHT series, is a pilot light designed with a 3-color G/R/B color pattern LED illumination for clear visibility. This unit features a black housing with a dome-shaped window made from polycarbonate (PC) and a base of the same material, ensuring durability. It comes pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for easy installation. The K50LGRBN operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and can be mounted on a surface, base, or pole flush with a 30mm hole using an M30 thread. With a 50mm / 2" dome diameter, this pilot light is designed to operate in ambient air temperatures ranging from -40°C to +50 °C. It offers a high degree of protection with IP67 and IP69K ratings, consumes 40mA of current, and includes 3 x digital inputs (18-30Vdc; PNP) for color control.
