K50LGRBNQ Banner Pick-to-Light Sensors
Part#:K50LGRBNQ
Alt. Part#:18897
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: NPN; Colors: Green Red Blue; 4-pin M12 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Number of Colors / Segments 3
- Max Current Color (mA) 40
- Indication Yes
- Color Option 1 Green
- Supply Voltage 18-30 V dc
- Feature: Washdown Rated Yes
- Primary Housing Material Polycarbonate
- Color Option 2 Red
- Min Op. Temperature (°C) -40
- IO Link No
- Power DC
- Color Technology Standard LED
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Number of Input Pins/Conductors 4
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Housing Style Base Mount - Dome Window
- Animation Option 1 Solid On
- Input Type NPN
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Input Response Time (ms) 1
- Feature: Chemical Resistant No
- Power Source DC
- Connection Integral QD
- Color Option 3 Blue
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Feature: Audible No
- Product Size (mm) 50
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Max Op. Temperature (°C) 50
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRBNQ on Powermatic Associates is $107.00. Order now.
About the product

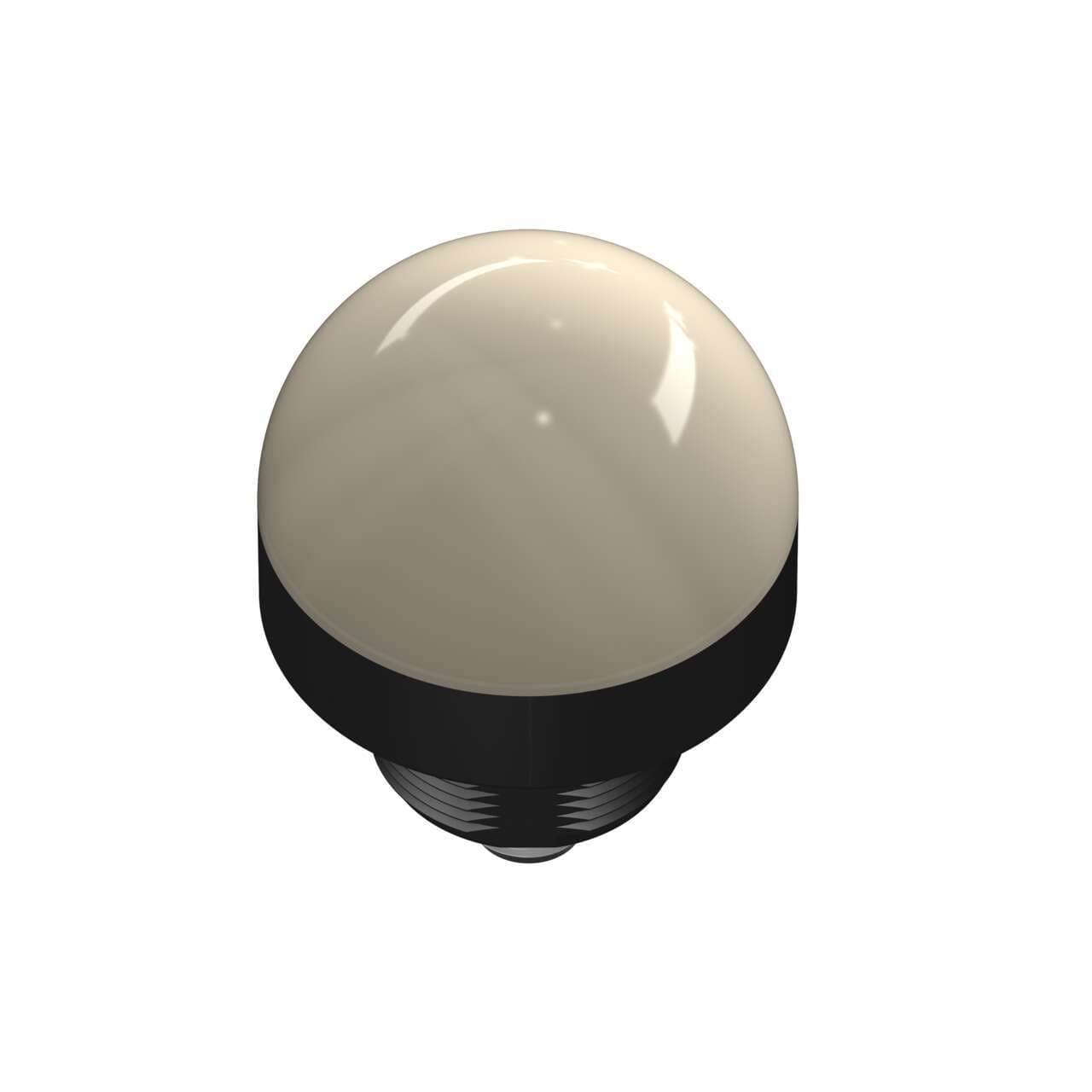

Banner Engineering K50LGRBNQ is a pilot light from the EZ-LIGHT series designed with a 3-color G/R/B color pattern LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 85Vac-130Vac, supporting nominal voltages of 100Vac, 110Vac, and 120Vac. The K50LGRBNQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The current consumption is 15mA, and it includes 3 x digital inputs (85-130Vac) for color control.
