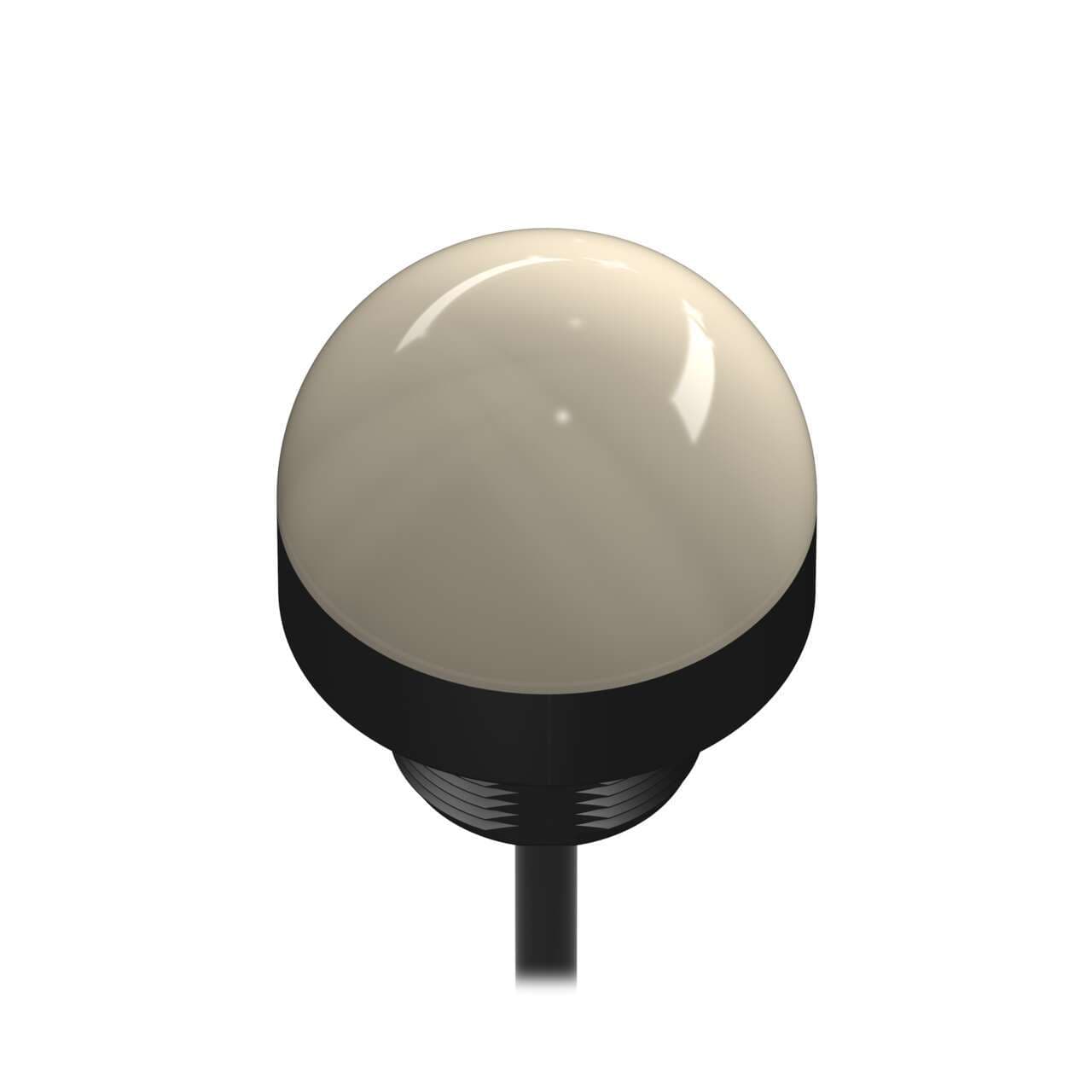

K50LGRX7P Banner Pick-to-Light Sensors

Name: K50LGRX7P
Brand: Banner
Price: 111 USD
Availability: BackOrder

Part#:K50LGRX7P

Alt. Part#:78983

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 2-Color Sensor Emulation Indi; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red; 2 m (6.5 ft) Integral Cable

Product Details

Weight
226.796 g
Country Of Origin
CN
IO Link
No
Modbus RTU
No
Pro-Editor Compatible (Discrete)
No
Wireless
No
Feature: Chemical Resistant
No
Application: Photoelectric Sensors
Yes
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Feature: Quick Disconnect
No
Multi-Color Device
Single Color On
Feature: Audible
No
Primary Window Material
Polycarbonate Diffused
Primary Housing Color
Black
Min Op. Temperature (°C)
-40
Input Type
PNP
Max Op. Temperature (°C)
50
Max Input Response Time (ms)
1
Environmental Rating
IP67; IP69

Physical Dimensions (LxWxH or DxH mm)

50.0 x 58.0

Number of Input Pins/Conductors

Connection

Cable

Supply Voltage

18-30 V dc

Animation Option 1

Solid On

Product Size (mm)

Color Technology

Standard LED

Color Option 1

Green

Max Current Color (mA)

Color Option 2

Red

Number of Colors / Segments

Mounting Thread

M30 x 1.5

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Indication

Yes

Power Source

Primary Housing Material

Polycarbonate

Cable Length (m)

0.15

Power

Housing Style

Base Mount - Dome Window

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRX7P on Powermatic Associates is $111.00. Order now.

About the product

Banner Engineering K50LGRX7P is a pilot light from the EZ-LIGHT series designed with a 3-color G/R/W color pattern LED illumination housed in a black casing. This part features a dome window shape made from polycarbonate (PC) with a diffused window and a polycarbonate (PC) base for durability. It is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for connectivity. The K50LGRX7P operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.) and can be mounted on a surface, base, or pole flush with a 30mm hole using an M30 thread. The dome diameter measures 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP67 and IP69K. The current consumption is 40mA, and it includes 3 x digital inputs (18-30Vdc; PNP) for color control.
