K50LGRXPQ Banner Pick-to-Light Sensors
Part#:K50LGRXPQ
Alt. Part#:76352
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description

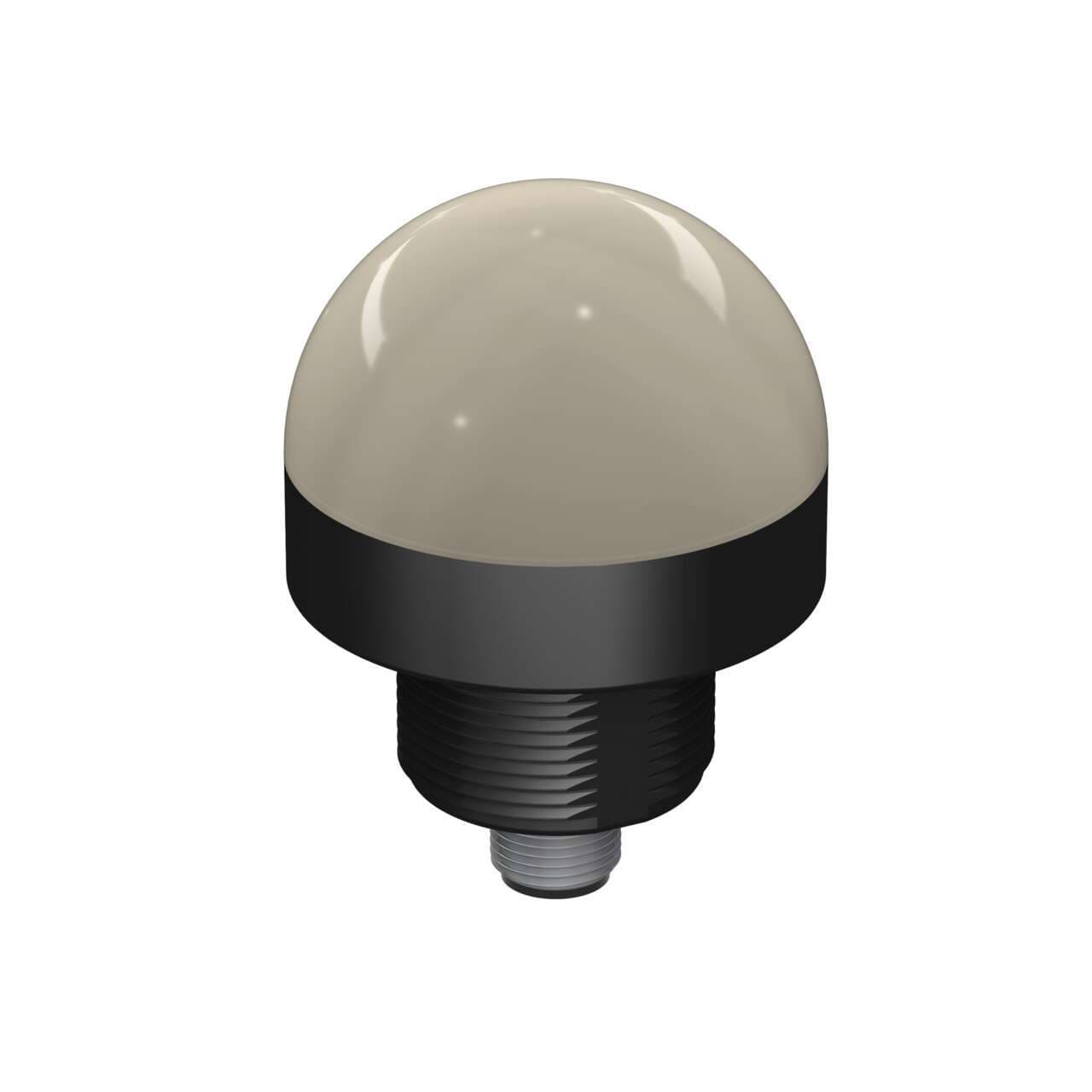

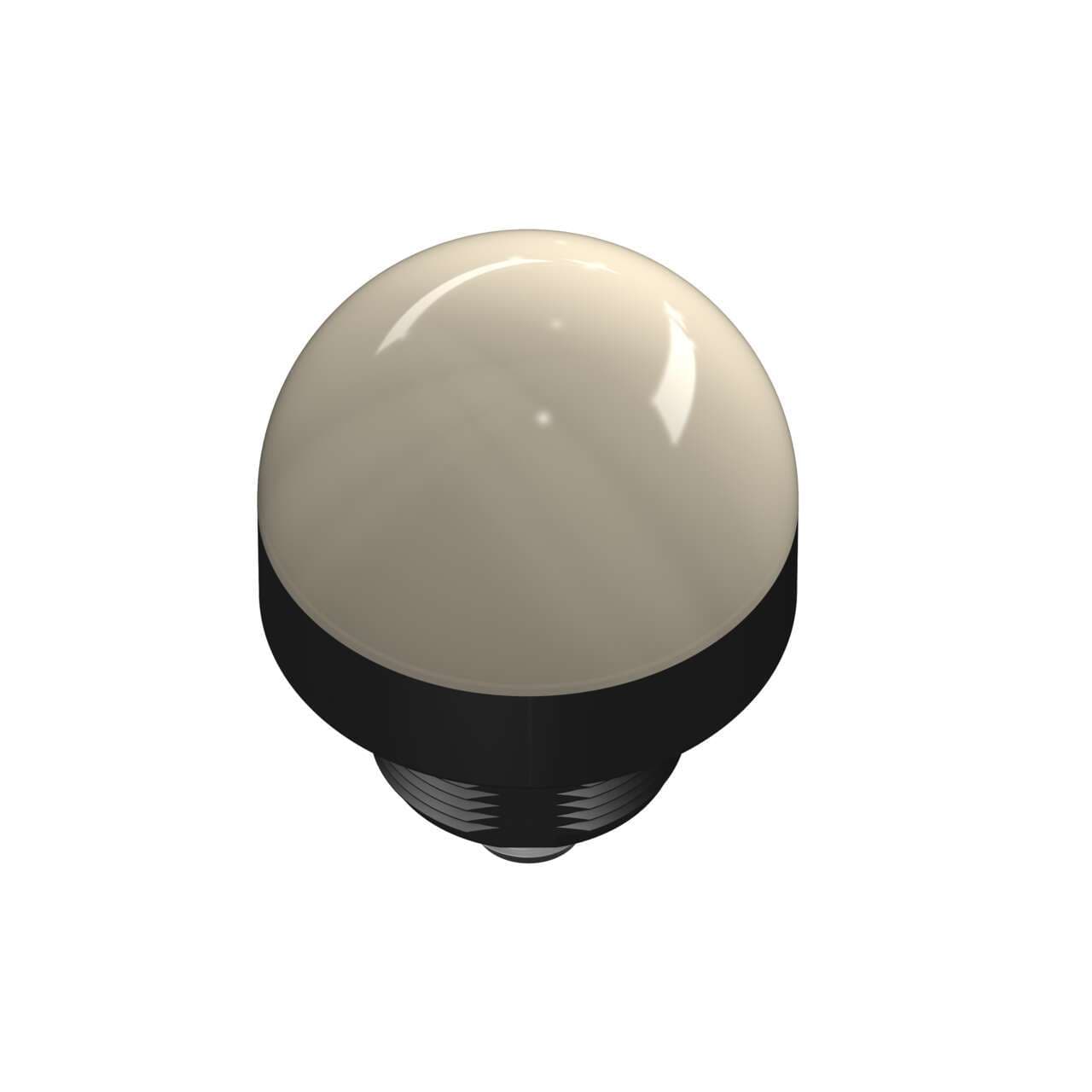

K50 Series EZ-LIGHT: 2-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red; 4-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin CN
- Product Size (mm) 50
- Power DC
- Max Current Color (mA) 40
- Min Op. Temperature (°C) -40
- Wireless No
- Supply Voltage 18-30 V dc
- Feature: Washdown Rated Yes
- Primary Housing Material Polycarbonate
- Indication Yes
- Color Option 2 Red
- Primary Window Material Polycarbonate Diffused
- Number of Colors / Segments 2
- Number of Input Pins/Conductors 4
- Feature: Hazardous Area No
- Color Option 1 Green
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Feature: Chemical Resistant No
- Environmental Rating IP67; IP69
- Feature: Audible No
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Input Type PNP
- IO Link No
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Max Input Response Time (ms) 1
- Pro-Editor Compatible (Discrete) No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Max Op. Temperature (°C) 50
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRXPQ on Powermatic Associates is $103.00. Order now.
About the product
Banner Engineering K50LGRXPQ is a pilot light from the EZ-LIGHT series designed with a 3-color multifunction G/R/Y color pattern LED illumination. This part features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. The supply voltage required is 18Vdc-30Vdc, with a nominal 24Vdc. For mounting, it offers options for surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter measures 50mm / 2 inches. It operates within an ambient air temperature range of -40°C to +50°C and boasts a degree of protection rated at IP67 and IP69K. The current consumption is 50mA, and it includes 3 x digital inputs (18-30Vdc; NPN) for color control.
