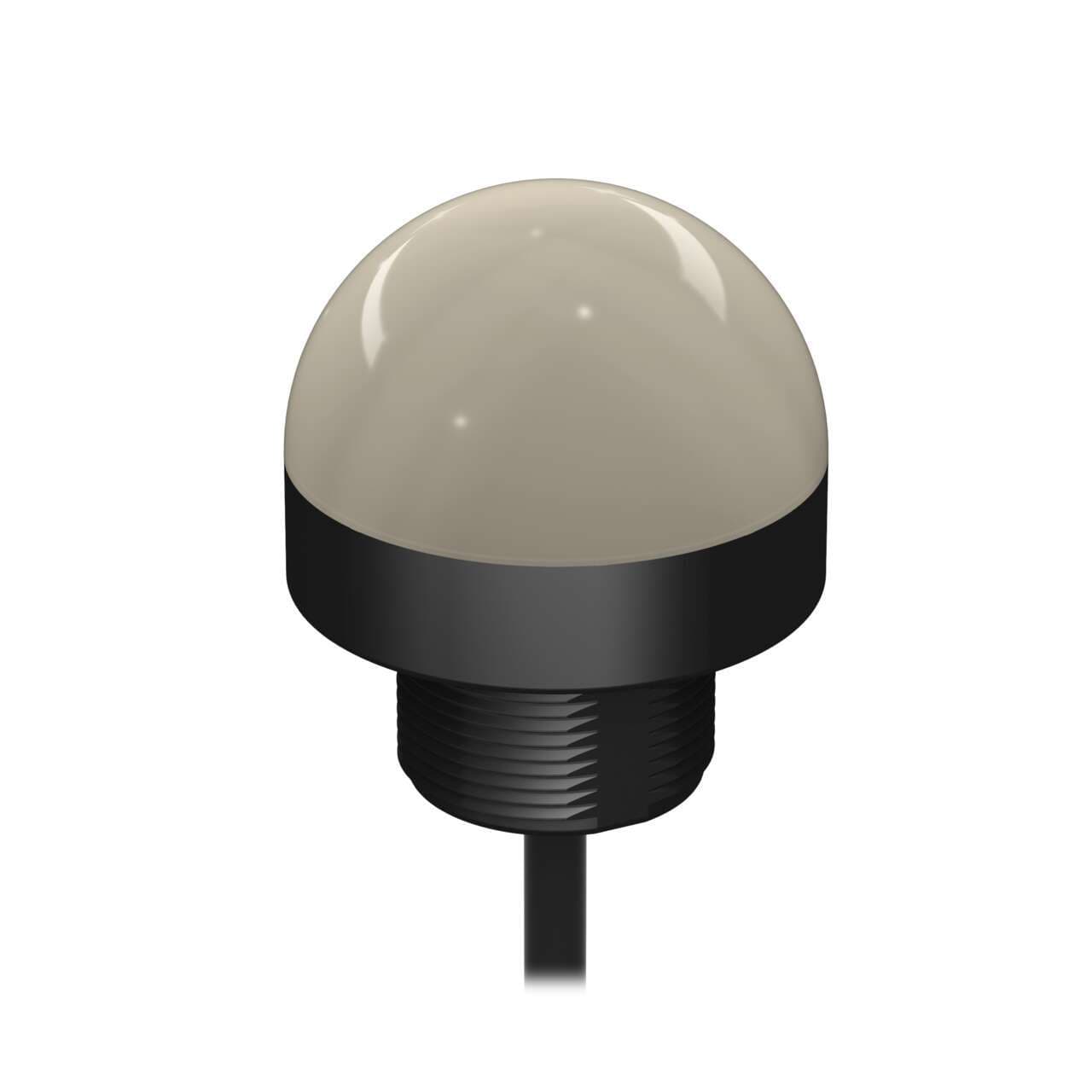

K50LGRYB4PQP Banner Pick-to-Light Sensors
Part#:K50LGRYB4PQP
Alt. Part#:81112
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 4-Color Multi-Function Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red Yellow Blue; 150 mm (6 in) PVC Pigtail QD
Product Details
- Weight 113.398 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Max Current Color (mA) 50
- Feature: Hazardous Area No
- Number of Colors / Segments 4
- Color Technology Standard LED
- Animation Option 3 Multiple
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
- Power DC
- Color Option 4 Blue
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 58.0
- Multi-Color Device Single Color On
- Housing Style Base Mount - Dome Window
- Animation Option 1 Multiple
- Number of Input Pins/Conductors 5
- Min Op. Temperature (°C) -40
- Power Source DC
- Color Option 1 Green
- Color Option 3 Yellow
- Max Input Response Time (ms) 250
- Feature: Chemical Resistant No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 50
- Animation Option 4 Multiple
- Max Op. Temperature (°C) 50
- IO Link No
- Cable Length (m) 0.15
- Color Option 2 Red
- Wire Selectable Function Multi-Function
- Feature: Audible No
- Wireless No
- Indication Yes
- Animation Option 2 Multiple
- Input Type PNP
- Primary Window Material Polycarbonate Diffused
- Primary Housing Material Polycarbonate
- Connection Pigtail QD
- Supply Voltage 18-30 V dc
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Feature: Quick Disconnect Yes
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRYB4PQP on Powermatic Associates is $137.00. Order now.
About the product
Banner Engineering K50LGRYB4PQP is a pilot light from the EZ-LIGHT series designed with a 4-color multifunction G/R/Y/B color pattern LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 18Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter measures 50mm / 2 inches. It operates within an ambient air temperature range of -40°C to +50 °C and boasts a degree of protection rated at IP67 and IP69K. The current consumption is 50mA, and it includes 4 x digital inputs (18-30Vdc; PNP) for color control.
