K50LGXYNQ Banner Pick-to-Light Sensors
Part#:K50LGXYNQ
Alt. Part#:76361
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: NPN; Colors: Green Yellow; 4-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Number of Colors / Segments 2
- Connection Integral QD
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Color Option 3 Yellow
- Feature: Quick Disconnect Yes
- Cable Length (m) 0.15
- Product Size (mm) 50
- Max Current Color (mA) 40
- Feature: Hazardous Area No
- Mounting Thread M30 x 1.5
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Multi-Color Device Single Color On
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Input Type NPN
- Primary Housing Color Black
- Feature: Washdown Rated Yes
- Power Source DC
- Color Option 1 Green
- Min Op. Temperature (°C) -40
- Primary Window Material Polycarbonate Diffused
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 18-30 V dc
- Feature: Audible No
- Housing Style Base Mount - Dome Window
- Max Input Response Time (ms) 1
- Environmental Rating IP67; IP69
- Wireless No
- Feature: Chemical Resistant No
- Power DC
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 4
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGXYNQ on Powermatic Associates is $116.00. Order now.
About the product

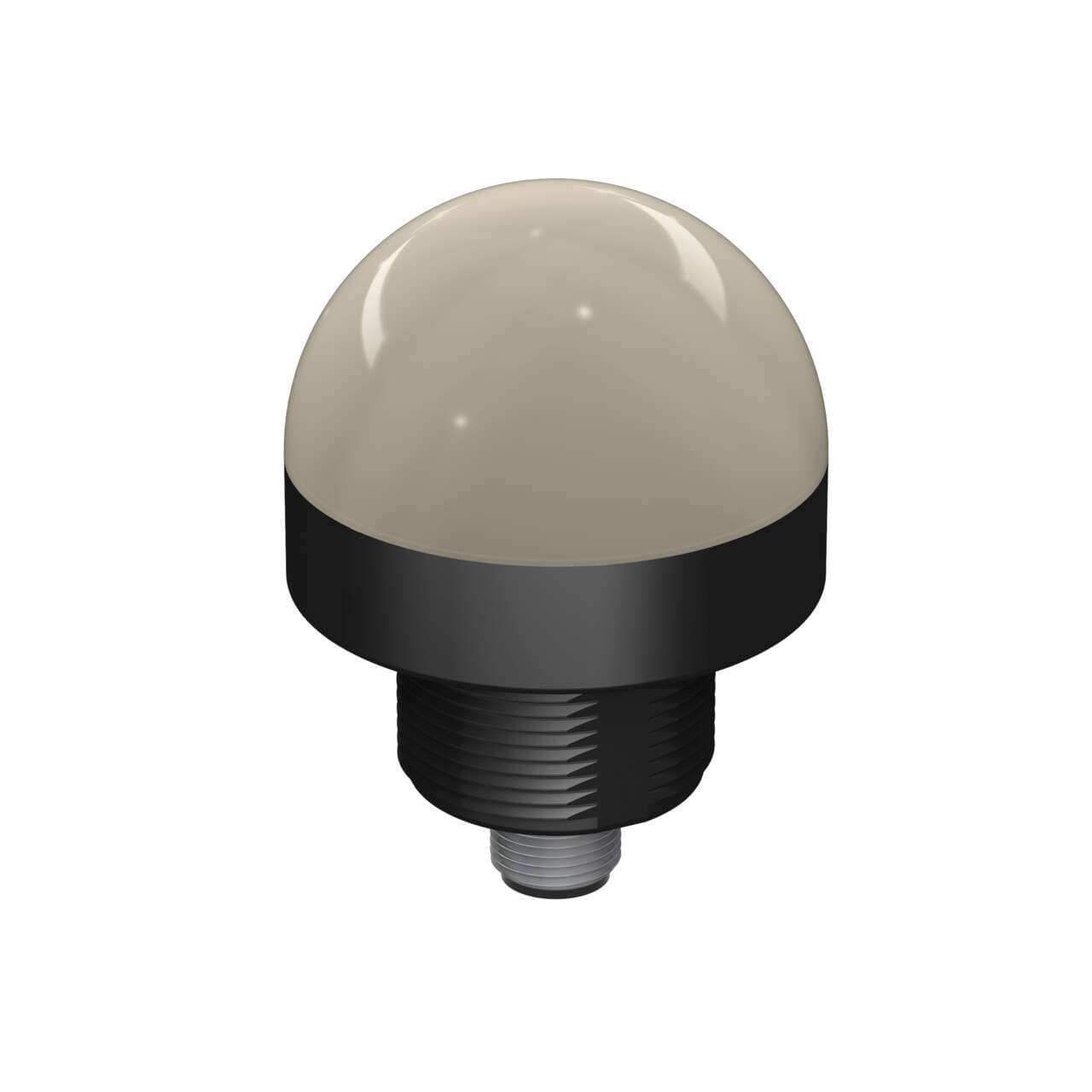

Banner Engineering K50LGXYNQ is a pilot light from the EZ-LIGHT series designed with a 2-color G/Y color pattern LED illumination. This part features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. It is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads for connectivity. The supply voltage required is 18Vdc-30Vdc (24Vdc nom.), and it supports a mounting mode of surface / base / pole flush with a 30mm hole M30 thread. The dome diameter is 50mm / 2", and it can operate in ambient air temperatures ranging from -40°C to +50°C. This part is rated with a degree of protection of IP67 and IP69K, has a current consumption of 40mA, and includes 2 x digital inputs (18-30Vdc; NPN) for color control.
