K50LGYALS4RPQ Banner Pick-to-Light Sensors
Part#:K50LGYALS4RPQ
Alt. Part#:95027
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description

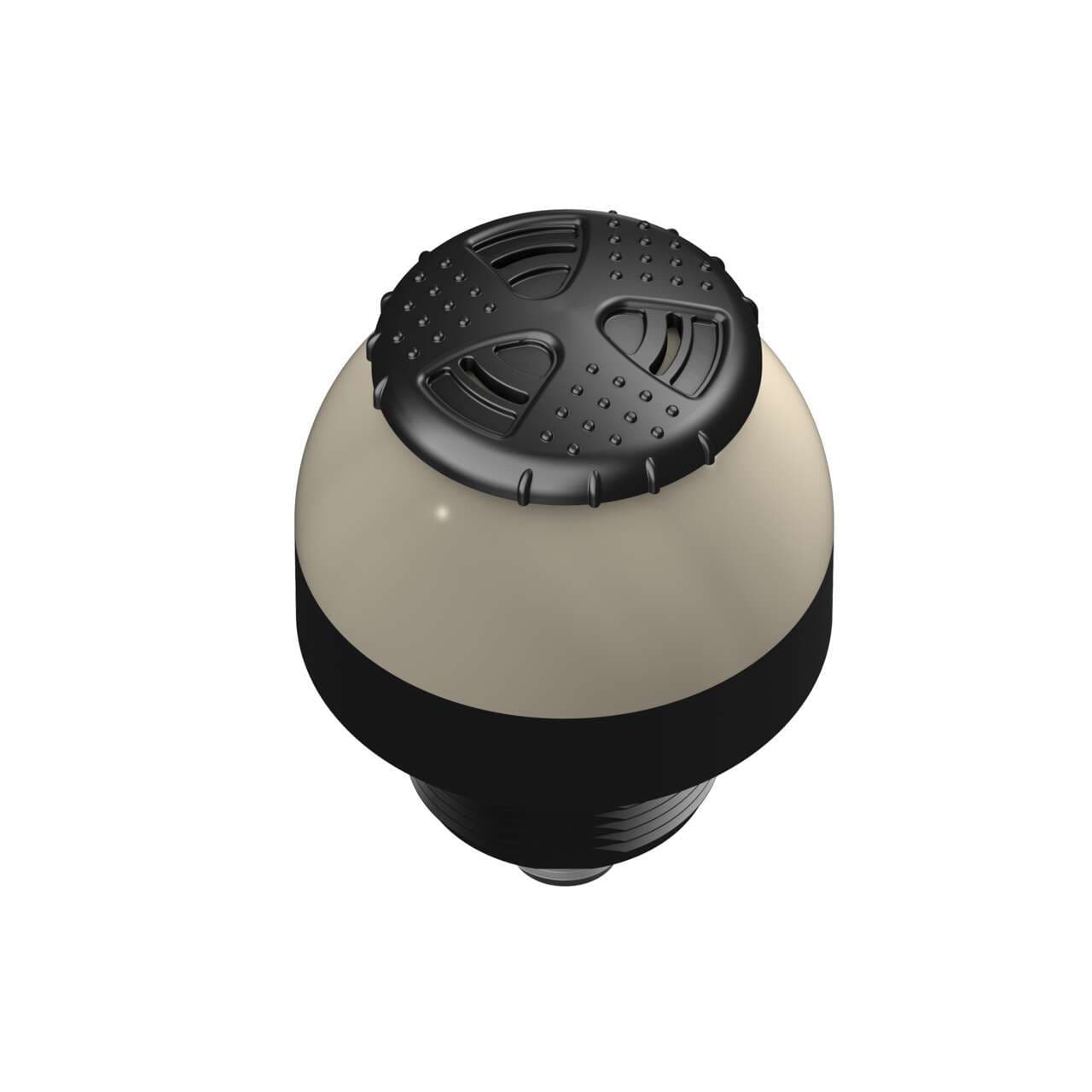

K50 Series EZ-LIGHT: 3-Color Staccato Audible Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Tone: Loud; Input: PNP; Colors: Green Yellow Red; 5-pin M12 Integral QD
Product Details
- Weight 181.4368 g
- Country Of Origin MX
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Audible Alarm Type Staccato
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) 50
- Max Current Color (mA) 35
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 73.0
- Feature: Hazardous Area No
- Indication Yes
- Animation Option 1 Solid On
- Input Type PNP
- Environmental Rating IP67
- Feature: Audible Yes
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Max Audible Intensity (db at 1m) 94
- Min Op. Temperature (°C) -20
- Feature: Quick Disconnect Yes
- Number of Colors / Segments 3
- Color Option 2 Yellow
- Max Input Response Time (ms) 1
- Primary Window Material Polycarbonate Diffused
- Power Source DC
- Color Option 1 Green
- Audible Operating Frequency (kHz) 2.9
- Primary Housing Color Black
- Wireless No
- Mounting Thread M30 x 1.5
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Housing Style Base Mount - Dome Window
- Quick Disconnect Type M12 (Euro)
- Min Audible Intensity (db at 1m) 70
- Secondary Material Thermoplastic
- IO Link No
- Power DC
- Color Technology Standard LED
- Number of Input Pins/Conductors 5
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Modbus RTU No
- Color Option 3 Red
- Max Current - Audible Alarm (mA) 35
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGYALS4RPQ on Powermatic Associates is $176.00. Order now.
About the product
Banner Engineering K50LGYALS4RPQ is a pilot light from the EZ-LIGHT series designed to serve as an LED pilot light indicator. This part features a 2-color G/Y color pattern LED illumination housed in a black casing. The dome window and base are made from polycarbonate (PC), ensuring durability. It is equipped with a 4-pin M12 Euro-style QD connector for connectivity. The supply voltage required for operation ranges from 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome has a diameter of 50mm (2 inches). This part can operate in ambient air temperatures ranging from -40°C to +50°C. It is rated with a degree of protection of IP67 and IP69K, making it suitable for harsh environments. The current consumption is 40mA, and it features 2 x digital inputs (18-30Vdc; PNP) for color control.
