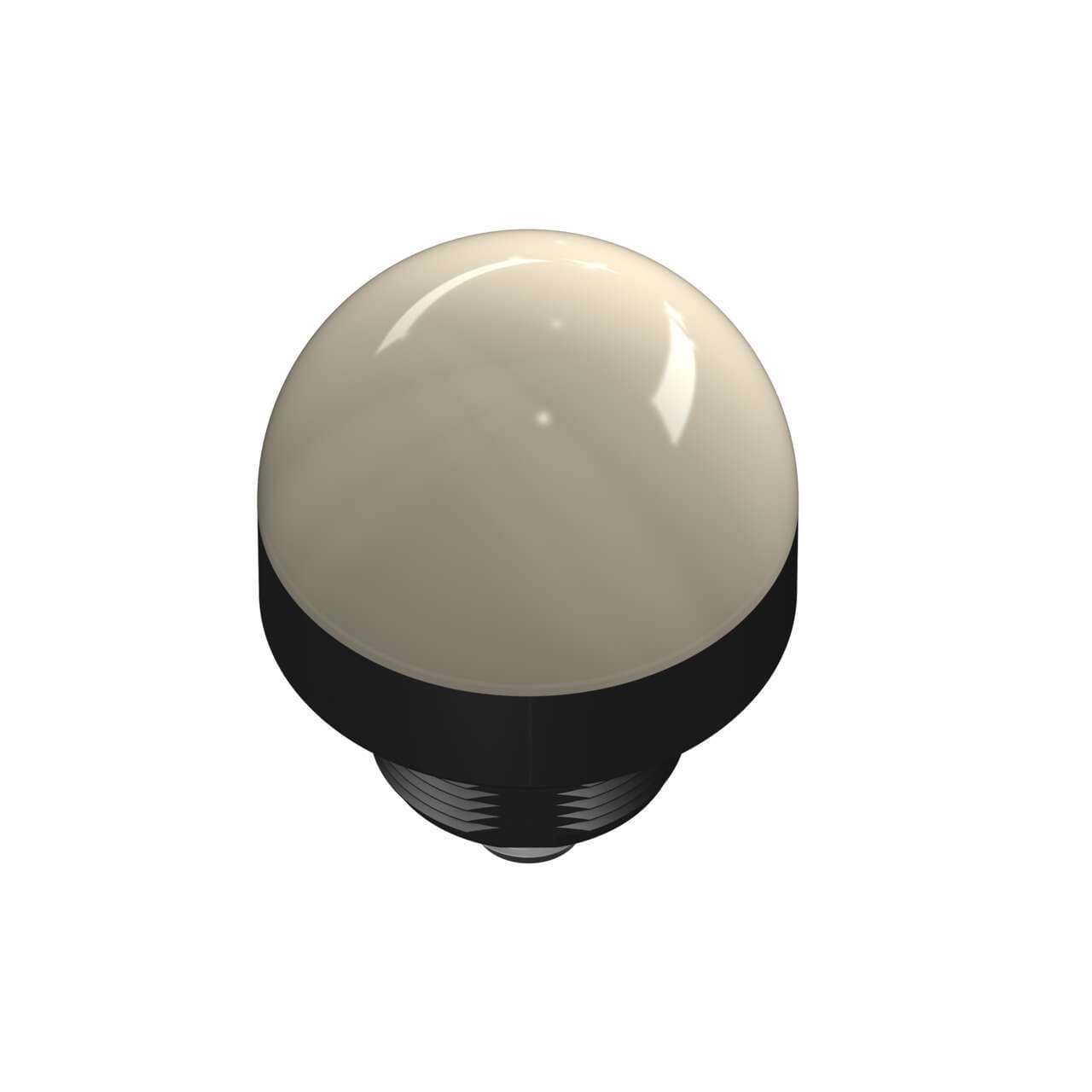

K50LIGRXPQ Banner Pick-to-Light Sensors
Part#:K50LIGRXPQ
Alt. Part#:28661
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50LI Series EZ-LIGHT: 2-Color Hazardous Area Indicator; Protection Type: Ex ia - Intrinsically Safe; Voltage: 8-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Green Red; 5-pin M12 Integral QD
Product Details
- Weight 154.22128 g
- Country Of Origin MX
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Input Type PNP
- Primary Housing Material Polycarbonate
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Power Source DC
- Color Option 2 Red
- Primary Housing Color Black
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Connection Integral QD
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Number of Colors / Segments 2
- Product Size (mm) 50
- Feature: Washdown Rated Yes
- Housing Style Base Mount - Dome Window
- Animation Option 1 Solid On
- Supply Voltage 8-30 V dc
- Primary Window Material Polycarbonate Diffused
- Cable Length (m) 0.15
- Color Technology Standard LED
- Feature: Hazardous Area Yes
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Color Option 1 Green
- Feature: Audible No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67; IP69
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LIGRXPQ on Powermatic Associates is $149.00. Order now.
About the product
Banner Engineering K50LIGRXPQ is an intrinsically-safe LED pilot light indicator from the EZ-LIGHT series designed for use in explosive atmospheres or hazardous areas, compliant with ATEX, IECEx, and Ex ia standards. It features a 3-color G/R/W color pattern LED illumination housed in a black, dome-shaped window made of diffused polycarbonate (PC) with a polycarbonate (PC) base. This pilot light is pre-wired with a 6-inch (15cm) pigtail that terminates with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage of 8Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and can be mounted on a surface, base, or pole flush using a 30mm hole with an M30 thread. The dome has a diameter of 50mm (2 inches), and it is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection of IP67 and IP69K and includes 3 digital inputs (8-30Vdc; PNP) for color control.
