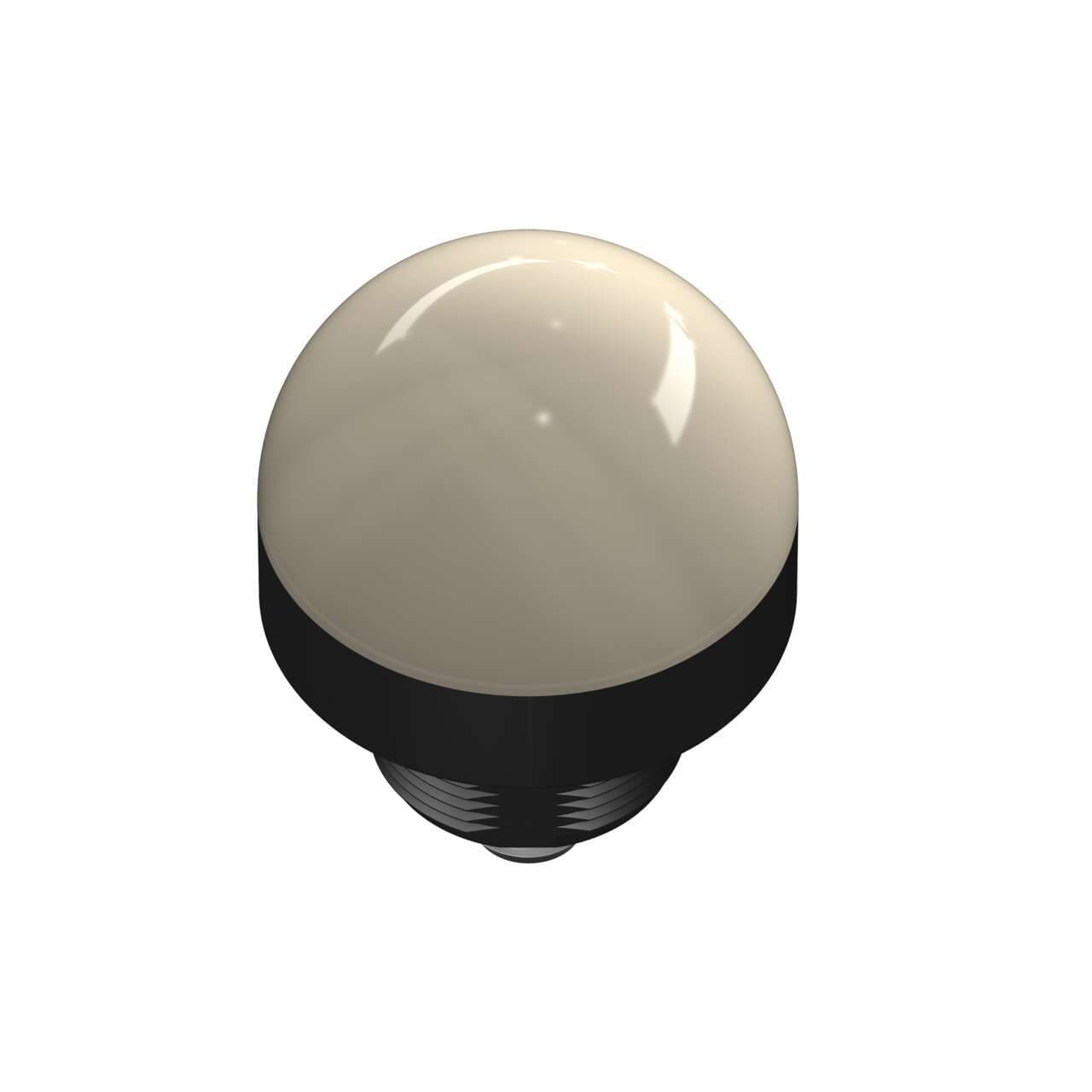

K50LNBXXPQ Banner Pick-to-Light Sensors
Part#:K50LNBXXPQ
Alt. Part#:87283
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50LN Series EZ-LIGHT: 1-Color Hazardous Area Indicator; Protection Type: Ex nA_Ex tc; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Blue; 5-pin M12 Integral QD
Product Details
- Weight 181.4368 g
- Country Of Origin MX
- Power Source DC
- Connection Integral QD
- Feature: Audible No
- Indication Yes
- Min Op. Temperature (°C) -40
- Number of Input Pins/Conductors 4
- Feature: Quick Disconnect Yes
- Cable Length (m) 0.15
- Supply Voltage 10-30 V dc
- Primary Housing Color Black
- IO Link No
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Product Size (mm) 50
- Feature: Hazardous Area Yes
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67; IP69
- Feature: Chemical Resistant No
- Number of Colors / Segments 1
- Max Current Color (mA) 25
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Housing Style Base Mount - Dome Window
- Color Option 1 Blue
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Power DC
- Color Technology Standard LED
- Input Type PNP
- Feature: Washdown Rated Yes
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LNBXXPQ on Powermatic Associates is $128.00. Order now.
About the product
Banner Engineering K50LNBXXPQ is a pilot light from the EZ-LIGHT series designed for hazardous areas, featuring LED pilot light indicator functionality. This part offers a 2-color G/R color pattern LED illumination within a black housing. The design includes a dome window shape with both the window and base made of polycarbonate (PC) material. It is pre-wired with a 2m / 6.5ft cable that terminates with bare end flying leads for connectivity. The supply voltage requirement ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It supports surface, base, or pole flush mounting with a 30mm hole and M30 thread, and has a 50mm / 2" dome diameter. The K50LNBXXPQ operates within an ambient air temperature range of -40°C to +50°C and boasts a degree of protection rated at IP67 and IP69K. Its current consumption is 25mA, and it features 2 x digital inputs (10-30Vdc; PNP) for color control.
