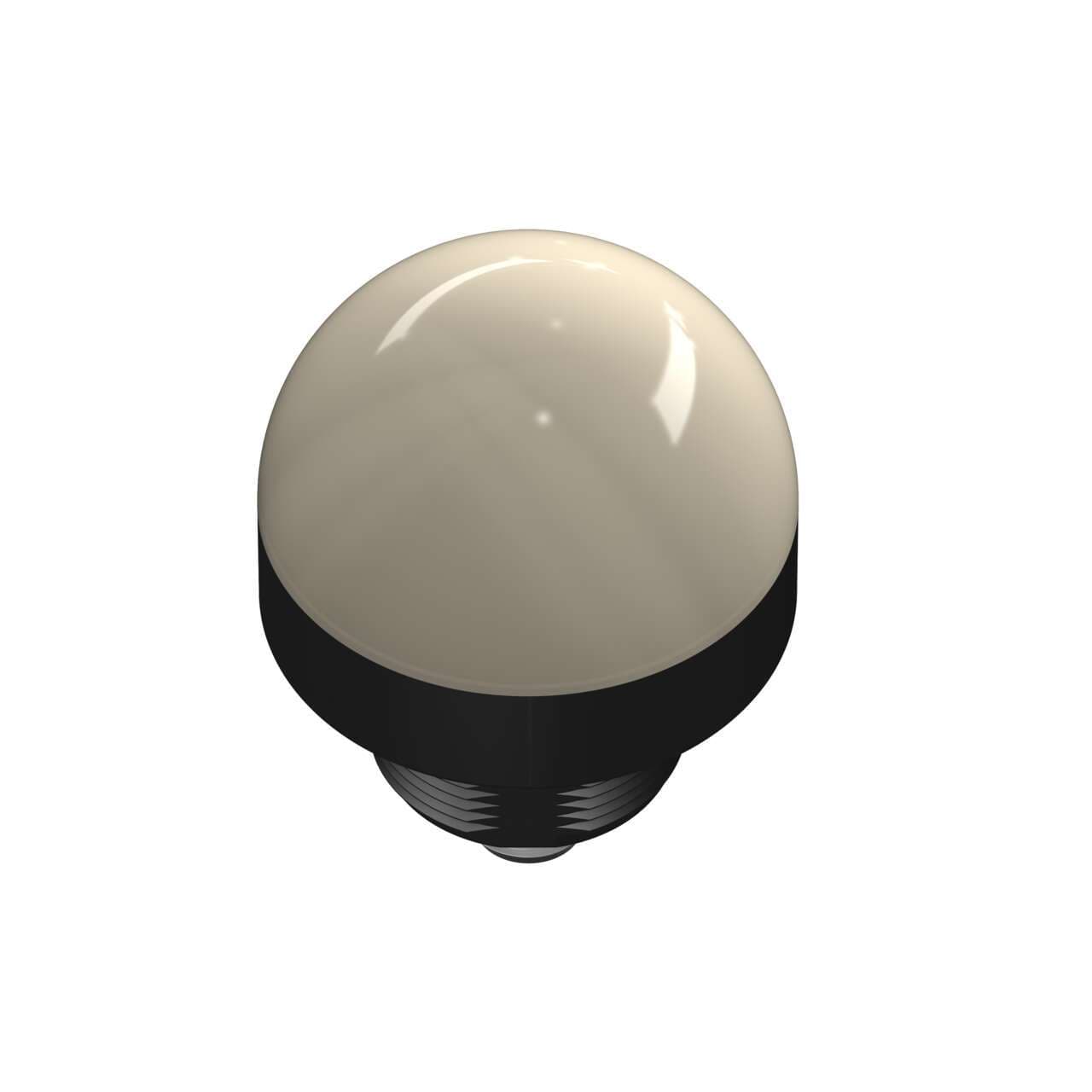

K50LNWXXPQ Banner Pick-to-Light Sensors
Part#:K50LNWXXPQ
Alt. Part#:87284
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50LN Series EZ-LIGHT: 1-Color Hazardous Area Indicator; Protection Type: Ex nA_Ex tc; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: White; 5-pin M12 Integral QD
Product Details
- Weight 154.22128 g
- Country Of Origin MX
- Housing Style Base Mount - Dome Window
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Power Source DC
- Animation Option 1 Solid On
- Environmental Rating IP67; IP69
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Feature: Audible No
- Number of Colors / Segments 1
- Feature: Chemical Resistant No
- Primary Housing Color Black
- Power DC
- Color Option 1 White
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 25
- Feature: Hazardous Area Yes
- Product Size (mm) 50
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Primary Housing Material Polycarbonate
- Connection Integral QD
- Min Op. Temperature (°C) -40
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Supply Voltage 10-30 V dc
- Primary Window Material Polycarbonate Diffused
- Cable Length (m) 0.15
- Color Technology Standard LED
- Input Type PNP
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LNWXXPQ on Powermatic Associates is $128.00. Order now.
About the product
Banner Engineering K50LNWXXPQ is a pilot light from the EZ-LIGHT series designed for hazardous areas, featuring a 1-color white LED illumination within a black housing. The design includes a dome-shaped window made from diffused polycarbonate (PC) and a base of the same material, ensuring durability and visibility in demanding environments. It comes pre-wired with a 2-meter (approximately 6.5 feet) cable that terminates with bare end flying leads for easy installation. The pilot light operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed for surface, base, or pole flush mounting using an M30 thread in a 30mm hole. The dome has a diameter of 50mm (2 inches), and the unit can operate in ambient air temperatures ranging from -40°C to +50°C. It boasts a high degree of protection with ratings of IP67 and IP69K, indicating a strong resistance to dust and water ingress. The current consumption is 25mA, and it features 1 x digital input (10-30Vdc; PNP) for color control.
