Powermatic Associates Logo

K50LRGYPQ Banner Pick-to-Light Sensors

K50LRGYPQ on Powermatic Associates
Banner
  • K50LRGYPQ
  • K50LRGYPQ

Part#:K50LRGYPQ

Alt. Part#:94480

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

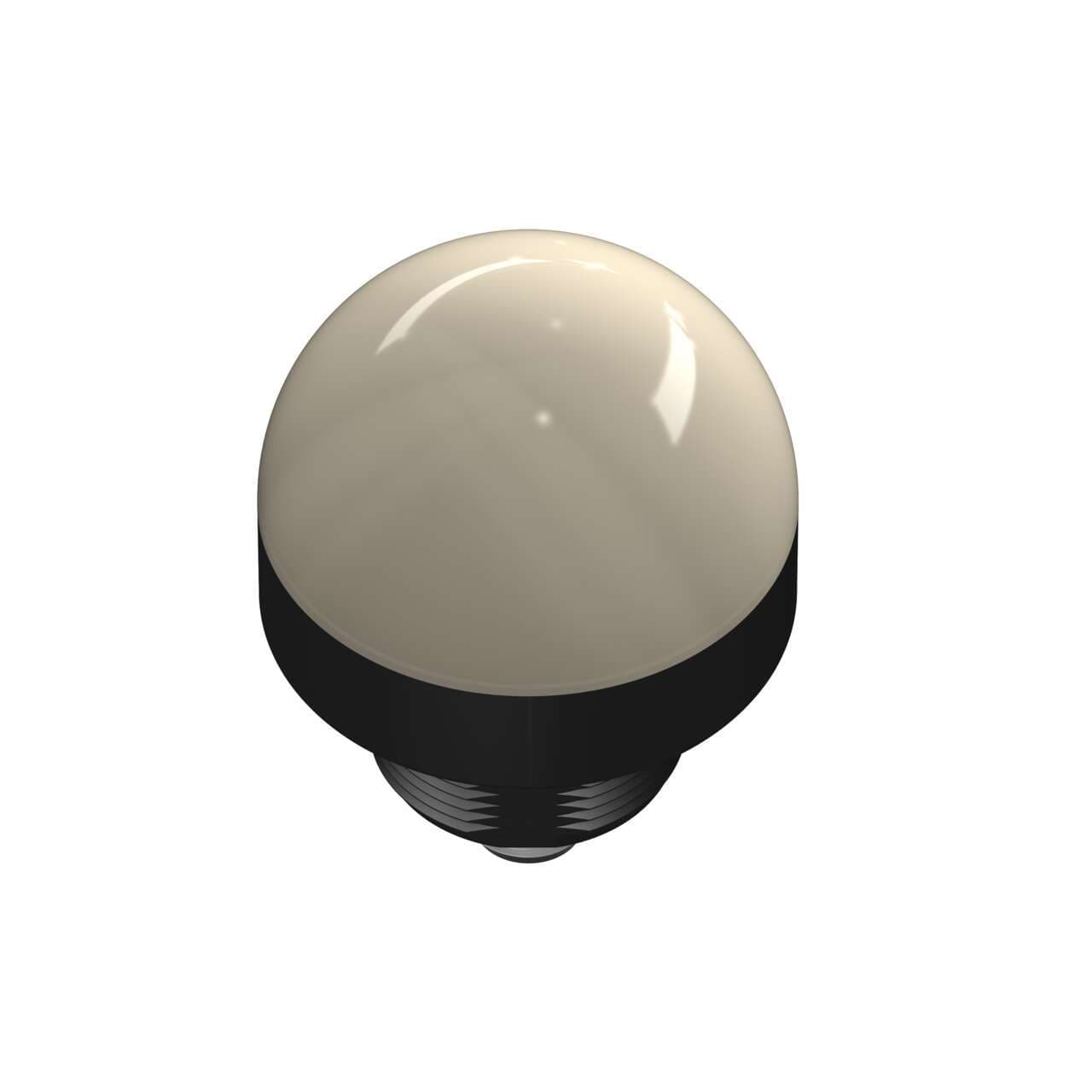

K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Red Green Yellow; 4-pin M12 Integral QD

Product Details

  • Weight
    136.0776 g
  • Country Of Origin
    MX
  • Indication
    Yes
  • Number of Input Pins/Conductors
    4
  • Feature: Washdown Rated
    Yes
  • Feature: Quick Disconnect
    Yes
  • Number of Colors / Segments
    3
  • Animation Option 1
    Solid On
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 69.0
  • Min Op. Temperature (°C)
    -40
  • Pro-Editor Compatible (Discrete)
    No
  • Product Size (mm)
    50
  • Color Option 1
    Red
  • Supply Voltage
    18-30 V dc
  • Feature: Hazardous Area
    No
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • Primary Window Material
    Polycarbonate Diffused
  • Wireless
    No
  • Mounting Thread
    M30 x 1.5
  • Max Current Color (mA)
    40
  • Environmental Rating
    IP67; IP69
  • IO Link
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Color Technology
    Standard LED
  • Input Type
    PNP
  • Feature: Audible
    No
  • Power Source
    DC
  • Color Option 3
    Yellow
  • Max Op. Temperature (°C)
    50
  • Multi-Color Device
    Single Color On
  • Housing Style
    Base Mount - Dome Window
  • Connection
    Integral QD
  • Max Input Response Time (ms)
    1
  • Feature: Chemical Resistant
    No
  • Color Option 2
    Green
  • Primary Housing Material
    Polycarbonate
  • Primary Housing Color
    Black
  • Modbus RTU
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LRGYPQ on Powermatic Associates is $107.00. Order now.

About the product

K50 Series EZ-LIGHT: 3-Color General Purpose Indicator, Voltage: 18-30 V dc; Housing: Polycarbonate; IP67, Input: PNP; Colors: Red Green Yellow, Euro 4-pin Integral Connector
