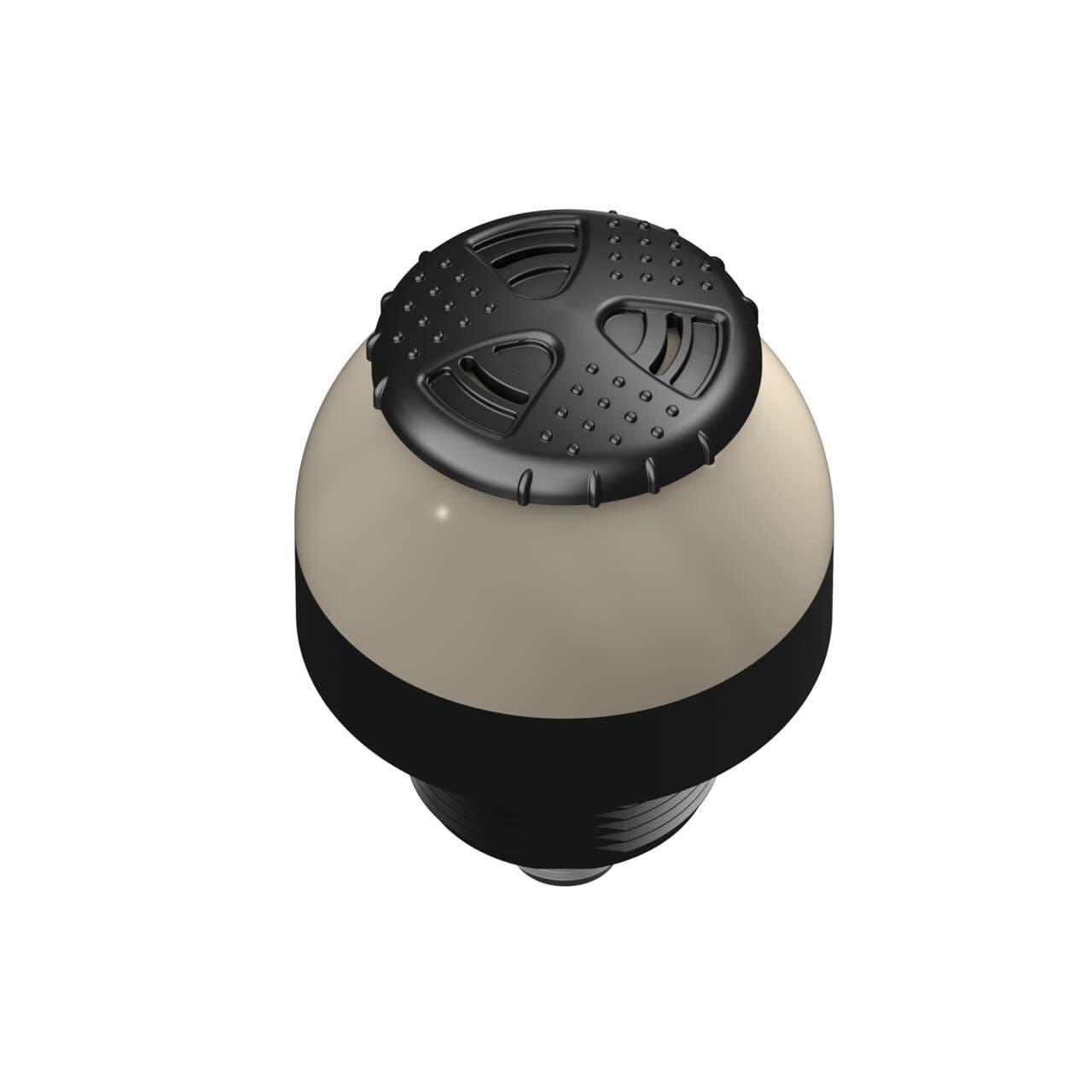

K50LRXALSXPQ Banner Pick-to-Light Sensors
Part#:K50LRXALSXPQ
Alt. Part#:85366
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 1-Color Sealed Loud Audible Indicator; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67; Tone: Loud; Input: PNP; Colors: Red; 5-pin M12 Integral QD
Product Details
- Weight 204.1164 g
- Country Of Origin MX
- Color Technology Standard LED
- Power DC
- Max Audible Intensity (db at 1m) 94
- Min Op. Temperature (°C) -20
- Pro-Editor Compatible (Discrete) No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Max Current - Audible Alarm (mA) 35
- Product Size (mm) 50
- Supply Voltage 12-30 V dc
- Environmental Rating IP67
- IO Link No
- Power Source DC
- Audible Alarm Type Continuous
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 73.0
- Secondary Material Thermoplastic
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Max Input Response Time (ms) 1
- Max Op. Temperature (°C) 50
- Wireless No
- Number of Colors / Segments 1
- Number of Input Pins/Conductors 5
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Chemical Resistant No
- Mounting Thread M30 x 1.5
- Min Audible Intensity (db at 1m) 70
- Primary Window Material Polycarbonate Diffused
- Housing Style Base Mount - Dome Window
- Connection Integral QD
- Audible Operating Frequency (kHz) 2.9
- Primary Housing Color Black
- Modbus RTU No
- Indication Yes
- Color Option 1 Red
- Input Type PNP
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Multi-Color Device Single Color On
- Max Current Color (mA) 35
- Feature: Hazardous Area No
- Feature: Audible Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LRXALSXPQ on Powermatic Associates is $155.00. Order now.
About the product
Banner Engineering K50LRXALSXPQ, part of the EZ-LIGHT series, is a pilot light featuring an adjustable audible sealed LED indicator. This component is designed with continuous loud sound and 1-color Red LED illumination, encased in a black housing with a dome window shape. The window and base are made from polycarbonate (PC), ensuring durability. It comes pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for connectivity. The supply voltage requirement is 12Vdc-30Vdc (24Vdc nom.), and it supports surface, base, or pole flush mounting with an M30 thread in a 50mm / 2" dome diameter. The K50LRXALSXPQ operates within an ambient air temperature range of -20°C to +50 °C and boasts a degree of protection rated at IP67, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It has a current consumption of 35mA and includes 1 x digital input (12-30Vdc; NPN) for color control and 1 x digital input (12-30Vdc; NPN) for alarm input.
