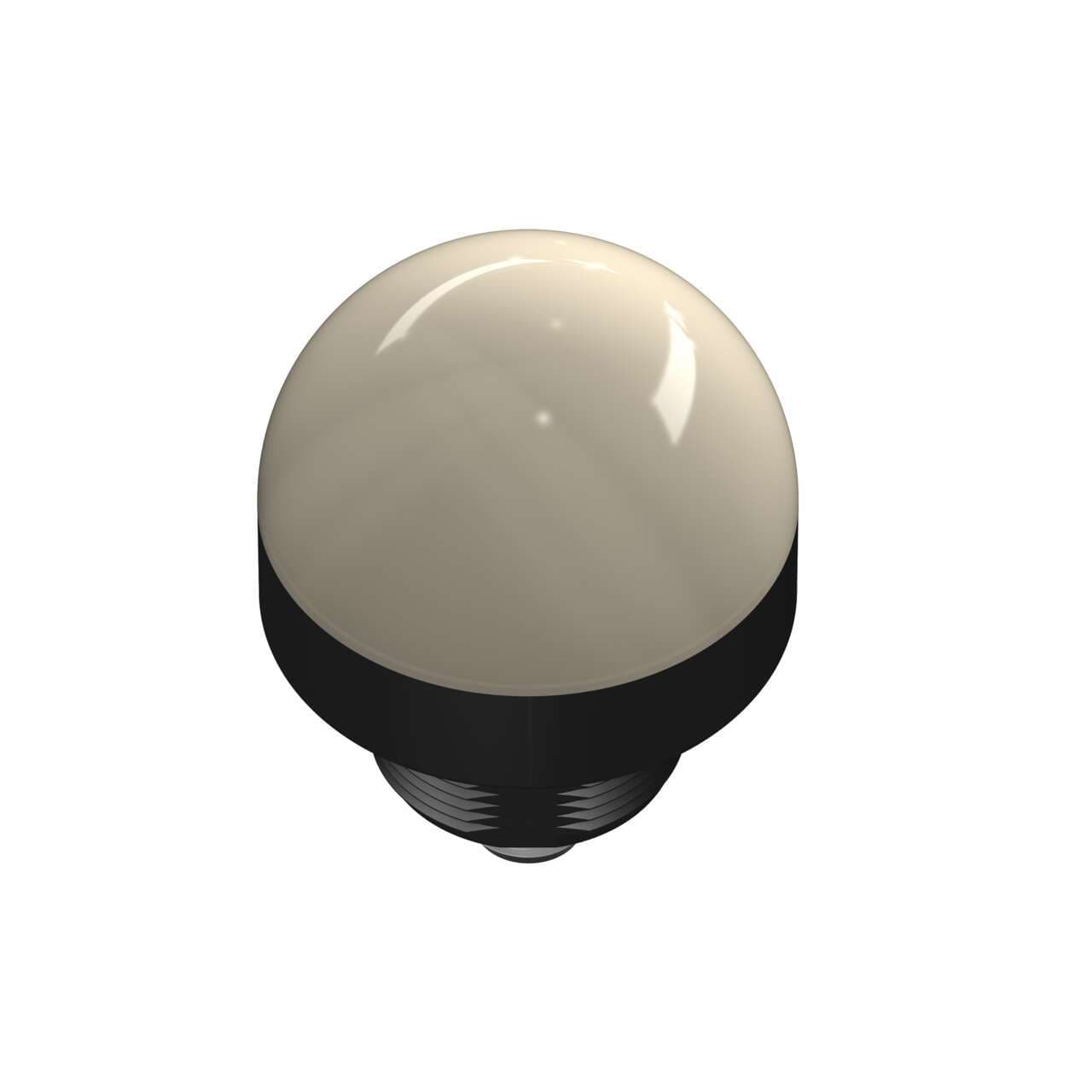

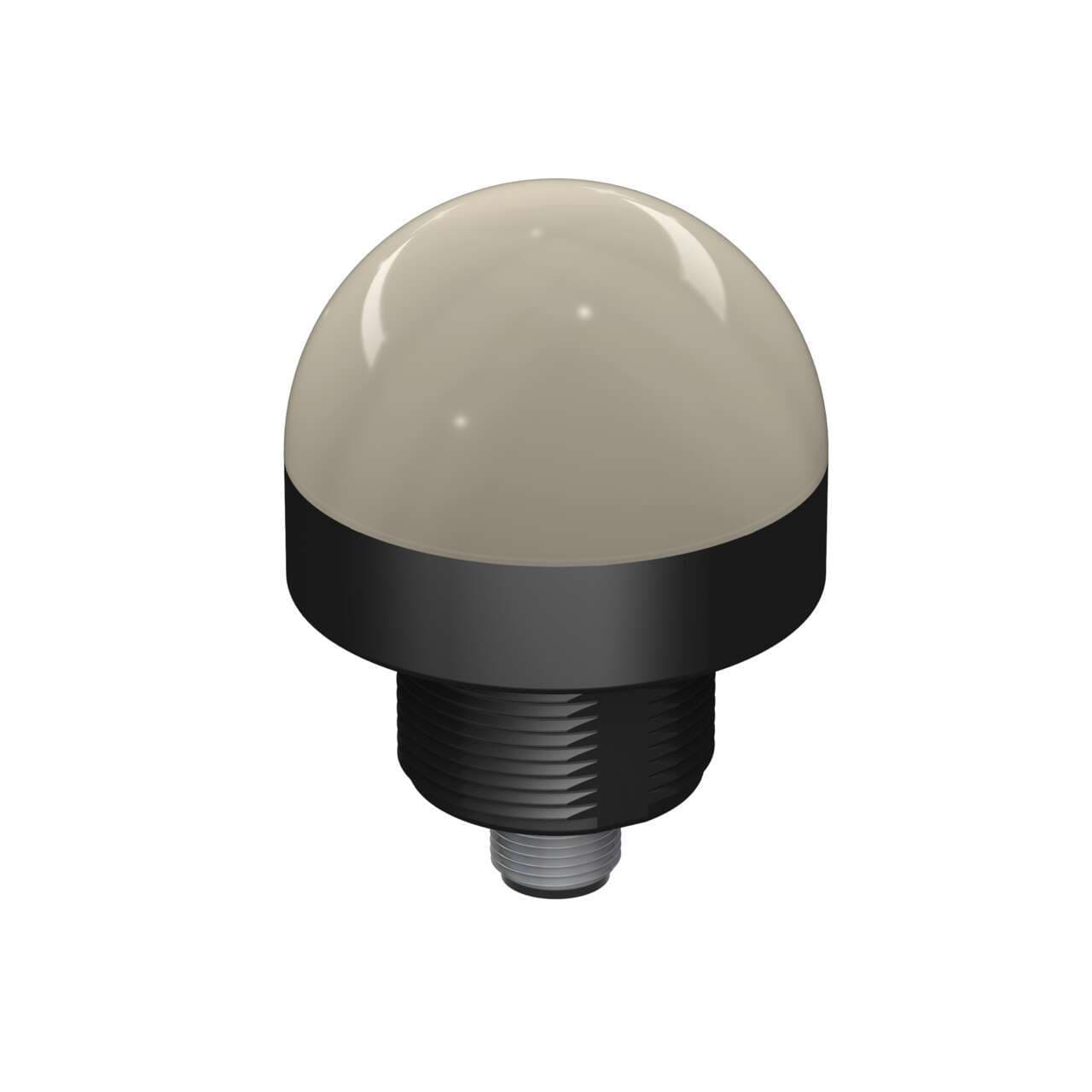

K50LXRYPQ Banner Pick-to-Light Sensors
Part#:K50LXRYPQ
Alt. Part#:76364
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 2-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Red Yellow; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Cable Length (m) 0.15
- Product Size (mm) 50
- Color Option 3 Yellow
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Wireless No
- Housing Style Base Mount - Dome Window
- Color Option 2 Red
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 4
- Feature: Audible No
- Modbus RTU No
- Power DC
- Color Technology Standard LED
- Max Input Response Time (ms) 1
- Feature: Washdown Rated Yes
- Number of Colors / Segments 2
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Power Source DC
- Supply Voltage 18-30 V dc
- Feature: Hazardous Area No
- Mounting Thread M30 x 1.5
- Input Type PNP
- Primary Housing Color Black
- Feature: Quick Disconnect Yes
- Primary Housing Material Polycarbonate
- Max Current Color (mA) 40
- Environmental Rating IP67; IP69
- IO Link No
- Indication Yes
- Connection Integral QD
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LXRYPQ on Powermatic Associates is $107.00. Order now.
About the product
Banner Engineering K50LXRYPQ is a pilot light from the EZ-LIGHT series designed with a 2-color R/Y color pattern LED illumination. It features a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 4-wire cable terminated with bare end flying leads, supporting a supply voltage range of 18Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome diameter is 50mm / 2", and it operates within an ambient air temperature range of -40°C to +50 °C. The K50LXRYPQ is designed to withstand harsh environments with a degree of protection rated at IP67 and IP69K. It has a current consumption of 40mA and includes 2 x digital inputs (18-30Vdc; PNP) for color control.
