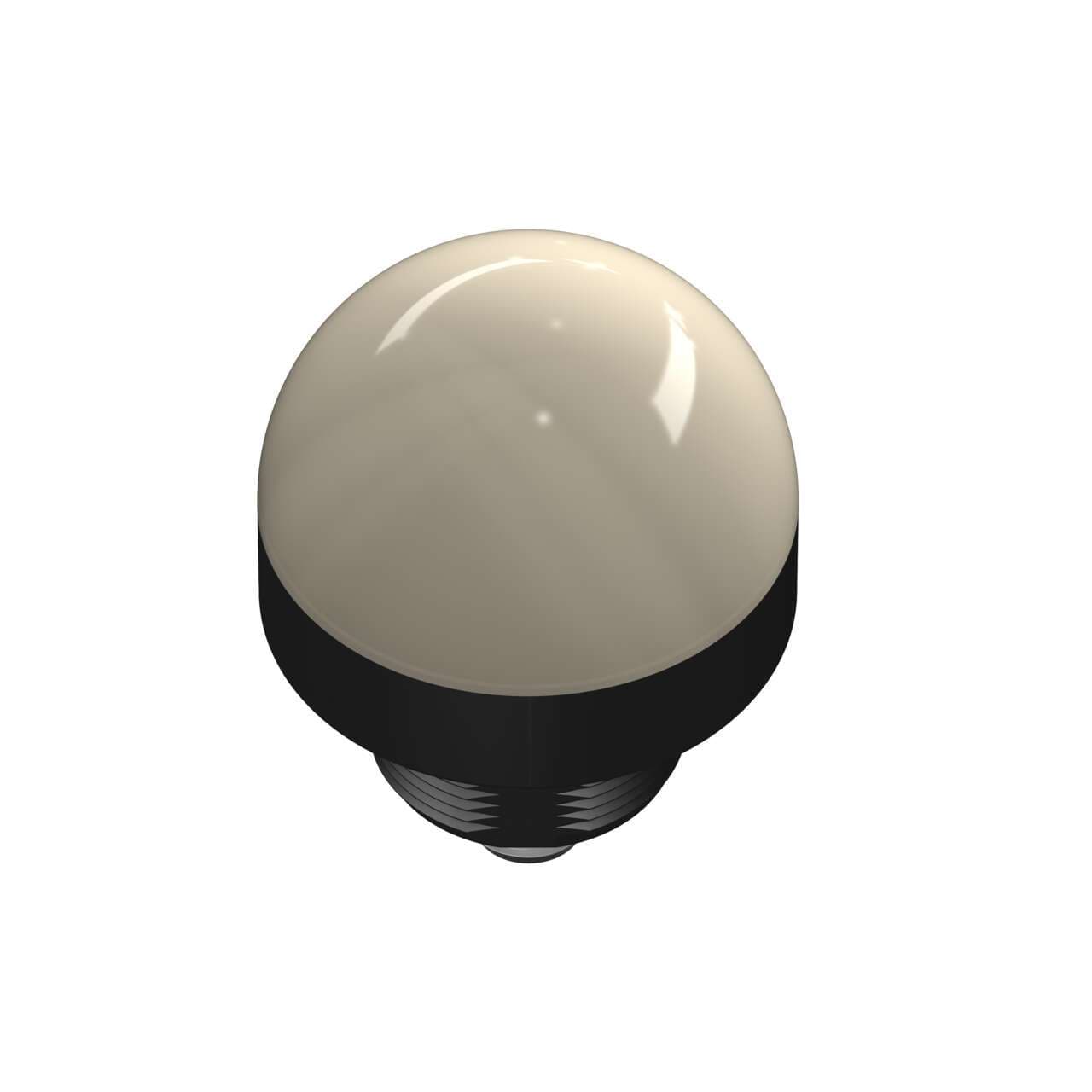

K50LXXWPQ Banner Pick-to-Light Sensors
Part#:K50LXXWPQ
Alt. Part#:77567
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 1-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: White; 5-pin M12 Integral QD
Product Details
- Weight 136.0776 g
- Country Of Origin MX
- Product Size (mm) 50
- Connection Integral QD
- Primary Housing Color Black
- Wireless No
- Power Source DC
- Max Input Response Time (ms) 1
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Max Current Color (mA) 40
- Environmental Rating IP67; IP69
- Feature: Quick Disconnect Yes
- Primary Housing Material Polycarbonate
- Color Option 3 White
- Primary Window Material Polycarbonate Diffused
- Modbus RTU No
- Number of Colors / Segments 1
- Supply Voltage 18-30 V dc
- Feature: Audible No
- Power DC
- Mounting Thread M30 x 1.5
- Input Type PNP
- Feature: Chemical Resistant No
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Input Pins/Conductors 4
- Min Op. Temperature (°C) -40
- IO Link No
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LXXWPQ on Powermatic Associates is $107.00. Order now.
About the product
Banner Engineering K50LXXWPQ is a pilot light from the EZ-LIGHT series designed to serve as an audible LED pilot light indicator. It features a pulsed sound with 1-color orange flashing LED illumination, encased in a black housing with a dome window shape. The window and base are made from polycarbonate (PC), ensuring durability. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50LXXWPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread, and has a 50mm / 2" dome diameter. It is designed to operate in ambient air temperatures ranging from -20°C to +50°C. The part boasts a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, with a current consumption of 40mA. It also features 1 x digital input for color control and 1 x digital input for alarm input, both supporting 18-30Vdc PNP.
