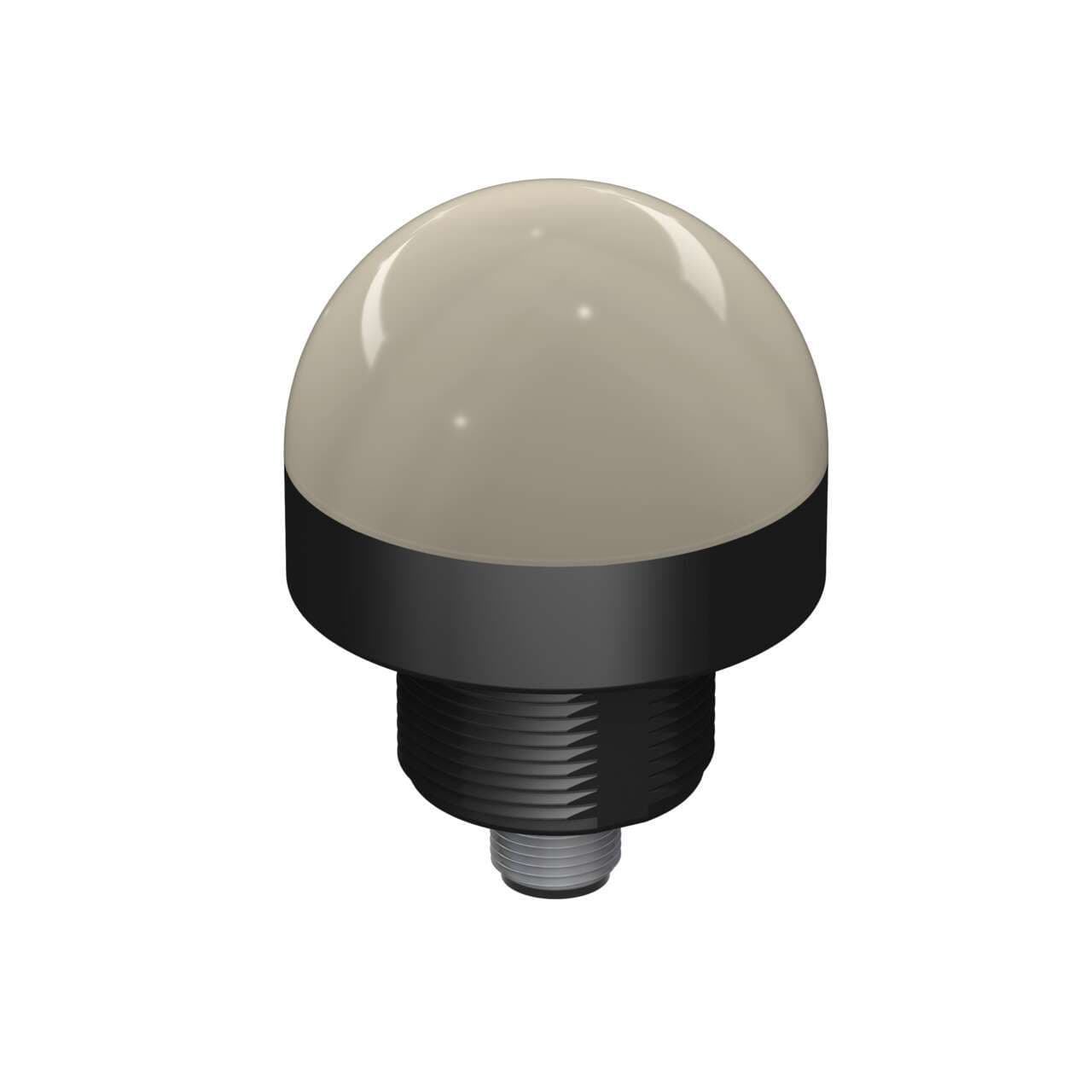

K50LYBWPQ Banner Pick-to-Light Sensors

Name: K50LYBWPQ
Brand: Banner
Price: 111 USD
Availability: BackOrder

Part#:K50LYBWPQ

Alt. Part#:53017

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K50 Series EZ-LIGHT: 3-Color General Purpose Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP67; Input: PNP; Colors: Yellow Blue White; 4-pin M12 Integral QD

Product Details

Weight
181.4368 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Primary Window Material
Polycarbonate Diffused
Wireless
No
Modbus RTU
No
IO Link
No
Feature: Quick Disconnect
Yes
Multi-Color Device
Single Color On
Primary Housing Color
Black
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
Feature: Washdown Rated
Yes
Min Op. Temperature (°C)
-40
Max Op. Temperature (°C)
50
Environmental Rating
IP67; IP69
Color Option 3
White
Physical Dimensions (LxWxH or DxH mm)
50.0 x 69.0
Max Input Response Time (ms)
1

Input Type

PNP

Color Option 1

Yellow

Color Option 2

Blue

Supply Voltage

18-30 V dc

Number of Input Pins/Conductors

Quick Disconnect Type

M12 (Euro)

Max Current Color (mA)

Connection

Integral QD

Animation Option 1

Solid On

Number of Colors / Segments

Color Technology

Standard LED

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Product Size (mm)

Mounting Thread

M30 x 1.5

Indication

Yes

Primary Housing Material

Polycarbonate

Housing Style

Base Mount - Dome Window

Power Source

Power

Cable Length (m)

0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LYBWPQ on Powermatic Associates is $111.00. Order now.

About the product

Banner Engineering K50LYBWPQ is a pilot light from the EZ-LIGHT series designed with a 1-color Yellow LED illumination for clear visibility. It features a black housing with a dome-shaped window made from polycarbonate (PC) for durability and a diffused window alongside a polycarbonate (PC) base for enhanced light dispersion. This model is pre-equipped with a 4-pin M12 Euro-style QD connector for straightforward connectivity. It operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50LYBWPQ offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread, accommodating a 50mm / 2" dome diameter. It is designed to operate within an ambient air temperature range of -40°C to +50°C. For protection against harsh environments, it is rated at IP67 and IP69K. The current consumption is 40mA, and it includes 1 x digital input (18-30Vdc; PNP) for color control.
