K70ABT2XGH Banner Pick-to-Light Sensors

K70ABT2XGH on Powermatic Associates
Banner
  • K70ABT2XGH
  • K70ABT2XGH

Part#:K70ABT2XGH

Alt. Part#:96909

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

K70 Series EZ-LIGHT: 1-Color Touch Sensor Gen 2; Momentary Output; Voltage: 12-30 V dc; Housing: Polycarbonate; IP65; Output: Bipolar (NO); Colors: None - Not Activated, Green - Activated; 2 m (6.5 ft) PVC Cable

Product Details

  • Weight
    290.29888 g
  • Country Of Origin
    MX
  • Modbus RTU
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Wireless
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    No
  • Feature: Chemical Resistant
    No
  • Feature: Audible
    No
  • Feature: Hazardous Area
    No
  • Primary Housing Color
    Black
  • Button Operation
    Momentary
  • Min Op. Temperature (°C)
    -40
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Environmental Rating
    IP65
  • Physical Dimensions (LxWxH or DxH mm)
    70.0 x 95.5
  • Output Type
    Bipolar (NPN & PNP)
  • Max Output Response Time (ms)
    50
  • Supply Voltage
    12-30 V dc
  • Max Op. Temperature (°C)
    50
  • Input Type
    Bimodal (PNP/NPN)
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Number of Input Pins/Conductors
    5
  • Operation
    Normally Open
  • Max Current Color (mA)
    220
  • Lumens Color 1
    45.0
  • Connection
    Cable
  • Animation Option 1
    Solid On
  • Color Option 1
    Green
  • Color Technology
    Standard LED
  • Activation Function
    Capacitive Touch
  • Power
    DC
  • Mounting Thread
    M30 x 1.5
  • Product Size (mm)
    70
  • Number of Colors / Segments
    1
  • Actuation
    Yes
  • Primary Housing Material
    Polycarbonate
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Housing Style
    Base Mount - Dome Window
  • Power Source
    DC
  • Cable Length (m)
    2

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70ABT2XGH on Powermatic Associates is $226.00. Order now.

About the product

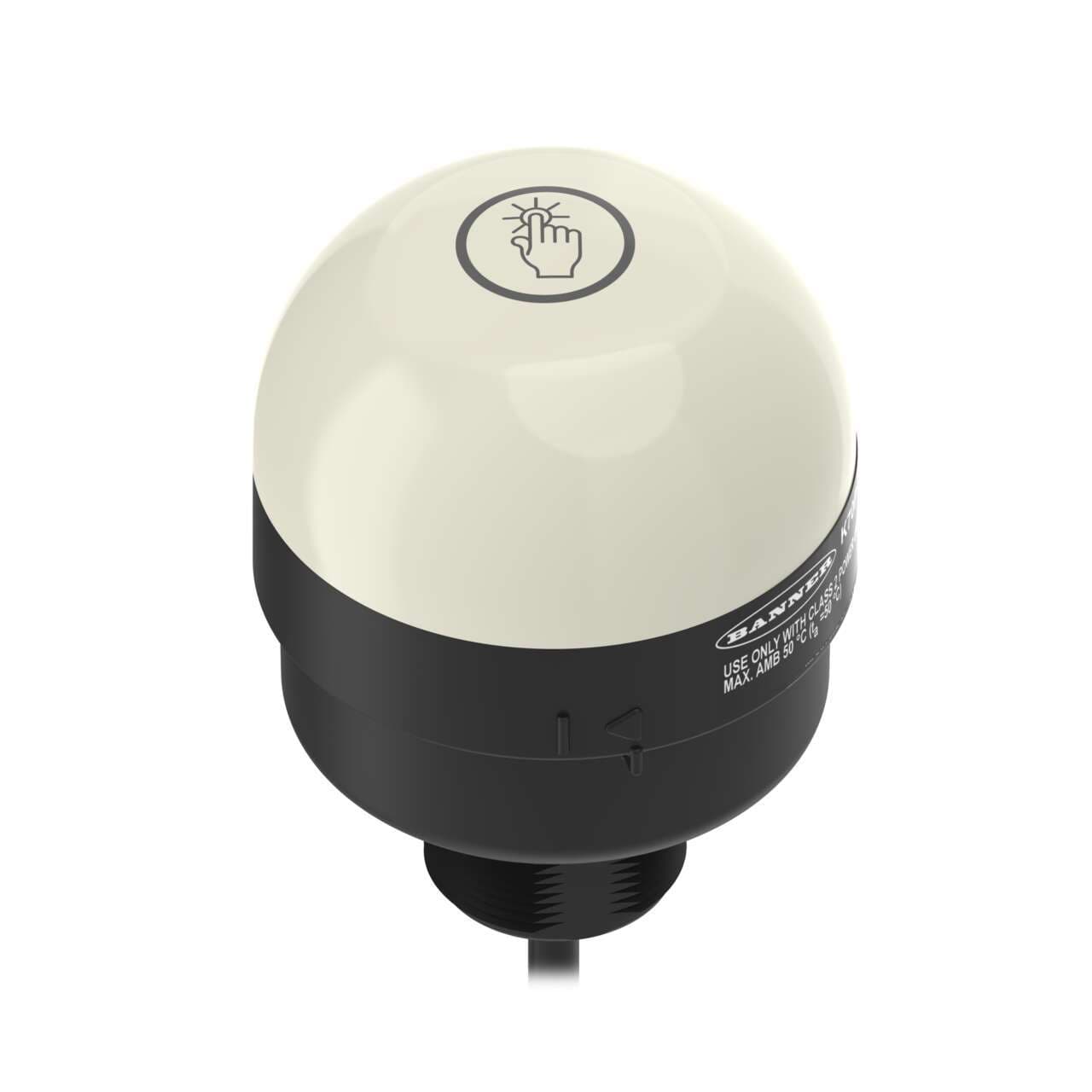

Banner Engineering K70ABT2XGH is an illuminated capacitive touch-sensitive button from the EZ-LIGHT series, featuring Gen.2 1-color LED illumination that displays no color when not activated and turns green (G) upon activation. This part comes in a black housing with a dome-shaped window made from polycarbonate (PC) base, ensuring durability. It is pre-equipped with a 5-pin M12 Euro-style quick disconnect (QD) connector for easy installation. The K70ABT2XGH operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on a surface, base, or pole flush with a 30mm hole. It has a 70mm or approximately 2-3/4" dome diameter. Designed to function in ambient air temperatures ranging from -40°C to +50°C, it offers an IP65 degree of protection against dust and water ingress. The operating mode is a momentary normally open (NO) touch output, with a current consumption of 220mA. Additionally, it features 1 x digital input (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
