LS2TK30-300Q88-1RE50 Banner Safety Light Curtains

LS2TK30-300Q88-1RE50 on Powermatic Associates
Banner
  • LS2TK30-300Q88-1RE50
  • LS2TK30-300Q88-1RE50

Part#:LS2TK30-300Q88-1RE50

Alt. Part#:79604

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

LS2TK30-300Q88-1RE50 EZS TYPE2 KIT 30 mm x 300 mm W/50FT CABLES

Product Details

  • Weight
    1868.79904 g
  • Country Of Origin
    CN

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LS2TK30-300Q88-1RE50 on Powermatic Associates is $1,372.00. Order now.

About the product

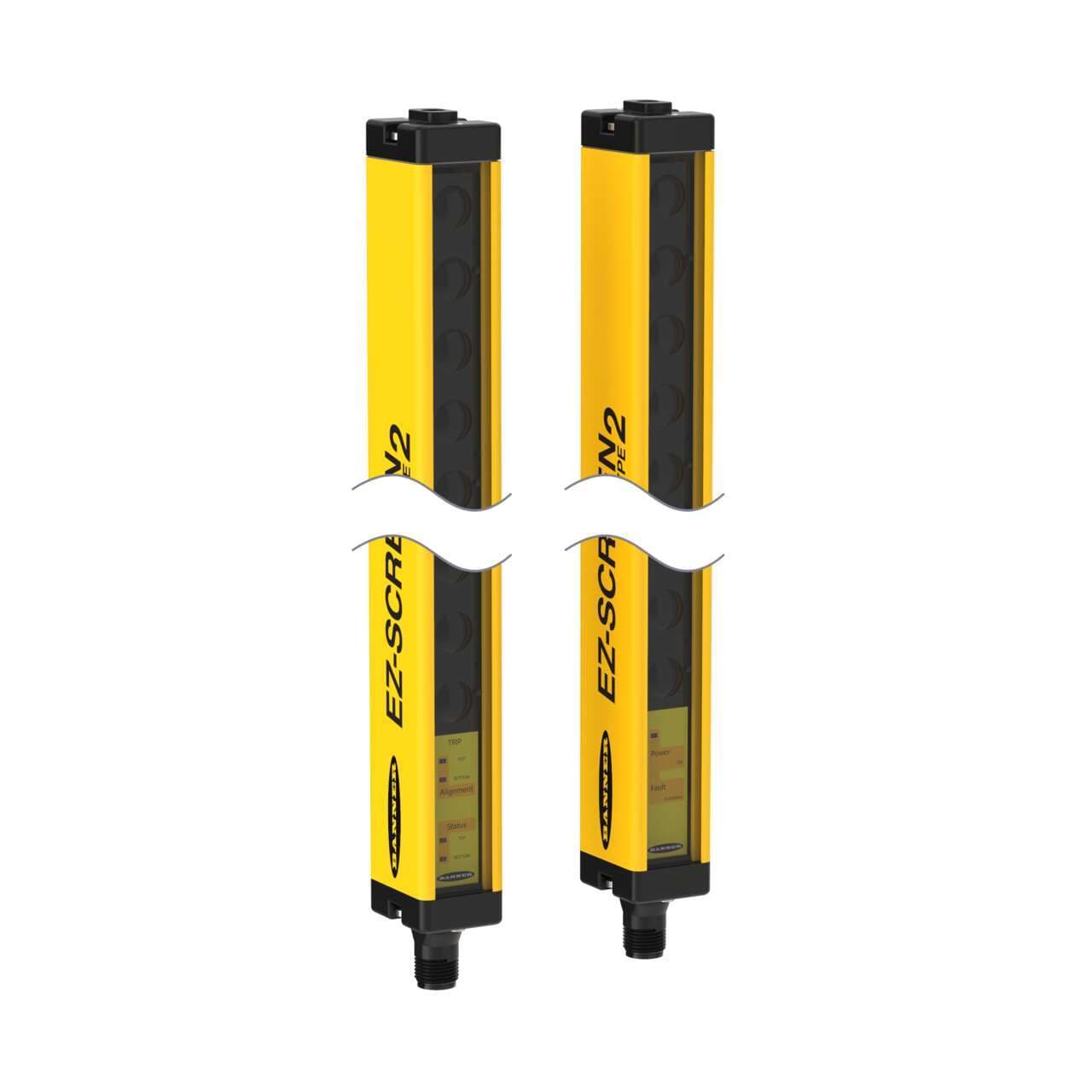

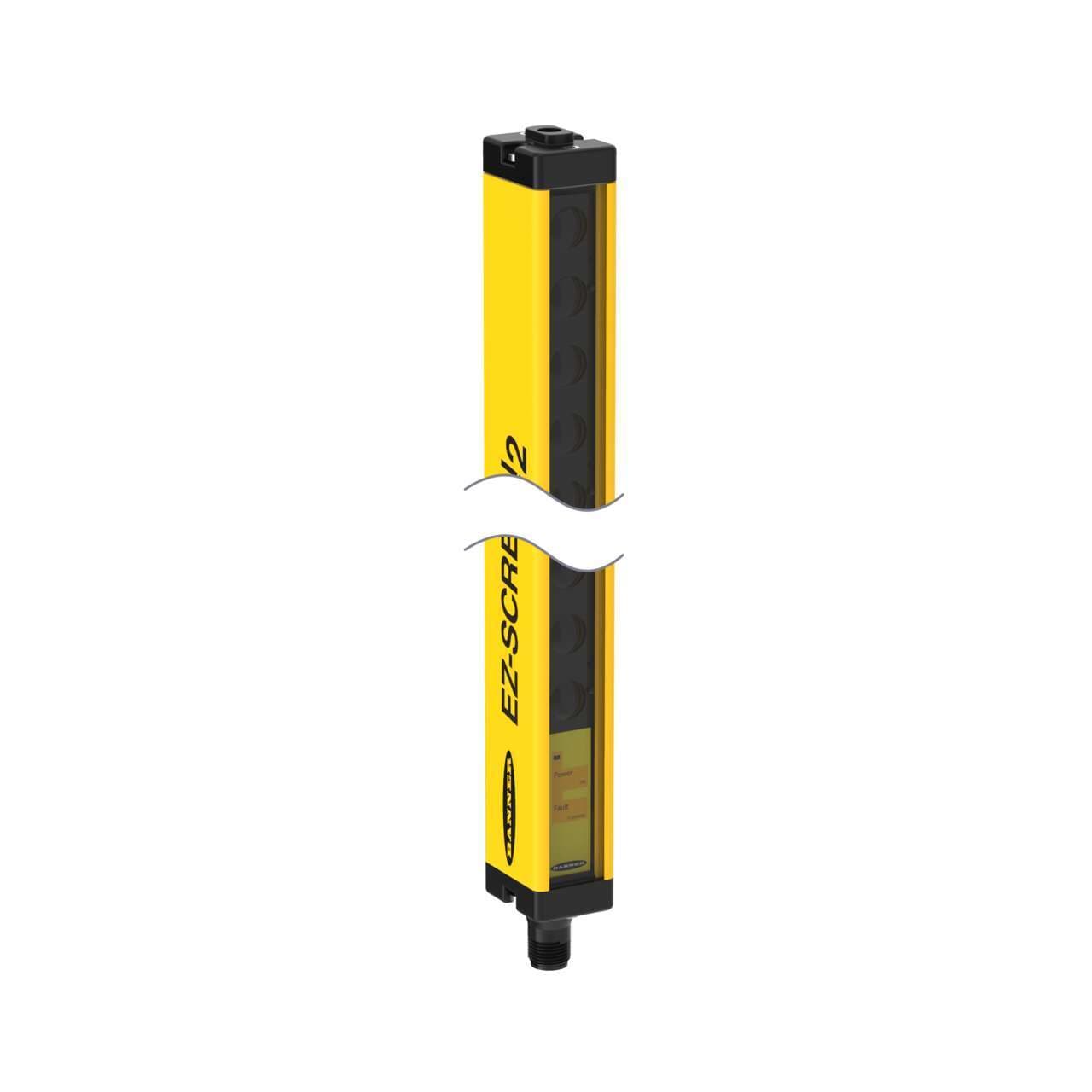

Banner Engineering LS2TK30-300Q88-1RE50 is a safety light curtain within the LS2TK series type 2 light screens, designed for hand detection with a resolution of 30mm. This unit features a protective height of 300mm and is housed in yellow aluminium with an acrylic lens and die-cast zinc end caps. It offers a beam spacing/pitch of 30mm and is pre-wired with a 50ft pigtail that terminates with an 8-pin Euro-style M12 connector. The device operates on a 24Vdc supply voltage and has a net height of 365mm, a width of 26mm, and a depth of 32mm. It can function within an ambient air temperature range of 0 to +55°C. With an IP65 degree of protection, it is suitable for sensing distances from 20cm to 15m. The LS2TK30-300Q88-1RE50 features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and has a response time of 13ms / 0.013 s.

LS2TK30-300Q88-1RE50 Related Documents

122452.pdf
