M12PRQ8 Banner Proximity Sensors
Part#:M12PRQ8
Alt. Part#:77199
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
M12 Series: Receiver; Range: 5 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; M12 Integral QD
Product Details
- Weight 18.14368 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Design through-beam system / opposed mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Compliant with standard(s) CE
- Primary brand Banner Engineering
- Light Color Visible red
- Operating mode Light-ON Dark-ON
- Material Nickel-plated brass housing PMMA lns.
- Response time 0.625ms / 0.000625 s
- Thread size M12
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -20...+60 °C
- Order code / Manufacturer SKU 77199
- Functions Photo-electric sensor receiver green LED (power ON) amber LED (light sensed) potentiometer adjustment
- Shape Cylindrical threaded/barrel
- Sub-range name M12
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Degree of protection IP67 IP68 NEMA 5 NEMA 6
- Product series / family name M12 barrel series
- Wavelength 660 nm
- Sensing distance 5m
- Outputs PNP
- Special Feature: Intrinsically Safe No
- Sensing Mode (Detailed) Receiver
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) 12
- Primary Housing Material Nickel-Plated Brass
- Max Op. Temp. (°C) 60
- Number of Pins 4
- Feature: Washdown Rated Yes
- Opposed Mode Emitter/Receiver Receiver
- Housing Style Barrel
- Special Feature: Water Detection No
- Adjustments Potentiometer
- Feature: Chemical Resistant No
- Sensing Mode (General) Opposed
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Hazardous Area No
- Input/Output Discrete
- Connection Integral QD
- Power DC
- Min Op. Temp. (°C) -20
- Repeatability (µs) 85
- Indicator LEDs
- IO Link No
- Max Sensing Distance (mm) 5000
- Operation Light/Dark Operate
- IP Rating IP67, IP68
- Feature: Timing (Hold/Delay) No
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 660
- NEMA Rating NEMA 5, 6 and 1200 PSI Washdown
- Feature: Encapsulated Yes
- Lens Material PMMA
- DeviceNet No
- Feature: Audible No
- Output response time (ms) 0.625 ON/0.375 OFF
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of M12PRQ8 on Powermatic Associates is $104.00. Order now.
About the product

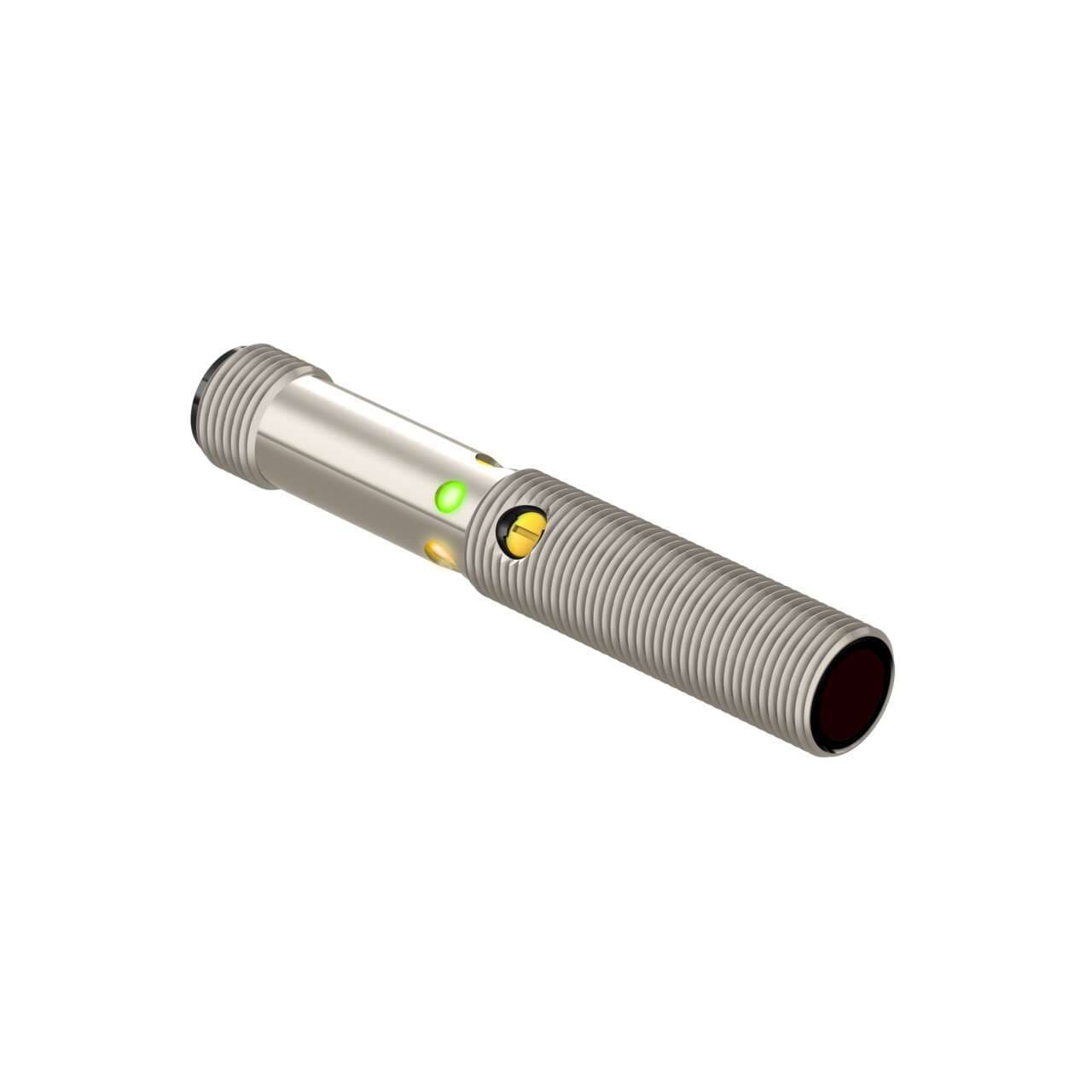

Banner Engineering M12PRQ8 is a photo-electric sensor designed for precise detection tasks, belonging to the M12 series. This sensor operates as a receiver within a through-beam system, featuring opposed mode potentiometer adjustment for fine-tuning. It emits visible red light from a nickel-plated brass housing with a Polymethyl methacrylate (PMMA) lens, ensuring durability and clear signal transmission. The sensor is equipped with a 4-pin Euro-style M12 connector for straightforward integration into various systems. It accepts a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc, and operates efficiently at a wavelength of 660 nm. Designed to function in ambient air temperatures ranging from -20 to +60 degrees Celsius, it offers a high degree of protection with ratings of IP67, IP68, NEMA 5, and NEMA 6. The M12PRQ8 supports both Light-ON and Dark-ON operating modes, has an M12 thread size for easy mounting, and provides a sensing distance of up to 5 meters. It features a single digital output (PNP transistor; complementary NO/NC) and boasts a rapid response time of 0.625ms / 0.000625 s, catering to applications requiring quick and accurate detection.
