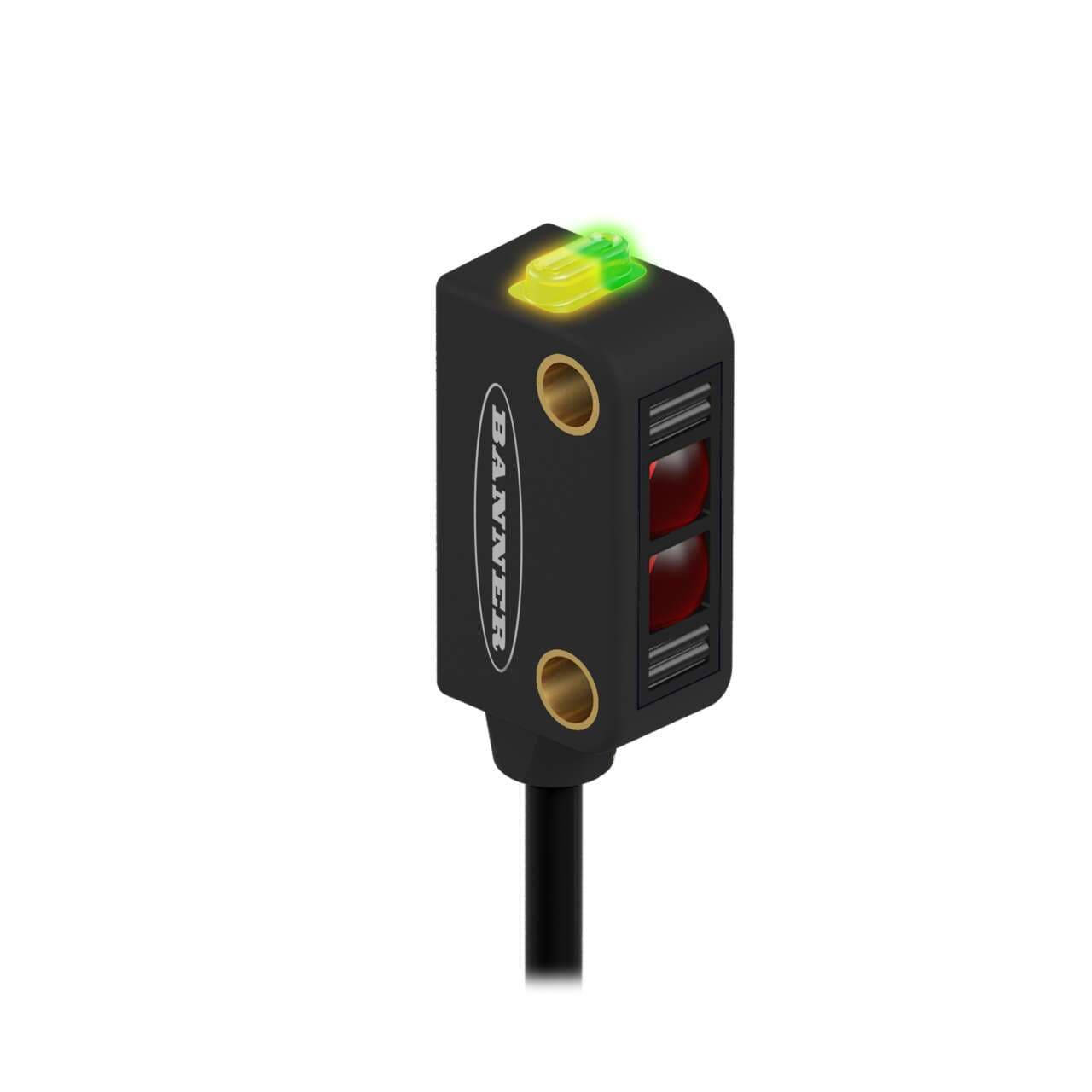

Q12AB6FF50Q5 Banner Proximity Sensors
Part#:Q12AB6FF50Q5
Alt. Part#:74123
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q12 Series: Fixed-Field; Range: 50 mm Cutoff; Input: 10-30 V dc; Output: LO (Light Operate) Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 27.21552 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Primary brand Banner Engineering
- Light Color Visible red
- Sensing distance 50mm
- Operating mode Light-ON
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Main function Sensor (Photo-electric)
- Design background suppression system
- Shape Rectangular
- Order code / Manufacturer SKU 74123
- Sub-range name Q12 series
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Material thermoplastic housing Polycarbonate lns.
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Wavelength 640 nm
- Degree of protection IP67
- Compliant with standard(s) cURus CE
- Ambient air temperature for operation -20...+55 °C
- Response time 0.7ms / 0.0007 s
- Power DC
- Sensing Mode (General) Proximity
- Outputs Bipolar (NPN & PNP)
- Operation Light Operate
- IP Rating IP67
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- DeviceNet No
- Input/Output Discrete
- Connection Pigtail QD
- Sensing Beam Wavelength 640
- Indicator LEDs
- IO Link No
- Small Visible Spot LED
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 120
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -20
- Repeatability (µs) 175
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 0.15
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 55
- Number of Pins 4
- Feature: Encapsulated No
- Housing Style Rectangular
- Output response time (ms) 0.85 ON/OFF
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 50
- Special Feature: Remote Teach No
- Adjustments N/A
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12AB6FF50Q5 on Powermatic Associates is $129.00. Order now.
About the product
Banner Engineering Q12AB6FF50Q5 is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic with a polycarbonate lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. As part of the Q12 series, it offers a degree of protection rated at IP67, making it suitable for various environments. The supply voltage required for operation is between 10Vdc and 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape and is capable of sensing at a distance of 50mm. The sensor emits a visible red light with a wavelength of 640 nm and operates in a Light-ON mode. It includes 1 x digital output (PNP/NPN transistor) and boasts a quick response time of 0.7ms / 0.0007 s.
