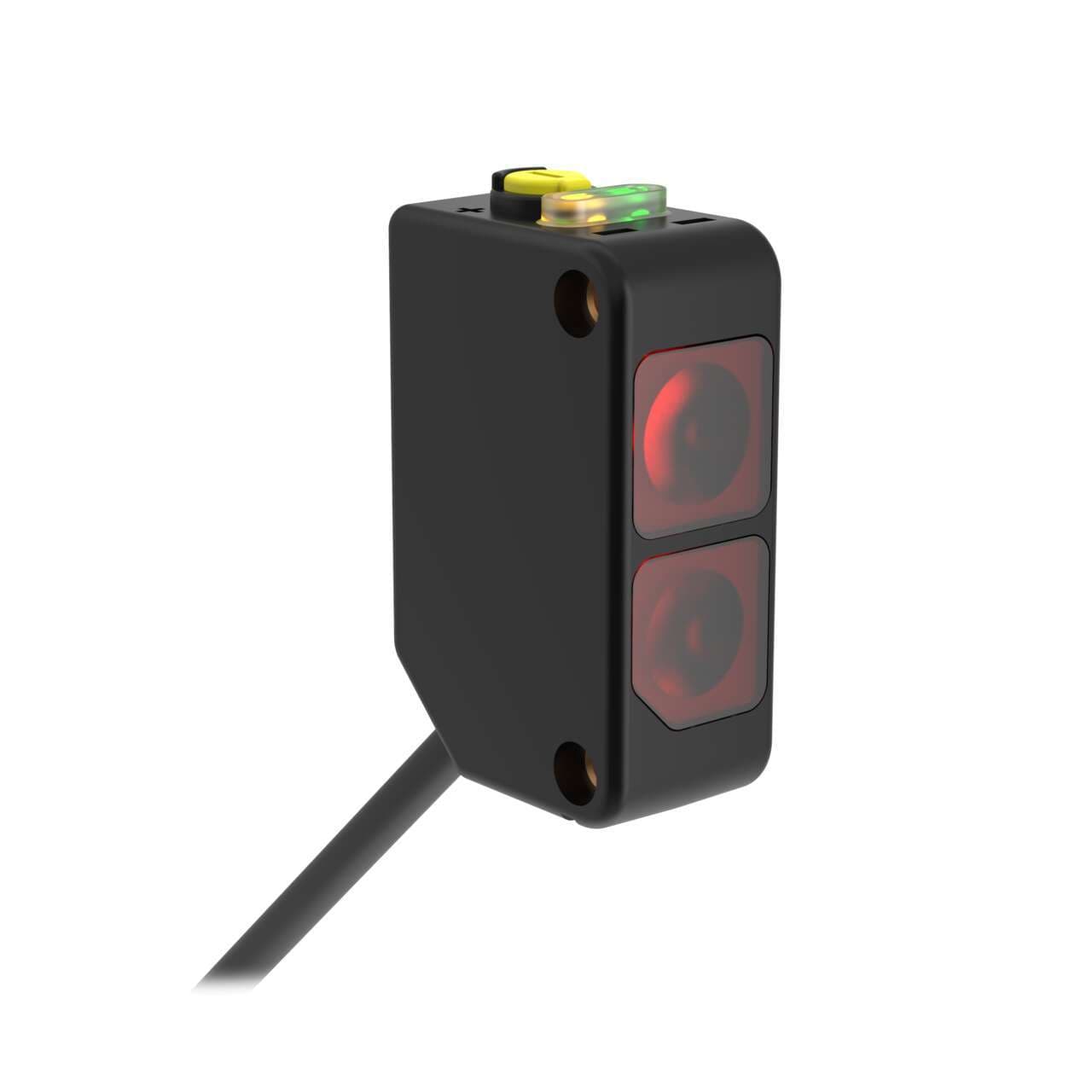

Q20NDVS Banner Proximity Sensors
Part#:Q20NDVS
Alt. Part#:806760
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; 2 m (6.5 ft) Cable
Product Details
- Weight 49.89512 g
- Country Of Origin CN
- Feature: Chemical Resistant No
- Quick Disconnect Type No QD
- Barrel Diameter (mm) N/A
- EPLAN Cabinet Installable No
- Feature: Audible No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Lens Material Acrylic
- Sensing Beam Wavelength 660
- Indicator LEDs
- Min Op. Temp. (°C) -20
- Adjustments Potentiometer
- IO Link No
- IP Rating IP67
- Feature: Hazardous Area No
- Output response time (ms) 0.85
- Number of Pins 4
- Repeatability (µs) 90
- Opposed Mode Emitter/Receiver N/A
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Outputs NPN
- Operation Light/Dark Operate
- Small Visible Spot LED
- Special Feature: Intrinsically Safe No
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Max Op. Temp. (°C) 60
- Sensing Beam Visible Red LED
- Connection Cable
- Special Feature: Water Detection No
- Housing Style Rectangular
- Special Feature: Remote Teach No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Sensing Mode (Detailed) Diffuse
- DeviceNet No
- Input/Output Discrete
- Max Sensing Distance (mm) 250
- Cable Length (m) 2
- Primary Housing Material ABS
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NDVS on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20NDVS is a photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60 degrees Celsius and features a diffuse (small spot) system with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. Part of the Q20 series, it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The Q20NDVS operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, ensuring durability. The sensing distance is set at 250mm, and it utilizes visible red light with a wavelength of 660 nm for detection. This sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor) with a rapid response time of 0.8ms / 0.0008 s.
