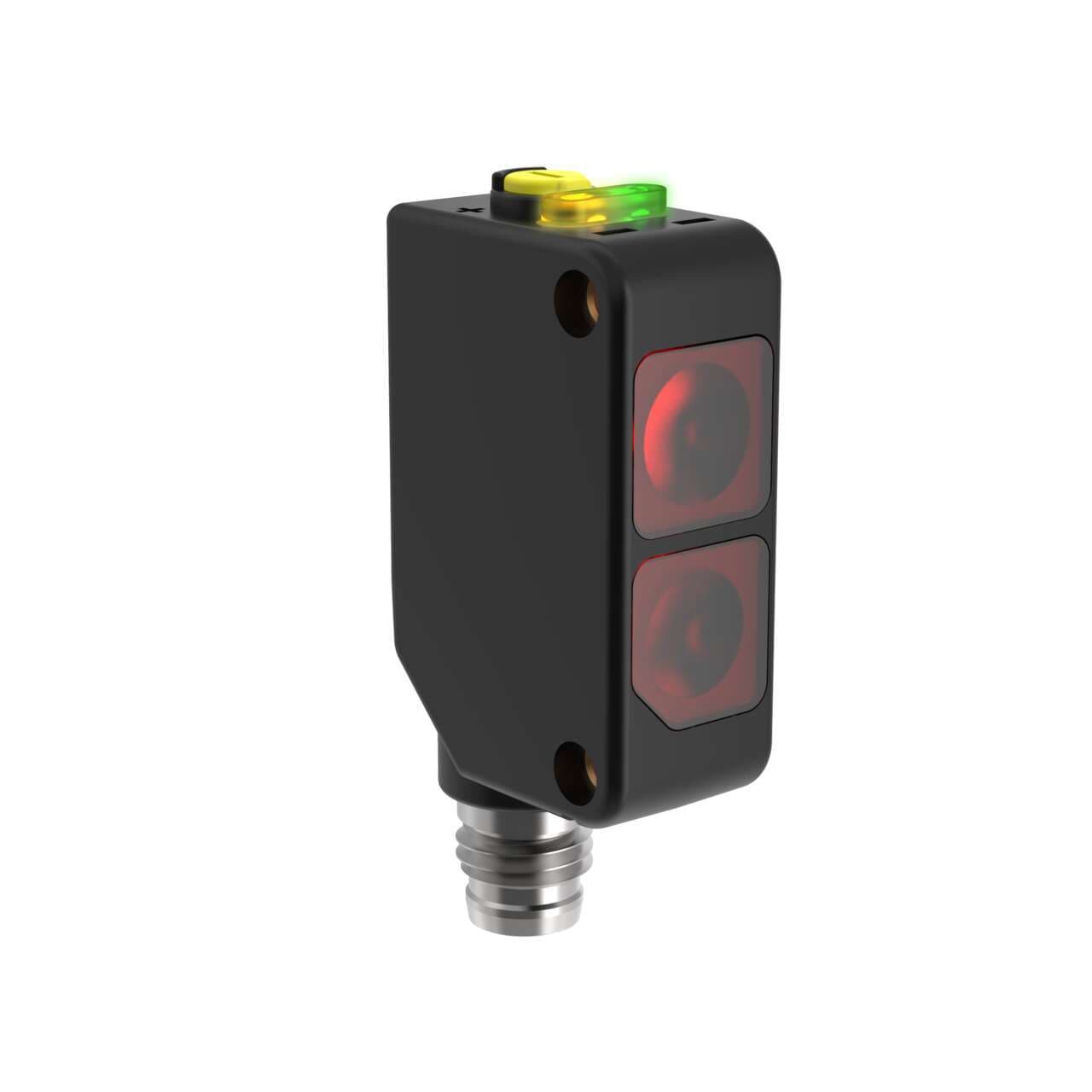

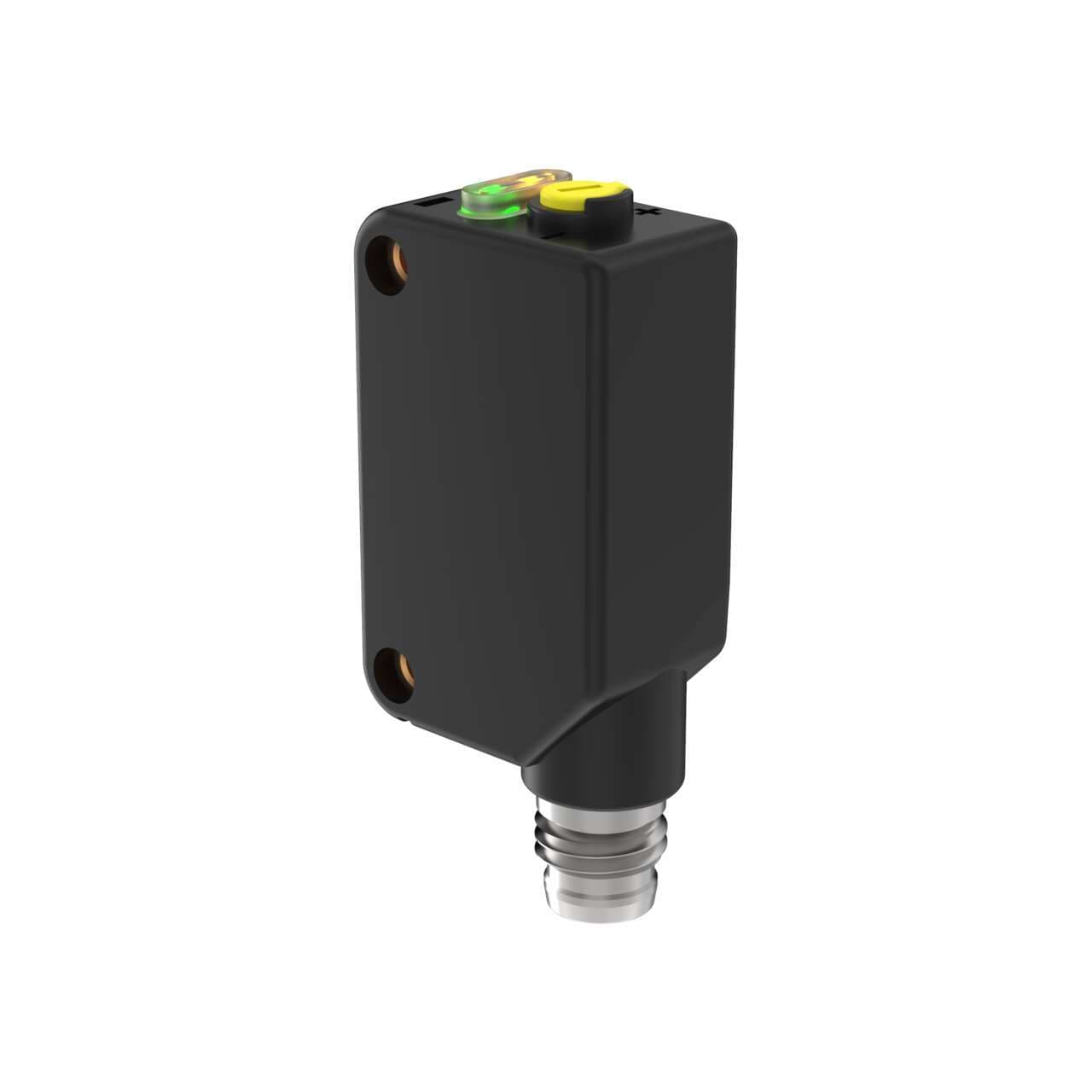

Q20NDQ7 Banner Proximity Sensors
Part#:Q20NDQ7
Alt. Part#:77760
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; M8 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Water Detection No
- IO Link No
- Barrel Diameter (mm) N/A
- Max Sensing Distance (mm) 250
- Output response time (ms) 0.8
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- Connection Integral QD
- Sensing Beam Wavelength 655
- Adjustments Potentiometer
- Power DC
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 100
- Indicator LEDs
- Sensing Mode (Detailed) Diffuse
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Special Feature: Remote Teach No
- Lens Material Acrylic
- DeviceNet No
- Input/Output Discrete
- Max Op. Temp. (°C) 60
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- EPLAN Cabinet Installable No
- Outputs NPN
- Operation Light/Dark Operate
- Repeatability (µs) 155
- Opposed Mode Emitter/Receiver N/A
- Feature: Encapsulated No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NDQ7 on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20NDQ7 is a photo-electric sensor from the Q20 series, designed with a diffuse mode potentiometer adjustment. It operates within an ambient air temperature range of -20 to +60 degrees Celsius and is housed in a thermoplastic material, ensuring durability within specified conditions. This sensor is pre-equipped with a 4-pin Pico-style M8 connector for connectivity and boasts a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial environments. It requires a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. The Q20NDQ7 features a rectangular shape and offers a sensing distance of 250mm, utilizing visible red light with a wavelength of 624 nm. It supports both Light-ON and Dark-ON operating modes for versatile application use. Additionally, it includes 1 x digital output (NPN transistor) and promises a swift response time of 0.8ms / 0.0008 s.
