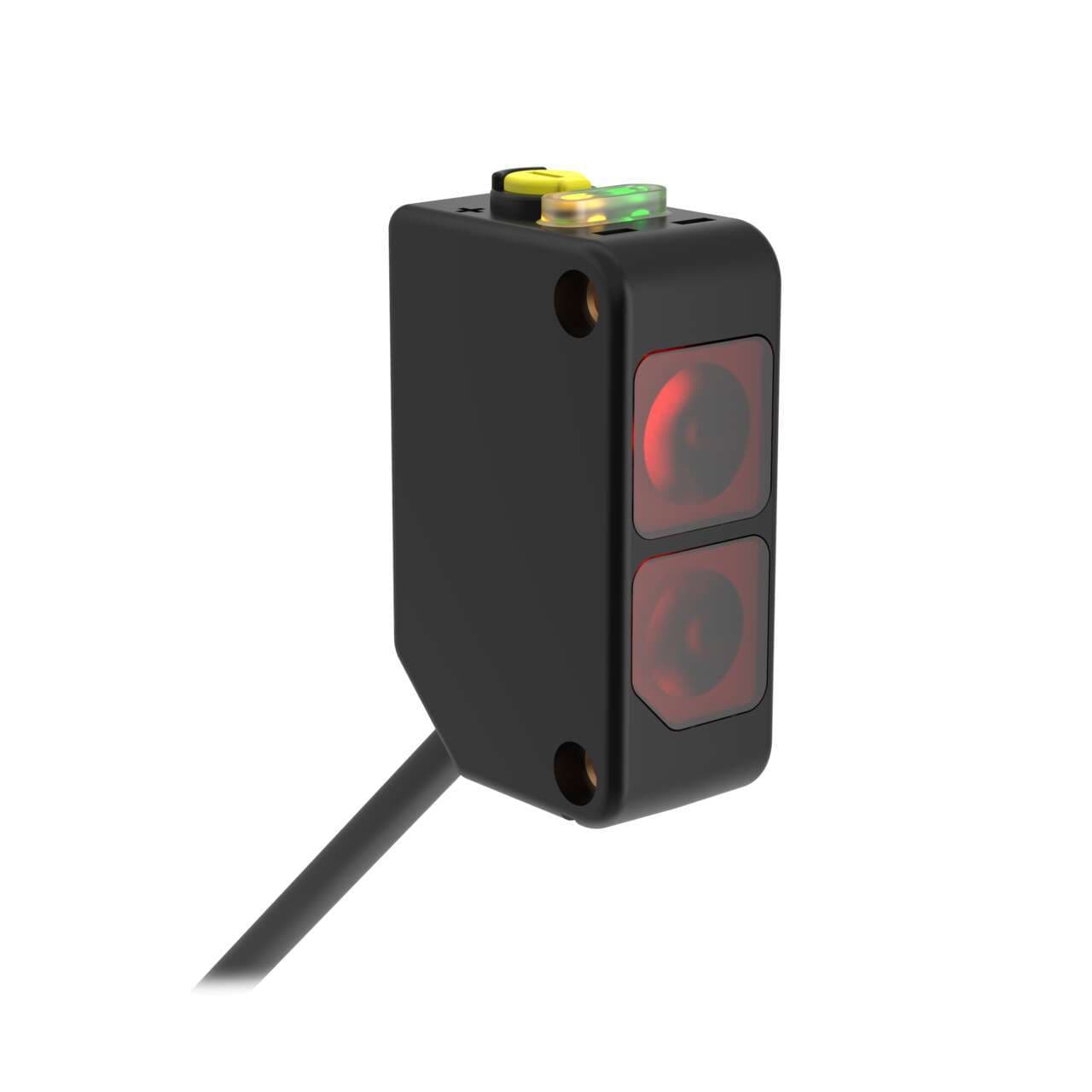

Q20NDVSQ5 Banner Proximity Sensors
Part#:Q20NDVSQ5
Alt. Part#:806865
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 25.854744 g
- Country Of Origin MX
- Repeatability (µs) 90
- Adjustments Potentiometer
- Housing Style Rectangular
- Special Feature: Intrinsically Safe No
- Sensing Beam Wavelength 660
- Feature: Audible No
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Diffuse
- Min Op. Temp. (°C) -20
- Lens Material Acrylic
- DeviceNet No
- Input/Output Discrete
- Quick Disconnect Type M12 (Euro)
- Indicator LEDs
- Feature: Timing (Hold/Delay) No
- IO Link No
- NEMA Rating NEMA 6
- Sensing Mode (General) Proximity
- Primary Housing Material ABS
- Special Feature: Remote Teach No
- Power DC
- Small Visible Spot LED
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Outputs NPN
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Temp. (°C) 60
- Output response time (ms) 0.85
- Number of Pins 4
- Barrel Diameter (mm) N/A
- Feature: Encapsulated No
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 250
- Operation Light/Dark Operate
- IP Rating IP67
- EPLAN Cabinet Installable No
- Sensing Beam Visible Red LED
- Connection Pigtail QD
- Delay at Power-up (ms) 100
- Max Op. Relative Humidity [%] 95% @ 50°C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NDVSQ5 on Powermatic Associates is $109.00. Order now.
About the product
Banner Engineering Q20NDVSQ5 is a photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60°C and features a diffuse (small spot) system with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector, ensuring easy installation. The Q20NDVSQ5, part of the Q20 series, offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The sensor's rectangular shape is constructed from a thermoplastic housing with a Polymethyl methacrylate (PMMA) lens, ensuring durability. It has a sensing distance of 250mm and utilizes visible red light with a wavelength of 660 nm for detection. The operating modes include Light-ON and Dark-ON, providing versatility in application. Additionally, it features 1 x digital output (NPN transistor) and boasts a rapid response time of 0.8ms / 0.0008 s.
