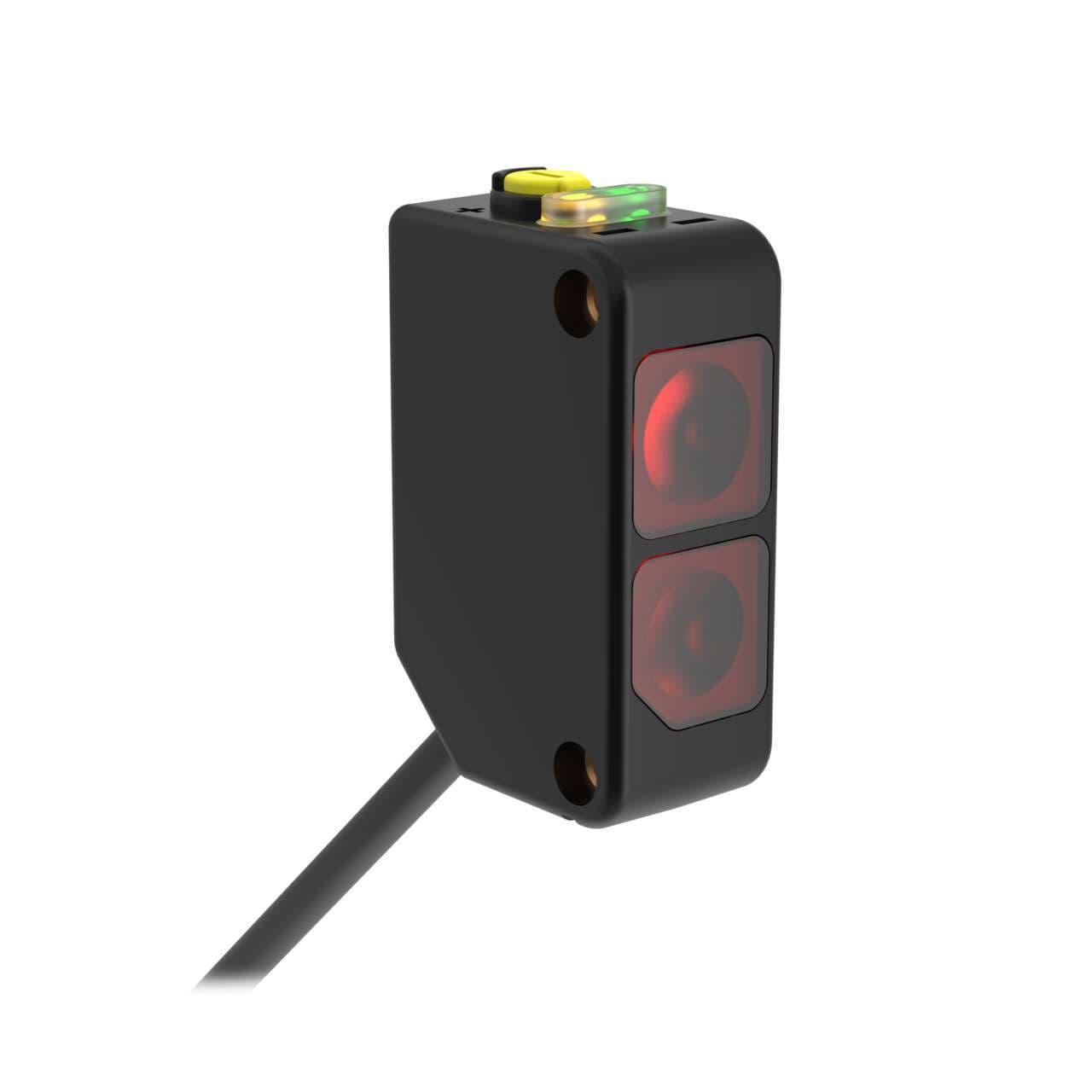

Q20NDVSQ Banner Proximity Sensors
Part#:Q20NDVSQ
Alt. Part#:806863
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Small Spot Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Primary Housing Material ABS
- Input/Output Discrete
- Sensing Beam Visible Red LED
- Housing Style Rectangular
- Small Visible Spot LED
- Sensing Mode (General) Proximity
- Sensing Mode (Detailed) Diffuse
- Connection Pigtail QD
- Power Supply/Supply Voltage 10-30 V dc
- Max Sensing Distance (mm) 250
- Max Op. Temp. (°C) 60
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Output response time (ms) 0.85
- Special Feature: Intrinsically Safe No
- Repeatability (µs) 90
- Number of Pins 4
- Special Feature: Water Detection No
- Delay at Power-up (ms) 100
- IP Rating IP67
- Sensing Beam Wavelength 660
- Max Op. Relative Humidity [%] 95% @ 50°C
- NEMA Rating NEMA 6
- Lens Material Acrylic
- Power DC
- Min Op. Temp. (°C) -20
- Outputs NPN
- Quick Disconnect Type M8 (Pico)
- Opposed Mode Emitter/Receiver N/A
- Adjustments Potentiometer
- Barrel Diameter (mm) N/A
- Indicator LEDs
- Feature: Timing (Hold/Delay) No
- Feature: Hazardous Area No
- Feature: Encapsulated No
- Feature: Audible No
- EPLAN Cabinet Installable No
- DeviceNet No
- Feature: Chemical Resistant No
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NDVSQ on Powermatic Associates is $109.00. Order now.
About the product
Banner Engineering Q20NDVSQ is a photo-electric sensor designed with a diffuse (small spot) system and potentiometer adjustment. It operates within an ambient air temperature range of -20 to +60 °C and is housed in a thermoplastic casing with a Polymethyl methacrylate (PMMA) lens. This sensor is part of the Q20 series and offers a sensing distance of 250mm, utilizing visible red light with a wavelength of 660 nm. It features a pre-wired 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector for connectivity. The Q20NDVSQ operates on a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and includes 1 x digital output (NPN transistor) with a response time of 0.8ms / 0.0008 s. It is designed in a rectangular shape and provides a degree of protection rated at IP67 NEMA 6, allowing for operation in various environmental conditions. The operating modes include Light-ON and Dark-ON.
