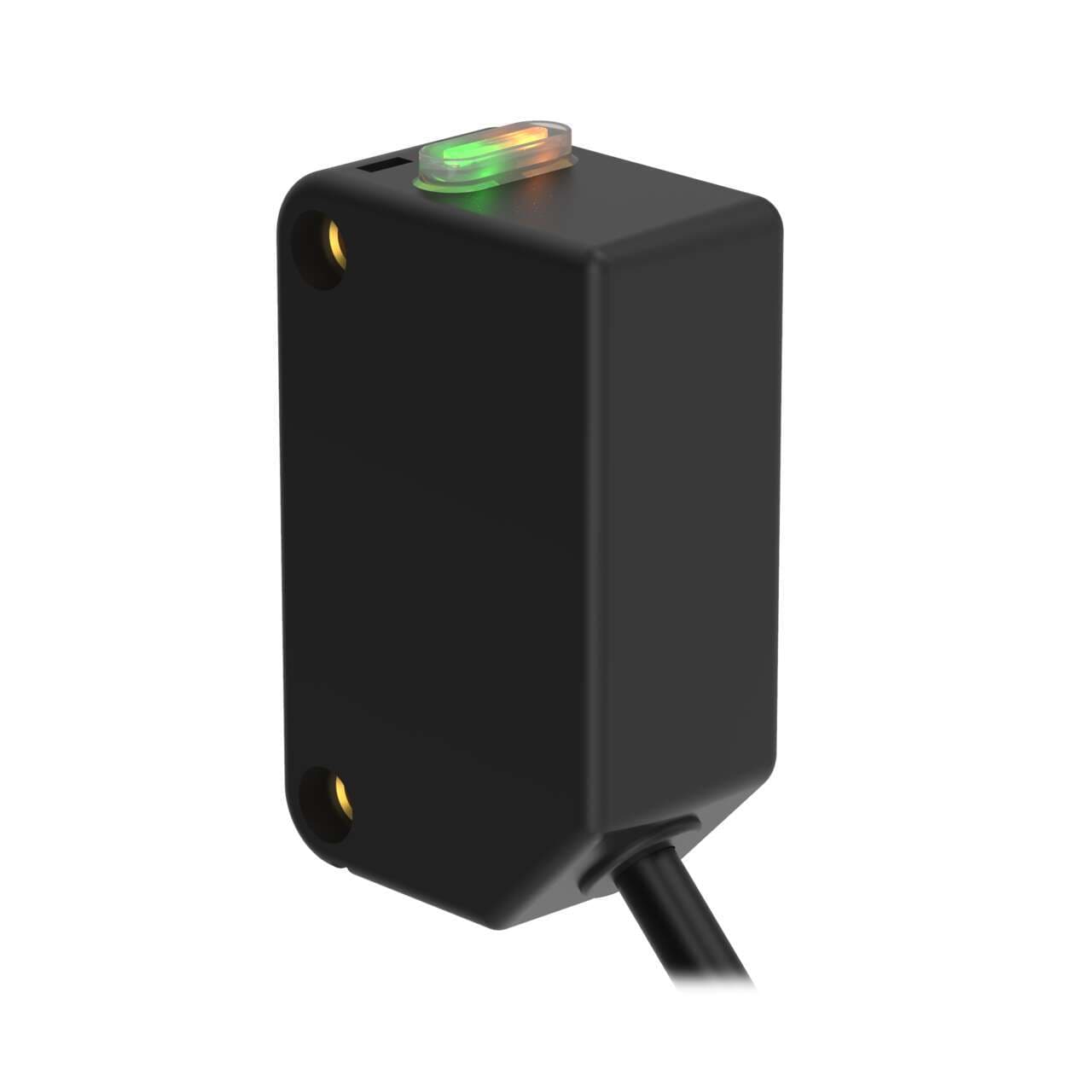

Q20NFF50IR Banner Proximity Sensors
Part#:Q20NFF50IR
Alt. Part#:808746
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Fixed-Field; Range: 50 mm; Input 10-30 V dc; Output: Complementary Solid-State NPN; 2 m (6.5 ft) Cable; IR Emitter
Product Details
- Weight 45.3592 g
- Country Of Origin CN
- Max Sensing Distance (mm) 50
- Quick Disconnect Type No QD
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 870
- Number of Pins 4
- Special Feature: Remote Teach No
- Barrel Diameter (mm) N/A
- Adjustments N/A
- Feature: Encapsulated No
- Small Visible Spot LED
- Sensing Mode (General) Proximity
- Output response time (ms) 0.8
- Repeatability (µs) 155
- Opposed Mode Emitter/Receiver N/A
- Cable Length (m) 2
- Operation Light/Dark Operate
- Delay at Power-up (ms) 100
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- IP Rating IP67
- Indicator LEDs
- Outputs NPN
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Power DC
- Feature: Audible No
- Housing Style Rectangular
- Connection Cable
- Input/Output Discrete
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity [%] 95% @ 50°C
- Max Op. Temp. (°C) 60
- Special Feature: Water Detection No
- IO Link No
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NFF50IR on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20NFF50IR is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic material, ensuring durability. This sensor is part of the Q20 series and features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads for easy installation. It offers a sensing distance of 50mm and utilizes infrared light with a wavelength of 870 nm. The Q20NFF50IR operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It is designed to work in both Light-ON and Dark-ON operating modes and includes 1 x digital output (NPN transistor) for signal processing. The response time of this sensor is 0.8ms / 0.0008 s, and it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for various industrial applications.
