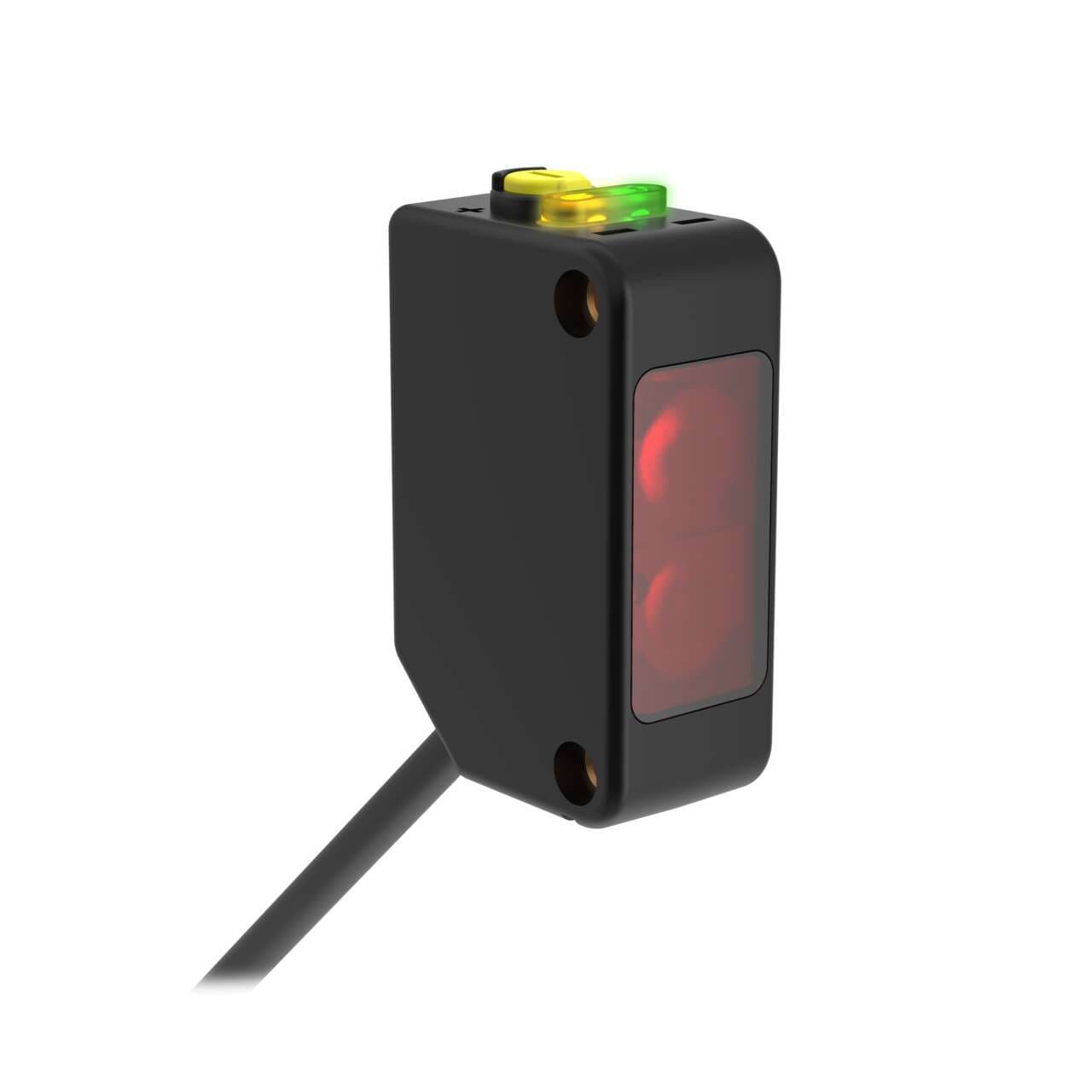

Q20NLPQPMA Banner Proximity Sensors
Part#:Q20NLPQPMA
Alt. Part#:78172
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Polarized Retro; Range: 4 m; Input 10-30 V dc; Output: Complementary Solid-State NPN; 150 mm (6 in) M12 PUR Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Input/Output Discrete
- Special Feature: Remote Teach No
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Lens Material Acrylic
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Output response time (ms) 0.8
- Feature: Chemical Resistant No
- Sensing Mode (General) Retroreflective
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Barrel Diameter (mm) N/A
- EPLAN Cabinet Installable No
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Feature: Encapsulated No
- Outputs NPN
- Sensing Beam Wavelength 645
- Max Op. Temp. (°C) 60
- Number of Pins 4
- Indicator LEDs
- Max Sensing Distance (mm) 4000
- Power DC
- Quick Disconnect Type M12 (Euro)
- Special Feature: Water Detection No
- Adjustments Potentiometer
- DeviceNet No
- Sensing Mode (Detailed) Polarized
- Connection Pigtail PUR QD
- Opposed Mode Emitter/Receiver N/A
- Delay at Power-up (ms) 100
- Housing Style Rectangular
- Feature: Timing (Hold/Delay) No
- Min Op. Temp. (°C) -20
- Repeatability (µs) 155
- IO Link No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NLPQPMA on Powermatic Associates is $132.00. Order now.
About the product
Banner Engineering Q20NLPQPMA is a polarized photo-electric sensor designed for a variety of detection applications. It operates within an ambient air temperature range of -20 to +60 degrees Celsius and features a retro-reflective mode with potentiometer adjustment for precise control. This sensor is equipped with a pre-wired 6-inch (150mm) PUR cable that terminates with a 4-pin Euro-style M12 connector, ensuring easy and secure connections. Part of the Q20 series, it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The Q20NLPQPMA operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc, and is housed in a durable thermoplastic with PUR connector and cable sheath for enhanced durability. It offers a sensing distance of up to 4 meters and utilizes visible red light with a wavelength of 645 nm for detection. This sensor supports both Light-ON and Dark-ON operating modes, includes 1 x digital output (NPN transistor), and features a rapid response time of 0.8ms (0.0008 seconds), facilitating quick and efficient operation.
