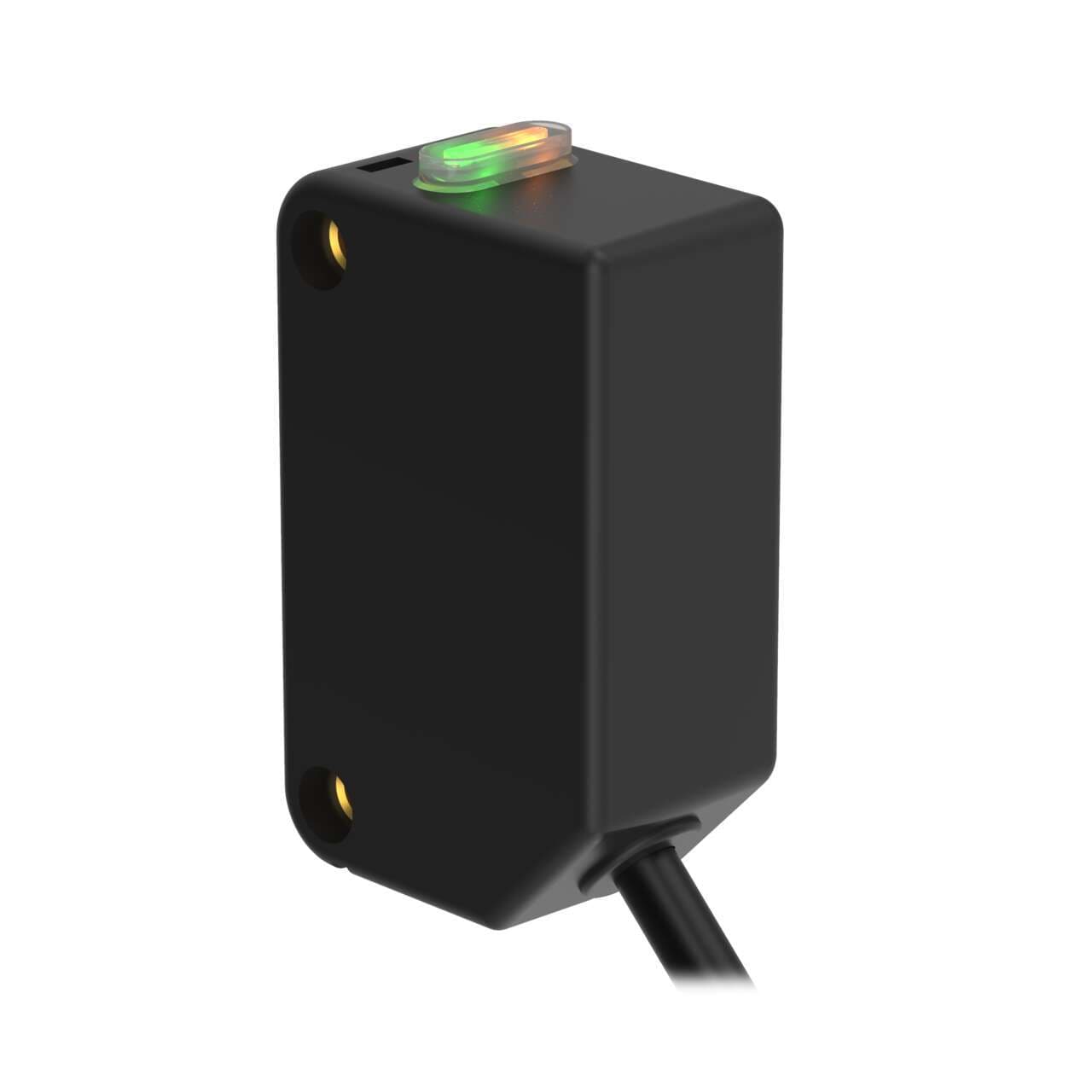

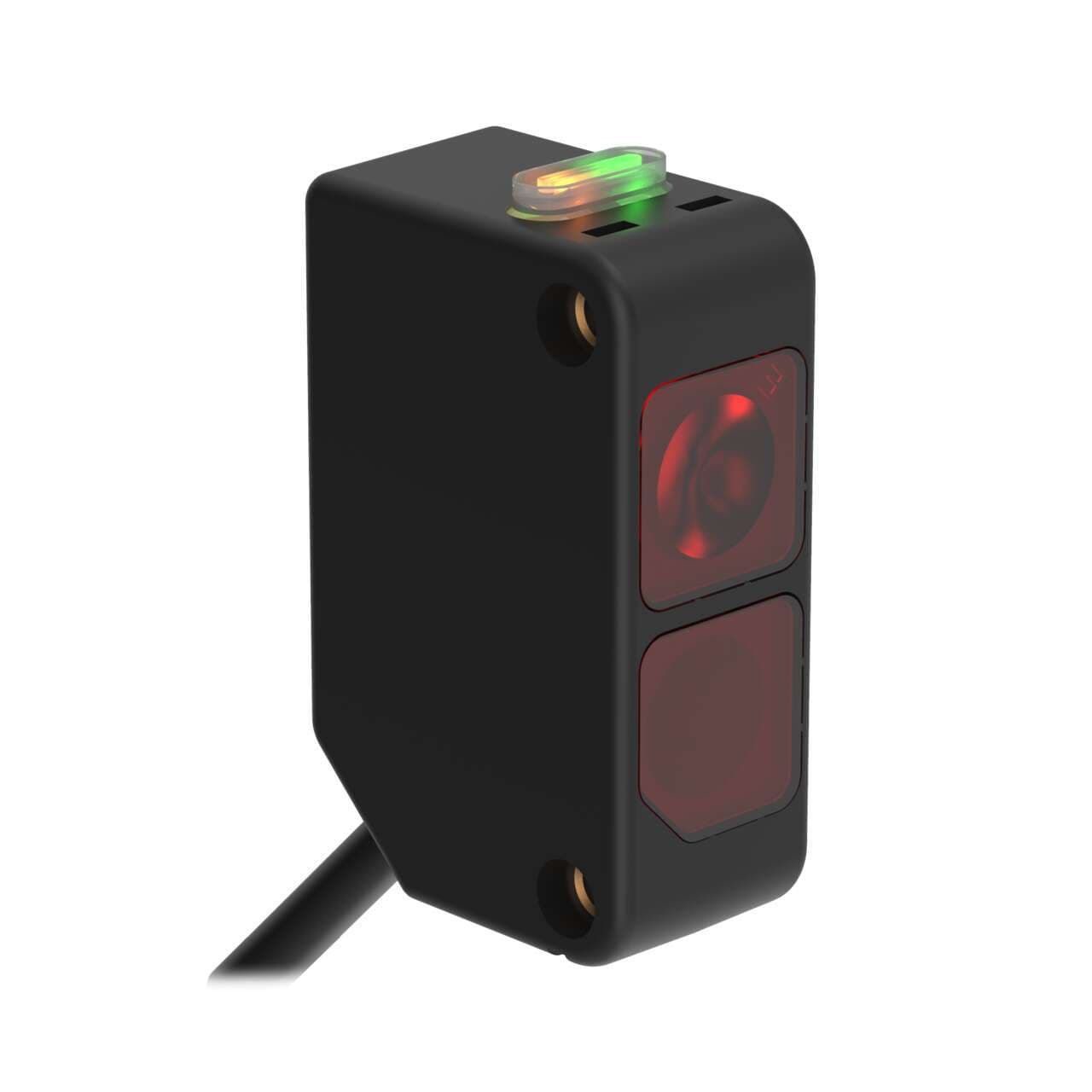

Q20NR Banner Proximity Sensors
Part#:Q20NR
Alt. Part#:77779
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Receiver (Red); Range: 12 m; Input 10-30 V dc; Output: Complementary Solid-State NPN; 2 m (6.5 ft) Cable
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Product series / family name WORLD-BEAM series
- Design through-beam system / opposed mode
- Light Color Visible red
- Compliant with standard(s) cURus CE
- Sub-range name Q20 series
- Sensing distance 12m
- Operating mode Light-ON Dark-ON
- Primary brand Banner Engineering
- Wavelength 624 nm
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Digital outputs 1 x digital output (NPN transistor)
- Order code / Manufacturer SKU 77779
- Functions Photo-electric sensor receiver green LED (power ON) amber LED (black (LO) wire conducting)
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Degree of protection IP67 NEMA 6
- Material thermoplastic housing
- Response time (ON) 1ms / 0.001 s(OFF) 0.6ms / 0.0006 s
- Ambient air temperature for operation -20...+60 °C
- IO Link No
- Input/Output Discrete
- Special Feature: Intrinsically Safe No
- Delay at Power-up (ms) 100
- Max Sensing Distance (mm) 12000
- Operation Light/Dark Operate
- Lens Material Acrylic
- Cable Length (m) 2
- Outputs NPN
- NEMA Rating NEMA 6
- Feature: Encapsulated No
- Sensing Mode (Detailed) Receiver
- Output response time (ms) 1 ON/0.6 OFF
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Max Op. Temp. (°C) 60
- Sensing Mode (General) Opposed
- Connection Cable
- IP Rating IP67
- Feature: Hazardous Area No
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Remote Teach No
- DeviceNet No
- Primary Housing Material Thermoplastic
- Quick Disconnect Type No QD
- Barrel Diameter (mm) N/A
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular
- Min Op. Temp. (°C) -20
- Sensing Beam Wavelength 655
- EPLAN Cabinet Installable No
- Special Feature: Water Detection No
- Adjustments N/A
- Max Op. Relative Humidity [%] 95% @ 50°C
- Indicator LEDs
- Feature: Audible No
- Opposed Mode Emitter/Receiver Receiver
- Number of Pins 4
- Repeatability (µs) 140
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20NR on Powermatic Associates is $80.00. Order now.
About the product
Banner Engineering Q20NR is a photo-electric sensor designed for through-beam system applications, functioning as the receiver component within the Q20 series. This sensor operates within an ambient air temperature range of -20 to +60°C and is encased in a thermoplastic housing, ensuring durability. It features a pre-wired connection with a 6.5ft / 2m cable terminated with bare end flying leads for ease of installation. The Q20NR offers a sensing distance of up to 12m and utilizes visible red light with a wavelength of 624 nm for detection. It supports both Light-ON and Dark-ON operating modes, catering to diverse application needs. The sensor is equipped with a single digital output (NPN transistor) and boasts a rapid response time of 1ms for ON and 0.6ms for OFF operations. It is designed to operate with a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The Q20NR is protected to IP67 and NEMA 6 standards, ensuring its performance in challenging environments.
