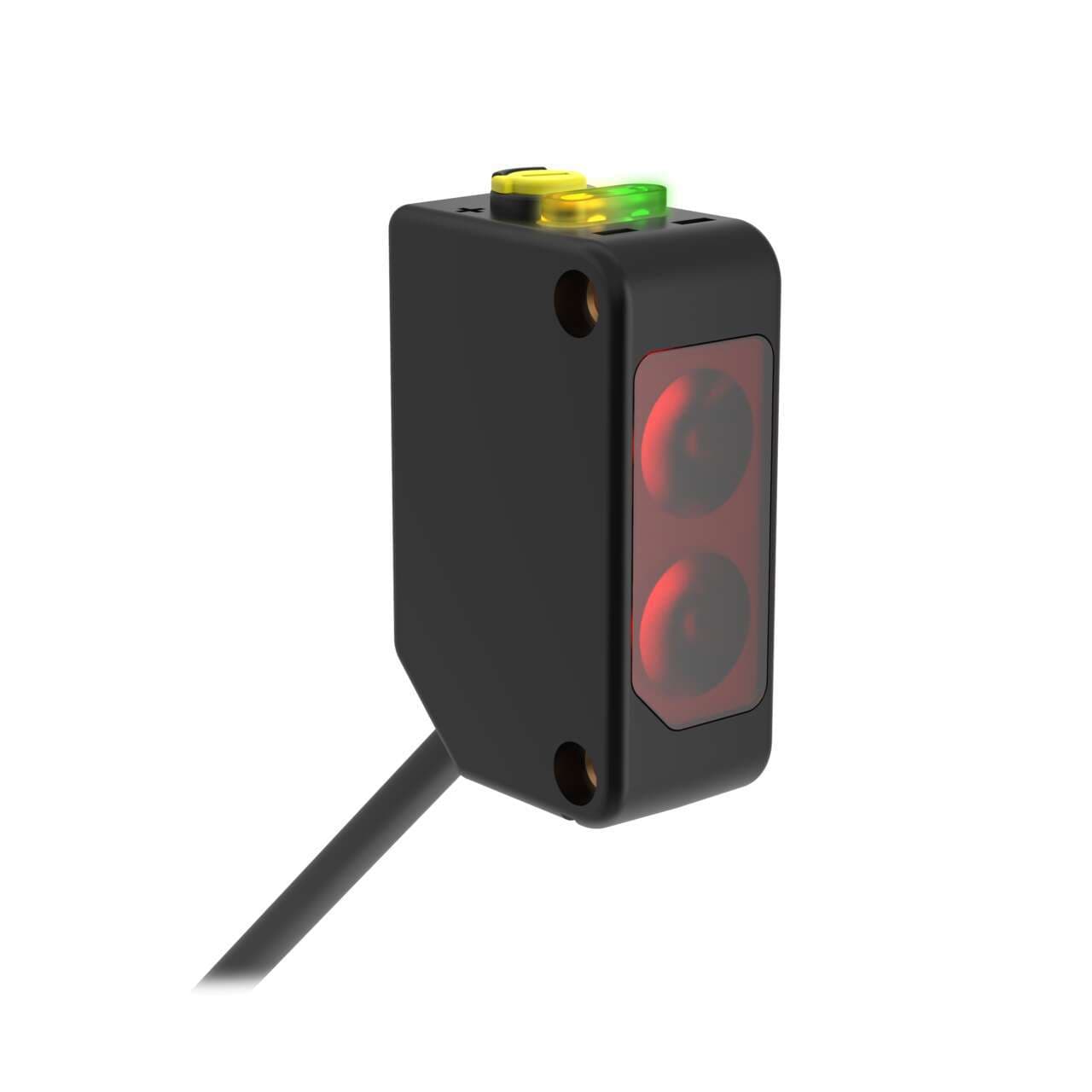

Q20PAF200 Banner Proximity Sensors
Part#:Q20PAF200
Alt. Part#:805891
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Adjustable Field; Range: 200 mm; Input: 10-30 V dc; Outputs: Complementary PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 45.3592 g
- Country Of Origin MX
- Feature: Encapsulated No
- Small Visible Spot LED
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- DeviceNet No
- Power DC
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Feature: Timing (Hold/Delay) No
- Max Sensing Distance (mm) 200
- Quick Disconnect Type No QD
- Output response time (ms) 2.8
- Barrel Diameter (mm) N/A
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -20
- IP Rating IP67
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Thermoplastic
- Special Feature: Water Detection No
- Lens Material Acrylic
- IO Link No
- Sensing Beam Visible Red LED
- Input/Output Discrete
- Sensing Beam Wavelength 632
- Repeatability (µs) 130
- Feature: Chemical Resistant No
- Housing Style Rectangular
- Connection Cable
- Max Op. Temp. (°C) 60
- Adjustments Potentiometer
- Feature: Audible No
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Outputs PNP
- Delay at Power-up (ms) 200
- Indicator LEDs
- EPLAN Cabinet Installable No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PAF200 on Powermatic Associates is $131.00. Order now.
About the product
Banner Engineering Q20PAF200 is an adjustable-field photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60°C and features a background suppression system with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads, ensuring easy installation. Part of the Q20 series, it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The sensor operates on a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is housed in a rectangular, thermoplastic casing with a Polymethyl methacrylate (PMMA) lens. It offers a sensing distance of 30mm to 200mm and utilizes visible red light with a wavelength of 632 nm. The Q20PAF200 supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor) with a response time of 2.8ms / 0.0028 s.
