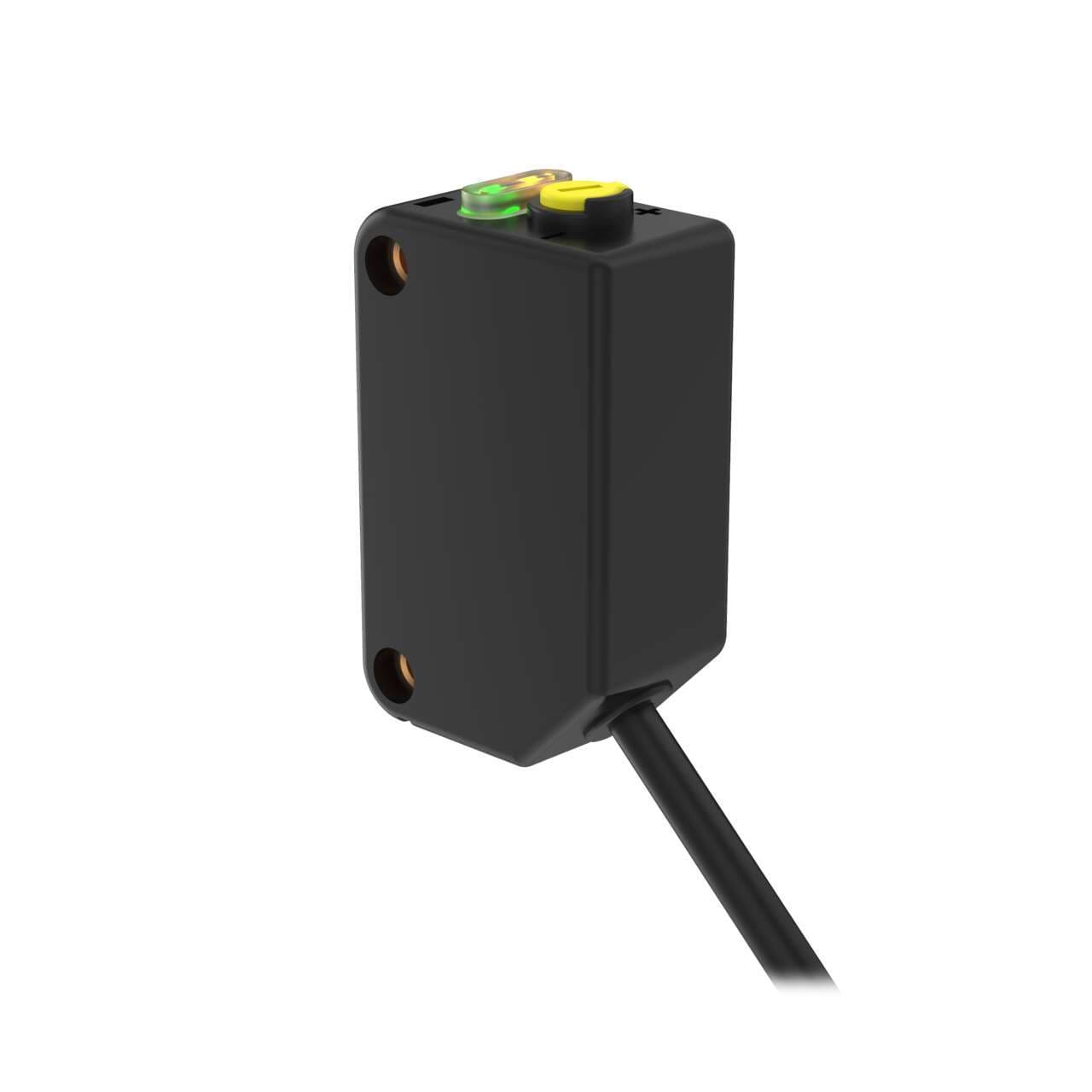

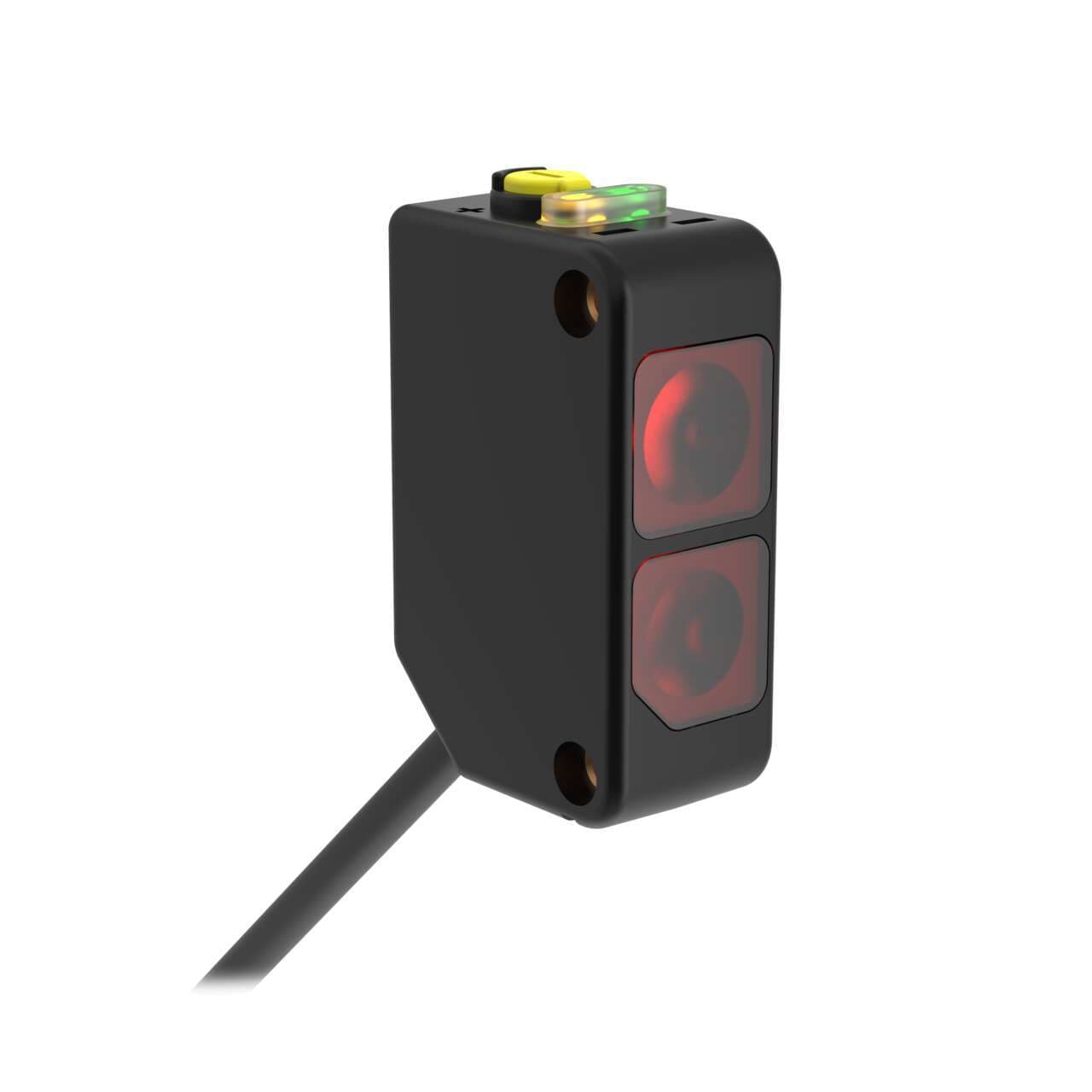

Q20PDXLQ Banner Proximity Sensors
Part#:Q20PDXLQ
Alt. Part#:78209
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Long Range Diffuse (IR); Range: 1500 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M8 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Primary brand Banner Engineering
- Sub-range name Q20 series
- Product series / family name WORLD-BEAM series
- Sensing distance 1.5m
- Main function Sensor (Photo-electric)
- Design diffuse mode
- Digital outputs 1 x digital output (PNP transistor)
- Ambient air temperature for operation -20...+60 °C
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Operating mode Light-ON Dark-ON
- Functions Long-range photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting) potentiometer adjustment
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Pico-style M8 connector
- Degree of protection IP67 NEMA 6
- Wavelength 850 nm
- Response time 0.8ms / 0.0008 s
- Compliant with standard(s) cURus CE
- Light Color Infrared (IR)
- Material thermoplastic housing
- Order code / Manufacturer SKU 78209
- Housing Style Rectangular
- Quick Disconnect Type M8 (Pico)
- Feature: Hazardous Area No
- Input/Output Discrete
- Max Op. Temp. (°C) 60
- Special Feature: Water Detection No
- Output response time (ms) 0.8
- Feature: Encapsulated No
- Sensing Mode (Detailed) Diffuse
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -20
- Feature: Timing (Hold/Delay) No
- Cable Length (m) 0.15
- Outputs PNP
- Special Feature: Remote Teach No
- EPLAN Cabinet Installable No
- Sensing Mode (General) Proximity
- Special Feature: Intrinsically Safe No
- Number of Pins 4
- Indicator LEDs
- IO Link No
- Power DC
- Max Sensing Distance (mm) 1500
- Power Supply/Supply Voltage 10-30 V dc
- Operation Light/Dark Operate
- DeviceNet No
- Feature: Audible No
- Sensing Beam Infrared LED
- Connection Pigtail QD
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- Feature: Chemical Resistant No
- NEMA Rating NEMA 6
- Max Op. Relative Humidity [%] 95% @ 50°C
- Adjustments Potentiometer
- Lens Material Acrylic
- Barrel Diameter (mm) N/A
- Repeatability (µs) 155
- IP Rating IP67
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PDXLQ on Powermatic Associates is $109.00. Order now.
About the product
Banner Engineering Q20PDXLQ is a long-range photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60 degrees Celsius and features a diffuse mode with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Pico-style M8 connector, ensuring easy installation. Part of the Q20 series, it boasts a rectangular shape and is constructed with a thermoplastic housing for durability. The Q20PDXLQ offers a sensing distance of up to 1.5 meters and utilizes infrared light with a wavelength of 850 nm for detection. It supports both Light-ON and Dark-ON operating modes to accommodate different application needs. With an IP67 NEMA 6 degree of protection, it is well-suited for challenging environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. It features one digital output (PNP transistor) and boasts a quick response time of 0.8ms (0.0008 seconds), facilitating rapid signal processing.
