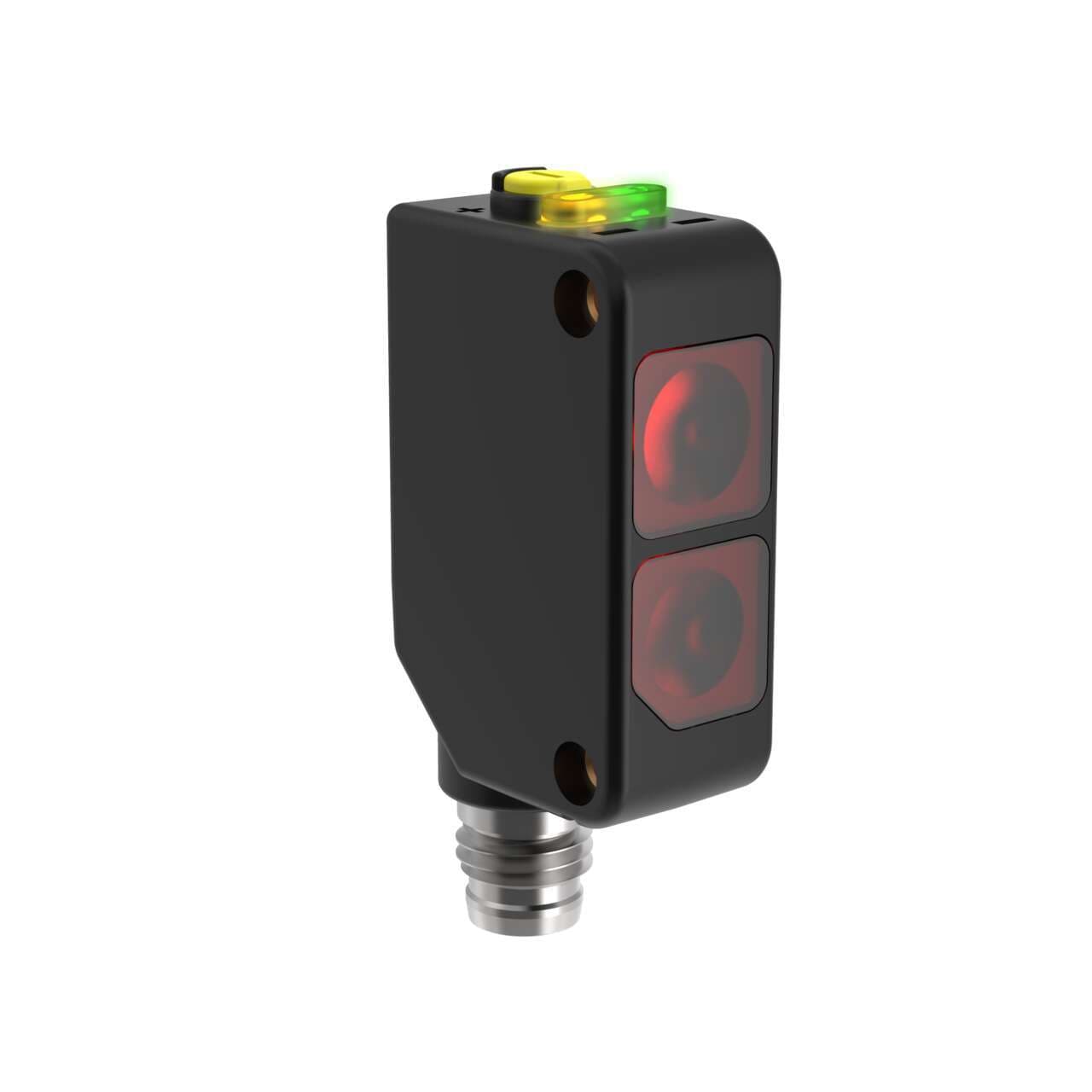

Q20PDVSQ7 Banner Proximity Sensors
Part#:Q20PDVSQ7
Alt. Part#:807432
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

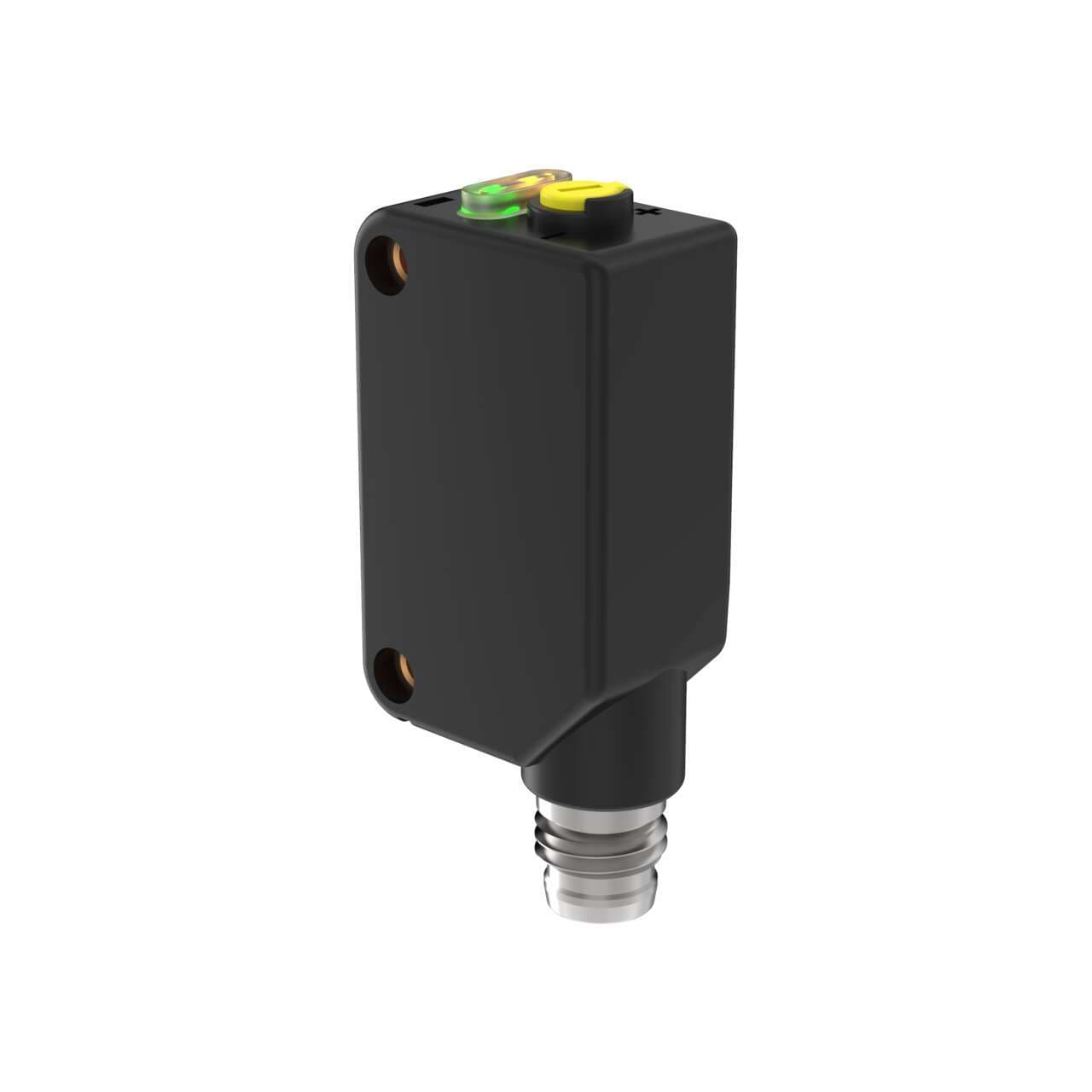

WORLD-BEAM Q20 Series: Small Spot Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; M8 Integral QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Input/Output Discrete
- Special Feature: Remote Teach No
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Repeatability (µs) 90
- Barrel Diameter (mm) N/A
- DeviceNet No
- Sensing Mode (Detailed) Diffuse
- Operation Light/Dark Operate
- IP Rating IP67
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Outputs PNP
- Output response time (ms) 0.85
- Feature: Encapsulated No
- Max Sensing Distance (mm) 250
- Max Op. Temp. (°C) 60
- Sensing Beam Wavelength 660
- IO Link No
- Primary Housing Material ABS
- Min Op. Temp. (°C) -20
- NEMA Rating NEMA 6
- Feature: Audible No
- Sensing Mode (General) Proximity
- Small Visible Spot LED
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Housing Style Rectangular
- Quick Disconnect Type M8 (Pico)
- Number of Pins 4
- Adjustments Potentiometer
- Power DC
- Connection Integral QD
- Delay at Power-up (ms) 100
- Opposed Mode Emitter/Receiver N/A
- EPLAN Cabinet Installable No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PDVSQ7 on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20PDVSQ7 is a photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60°C and features a diffuse (small spot) system with potentiometer adjustment for fine-tuning. It comes pre-equipped with a 4-pin Pico-style M8 connector for easy integration into existing systems. As part of the Q20 series, it boasts a rectangular shape and is constructed with a thermoplastic housing and a Polymethyl methacrylate (PMMA) lens, ensuring durability. The Q20PDVSQ7 offers a sensing distance of 250mm and utilizes visible red light with a wavelength of 660 nm for detection. It supports both Light-ON and Dark-ON operating modes to accommodate different application needs. With a degree of protection rated at IP67 NEMA 6, it is well-suited for challenging environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and includes 1 x digital output (PNP transistor) with a rapid response time of 0.8ms / 0.0008 s.
