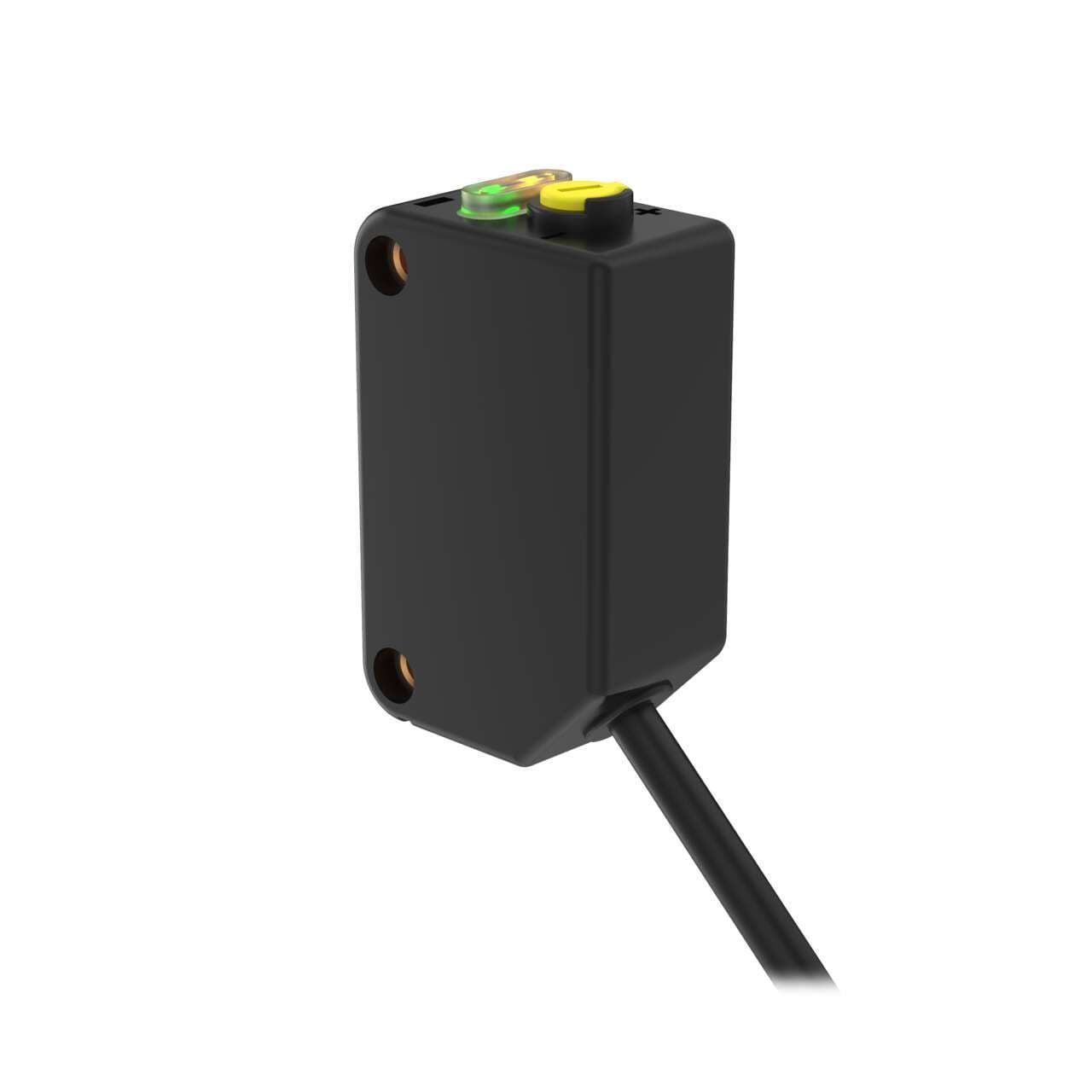

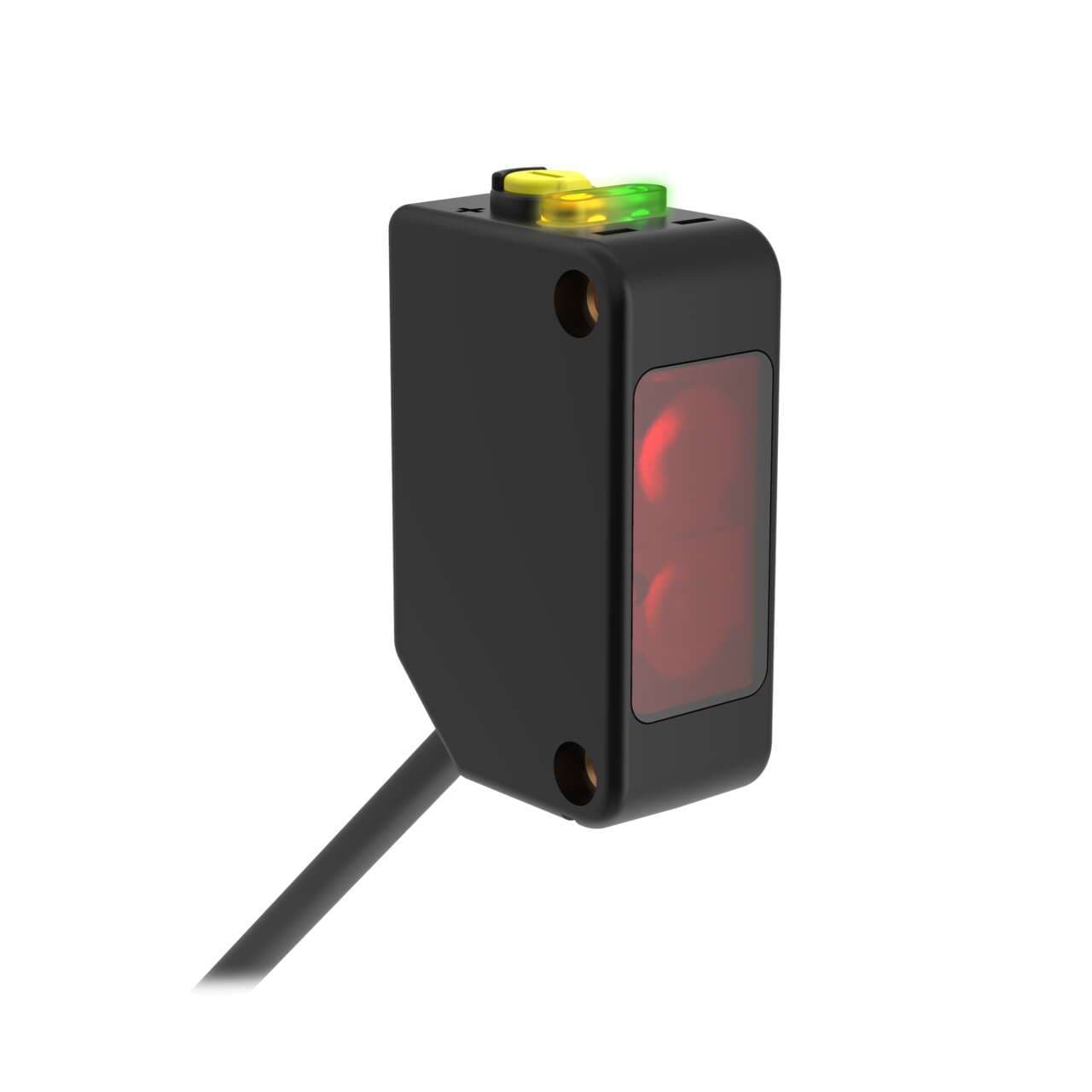

Q20PLPQ5 Banner Proximity Sensors
Part#:Q20PLPQ5
Alt. Part#:78193
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Polarized Retro; Range: 4 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Power DC
- Min Op. Temp. (°C) -20
- Repeatability (µs) 155
- Feature: Chemical Resistant No
- Primary Housing Material Thermoplastic
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Indicator LEDs
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 645
- Feature: Timing (Hold/Delay) No
- Delay at Power-up (ms) 100
- IO Link No
- Cable Length (m) 0.15
- Quick Disconnect Type M12 (Euro)
- Sensing Mode (Detailed) Polarized
- Output response time (ms) 0.8
- Lens Material Acrylic
- Feature: Audible No
- DeviceNet No
- Sensing Mode (General) Retroreflective
- Outputs PNP
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Housing Style Rectangular
- Max Op. Temp. (°C) 60
- Number of Pins 4
- Feature: Encapsulated No
- Max Sensing Distance (mm) 4000
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Hazardous Area No
- Connection Pigtail QD
- IP Rating IP67
- Barrel Diameter (mm) N/A
- Input/Output Discrete
- Adjustments Potentiometer
- EPLAN Cabinet Installable No
- Special Feature: Remote Teach No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PLPQ5 on Powermatic Associates is $109.00. Order now.
About the product
Banner Engineering Q20PLPQ5 is a polarized photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +60°C and features a retro-reflective mode with potentiometer adjustment for fine-tuning. It comes pre-wired with a 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector, ensuring easy installation. Part of the Q20 series, it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The Q20PLPQ5 requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is housed in a durable thermoplastic casing. It offers a sensing distance of up to 4 meters and utilizes visible red light (645 nm wavelength) for detection. This sensor supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP transistor) with a rapid response time of 0.8ms (0.0008 seconds).
