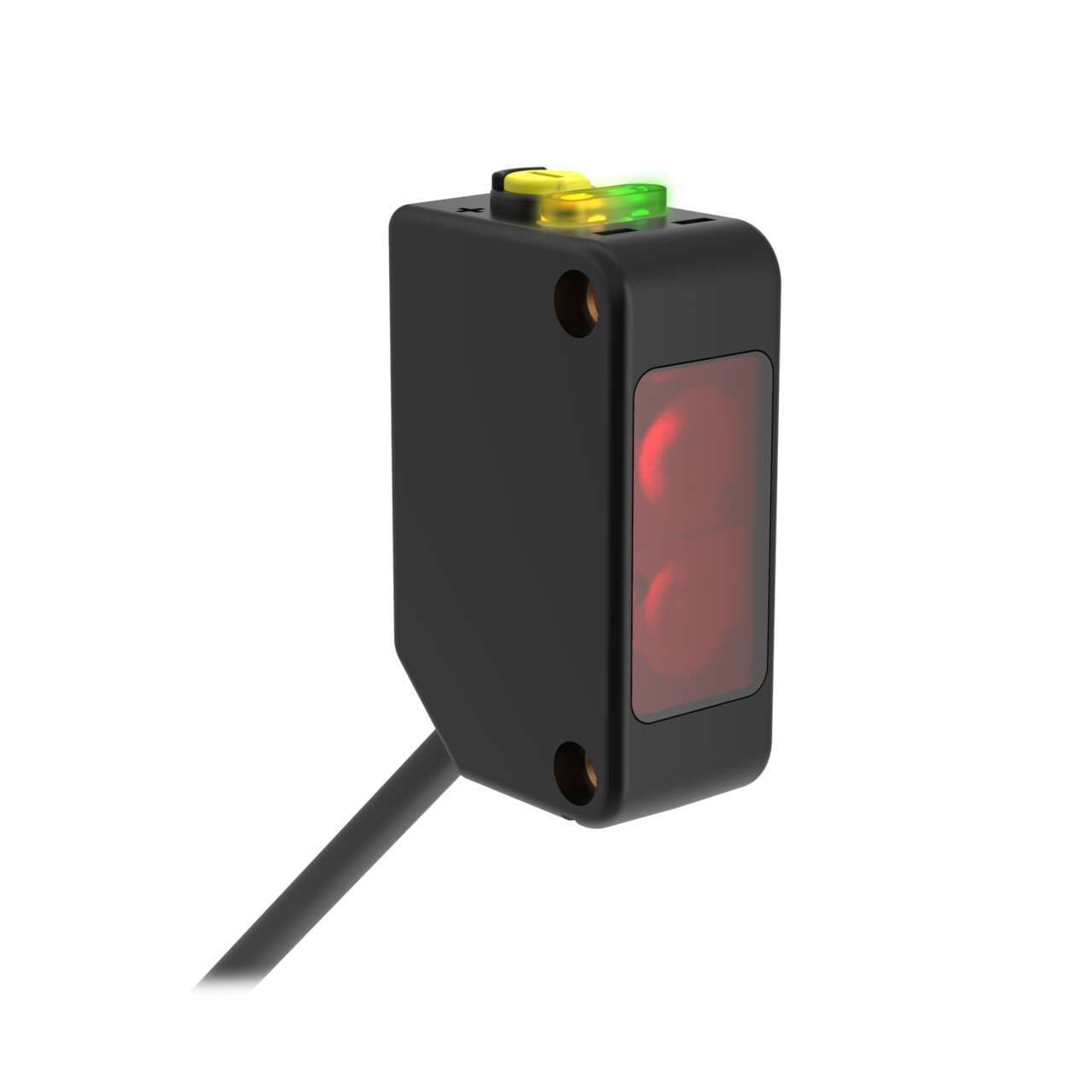

Q20PLVQ5 Banner Proximity Sensors
Part#:Q20PLVQ5
Alt. Part#:78195
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM Q20 Series: Retro; Range: 6 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Wavelength 645 nm
- Digital outputs 1 x digital output (PNP transistor)
- Order code / Manufacturer SKU 78195
- Primary brand Banner Engineering
- Sensing distance 6m
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 4-pin Euro-style M12 connector
- Product series / family name WORLD-BEAM series
- Functions Photo-electric sensor green LED (power ON) amber LED (black (LO) wire conducting) potentiometer adjustment
- Light Color Visible red
- Response time 0.8ms / 0.0008 s
- Compliant with standard(s) cURus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Ambient air temperature for operation -20...+60 °C
- Main function Sensor (Photo-electric)
- Sub-range name Q20 series
- Design retro-reflective mode
- Operating mode Light-ON Dark-ON
- Material thermoplastic housing
- Degree of protection IP67 NEMA 6
- Sensing Mode (General) Retroreflective
- Output response time (ms) 0.8
- Number of Pins 4
- Feature: Hazardous Area No
- Input/Output Discrete
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Housing Style Rectangular
- Connection Pigtail QD
- Special Feature: Remote Teach No
- Repeatability (µs) 155
- IO Link No
- Cable Length (m) 0.15
- Min Op. Temp. (°C) -20
- Adjustments Potentiometer
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 60
- Special Feature: Water Detection No
- Indicator LEDs
- Outputs PNP
- Max Sensing Distance (mm) 6000
- IP Rating IP67
- Feature: Encapsulated No
- Delay at Power-up (ms) 100
- Feature: Audible No
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Non-Polarized
- Operation Light/Dark Operate
- NEMA Rating NEMA 6
- Barrel Diameter (mm) N/A
- Power DC
- Quick Disconnect Type M12 (Euro)
- Sensing Beam Wavelength 645
- Feature: Timing (Hold/Delay) No
- EPLAN Cabinet Installable No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PLVQ5 on Powermatic Associates is $109.00. Order now.
About the product
Banner Engineering Q20PLVQ5 is a photo-electric sensor from the Q20 series designed for a variety of detection applications. This sensor operates in a retro-reflective mode with potentiometer adjustment and is equipped with a pre-wired 6" / 150mm pigtail terminated with a 4-pin Euro-style M12 connector. It functions within an ambient air temperature range of -20 to +60°C and offers a sensing distance of up to 6 meters. The Q20PLVQ5 features a rectangular, thermoplastic housing and provides a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. It operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor emits visible red light at a wavelength of 645 nm and supports both Light-ON and Dark-ON operating modes. It includes 1 x digital output (PNP transistor) and boasts a quick response time of 0.8ms / 0.0008 s.
