Q20PD Banner Proximity Sensors
Part#:Q20PD
Alt. Part#:77757
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description

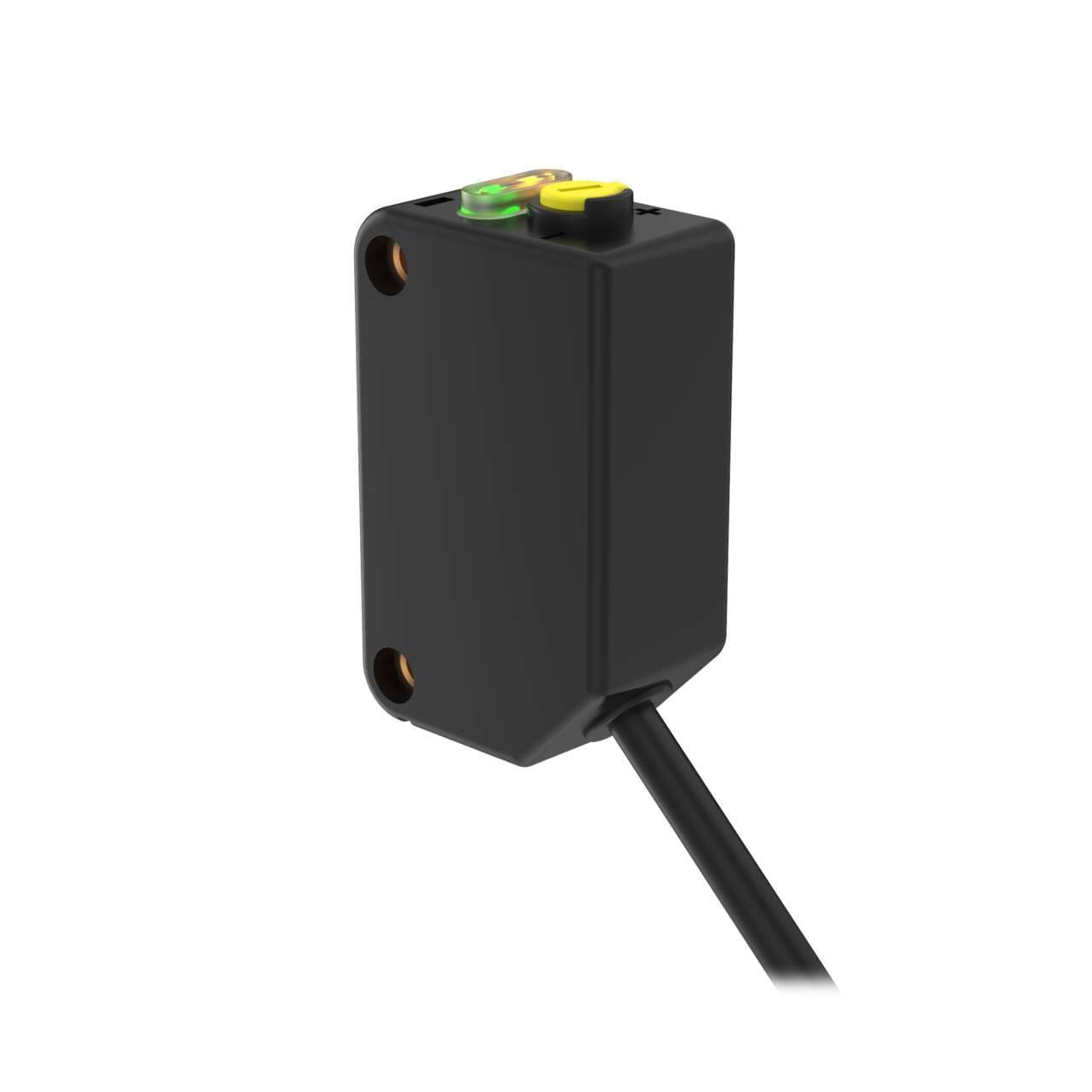

WORLD-BEAM Q20 Series: Diffuse (Red); Range: 250 mm; Input 10-30 V dc; Output: Complementary Solid-State PNP; 2 m (6.5 ft) Cable
Product Details
- Weight 45.3592 g
- Country Of Origin CN
- Max Sensing Distance (mm) 250
- Connection Cable
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- Sensing Mode (General) Proximity
- Outputs PNP
- Special Feature: Intrinsically Safe No
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Sensing Beam Visible Red LED
- Special Feature: Remote Teach No
- Max Op. Relative Humidity [%] 95% @ 50°C
- Feature: Audible No
- Power DC
- Output response time (ms) 0.8
- Adjustments Potentiometer
- DeviceNet No
- Sensing Beam Wavelength 655
- Opposed Mode Emitter/Receiver N/A
- IO Link No
- Cable Length (m) 2
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 100
- Barrel Diameter (mm) N/A
- Housing Style Rectangular
- Operation Light/Dark Operate
- Special Feature: Water Detection No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Number of Pins 4
- Feature: Encapsulated No
- Primary Housing Material Thermoplastic
- Max Op. Temp. (°C) 60
- Repeatability (µs) 155
- Indicator LEDs
- Sensing Mode (Detailed) Diffuse
- Quick Disconnect Type No QD
- EPLAN Cabinet Installable No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PD on Powermatic Associates is $100.00. Order now.
About the product
Banner Engineering Q20PD is a photo-electric sensor from the Q20 series, designed with a diffuse mode potentiometer adjustment. It operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic material, ensuring durability. This sensor is pre-wired with a 6.5ft / 2m cable that terminates with bare end flying leads for easy connection. It offers a sensing distance of 250mm and utilizes visible red light with a wavelength of 624 nm. The Q20PD operates in both Light-ON and Dark-ON modes, catering to diverse application needs. It features a single digital output (PNP transistor) and boasts a quick response time of 0.8ms / 0.0008 s. The device is powered by a supply voltage ranging from 10Vdc to 30Vdc (with 12Vdc / 24Vdc nominal) and is protected to IP67 NEMA 6 standards, making it suitable for challenging environments.
