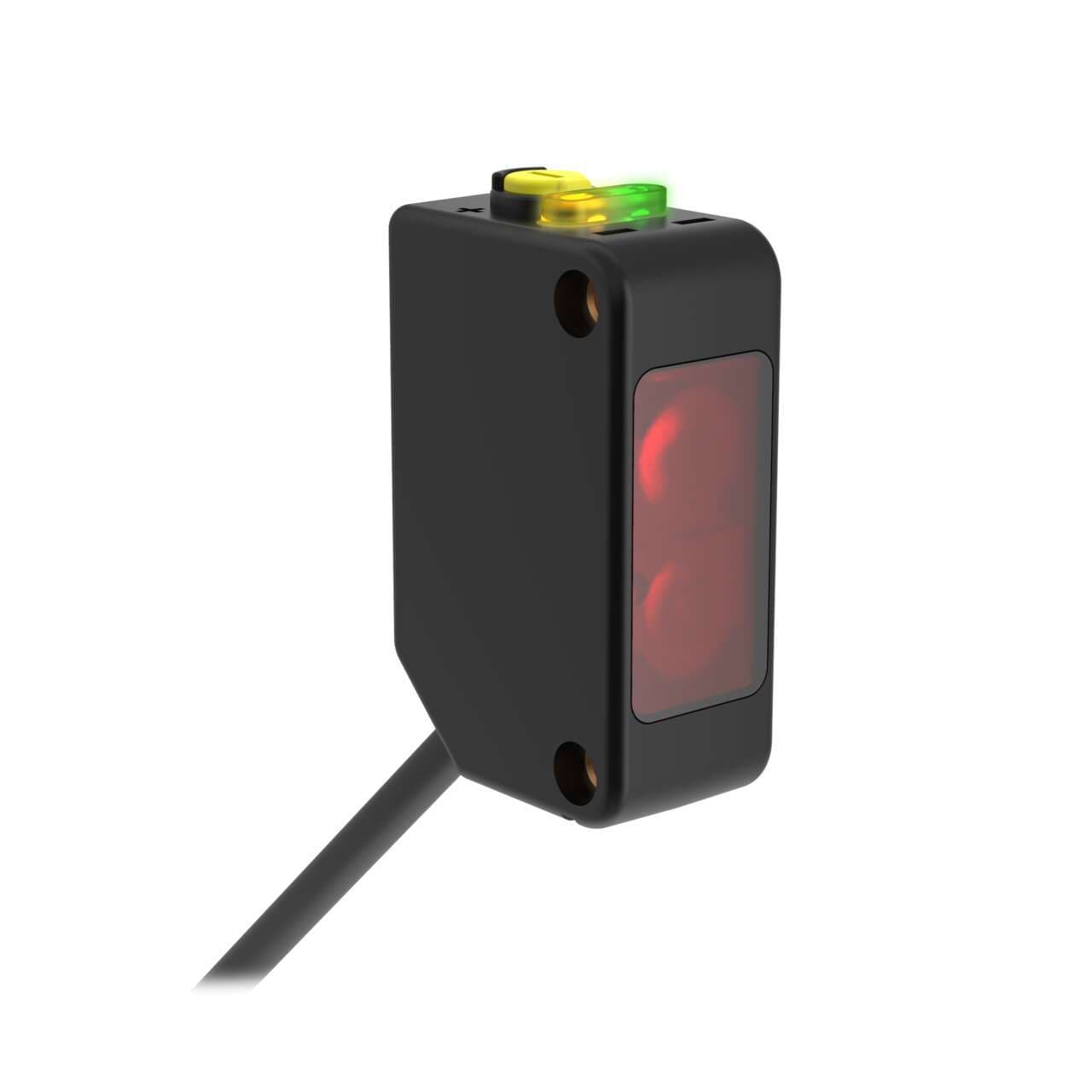

Q20PLP W/30 Banner Proximity Sensors

Q20PLP W/30 on Powermatic Associates
Banner
  • Q20PLP W/30
  • Q20PLP W/30

Part#:Q20PLP W/30

Alt. Part#:77787

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM Q20 Series: Polarized Retro; Range: 4 m; Input 10-30 V dc; Output: Complementary Solid-State PNP; 9 m (30 ft) Cable

Product Details

  • Weight
    148.778176 g
  • Country Of Origin
    MX
  • Max Sensing Distance (mm)
    4000
  • Special Feature: Remote Teach
    No
  • Feature: Audible
    No
  • Housing Style
    Rectangular
  • Operation
    Light/Dark Operate
  • Sensing Beam Wavelength
    645
  • Feature: Timing (Hold/Delay)
    No
  • Primary Housing Material
    Thermoplastic
  • Max Op. Temp. (°C)
    60
  • Number of Pins
    4
  • Barrel Diameter (mm)
    N/A
  • DeviceNet
    No
  • Sensing Beam
    Visible Red LED
  • Output response time (ms)
    0.8
  • Outputs
    PNP
  • Lens Material
    Acrylic
  • Feature: Chemical Resistant
    No
  • Sensing Mode (General)
    Retroreflective
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Intrinsically Safe
    No
  • NEMA Rating
    NEMA 6
  • Feature: Hazardous Area
    No
  • Cable Length (m)
    9
  • Quick Disconnect Type
    No QD
  • IP Rating
    IP67
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Feature: Encapsulated
    No
  • Power
    DC
  • Repeatability (µs)
    155
  • Opposed Mode Emitter/Receiver
    N/A
  • IO Link
    No
  • Input/Output
    Discrete
  • Special Feature: Water Detection
    No
  • Min Op. Temp. (°C)
    -20
  • Indicator
    LEDs
  • Sensing Mode (Detailed)
    Polarized
  • Connection
    Cable
  • Delay at Power-up (ms)
    100
  • Adjustments
    Potentiometer
  • EPLAN Cabinet Installable
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q20PLP W/30 on Powermatic Associates is $129.00. Order now.

About the product

Banner Engineering Q20PLP W/30 is a polarized photo-electric sensor designed for a variety of applications, featuring a retro-reflective mode with potentiometer adjustment. This sensor operates within an ambient air temperature range of -20 to +60°C and is housed in a thermoplastic material, ensuring durability. It comes pre-wired with a 30ft / 9m cable that terminates with bare end flying leads for easy installation. The Q20PLP W/30, part of the Q20 series, offers a sensing distance of up to 4m and emits visible red light with a wavelength of 645 nm. It supports both Light-ON and Dark-ON operating modes for increased versatility. This sensor is equipped with a single digital output (PNP transistor) and boasts a rapid response time of 0.8ms / 0.0008 s. It requires a supply voltage of 10Vdc-30Vdc (12Vdc / 24Vdc nom.) and is protected against ingress with an IP67 NEMA 6 rating, making it suitable for challenging environments.
