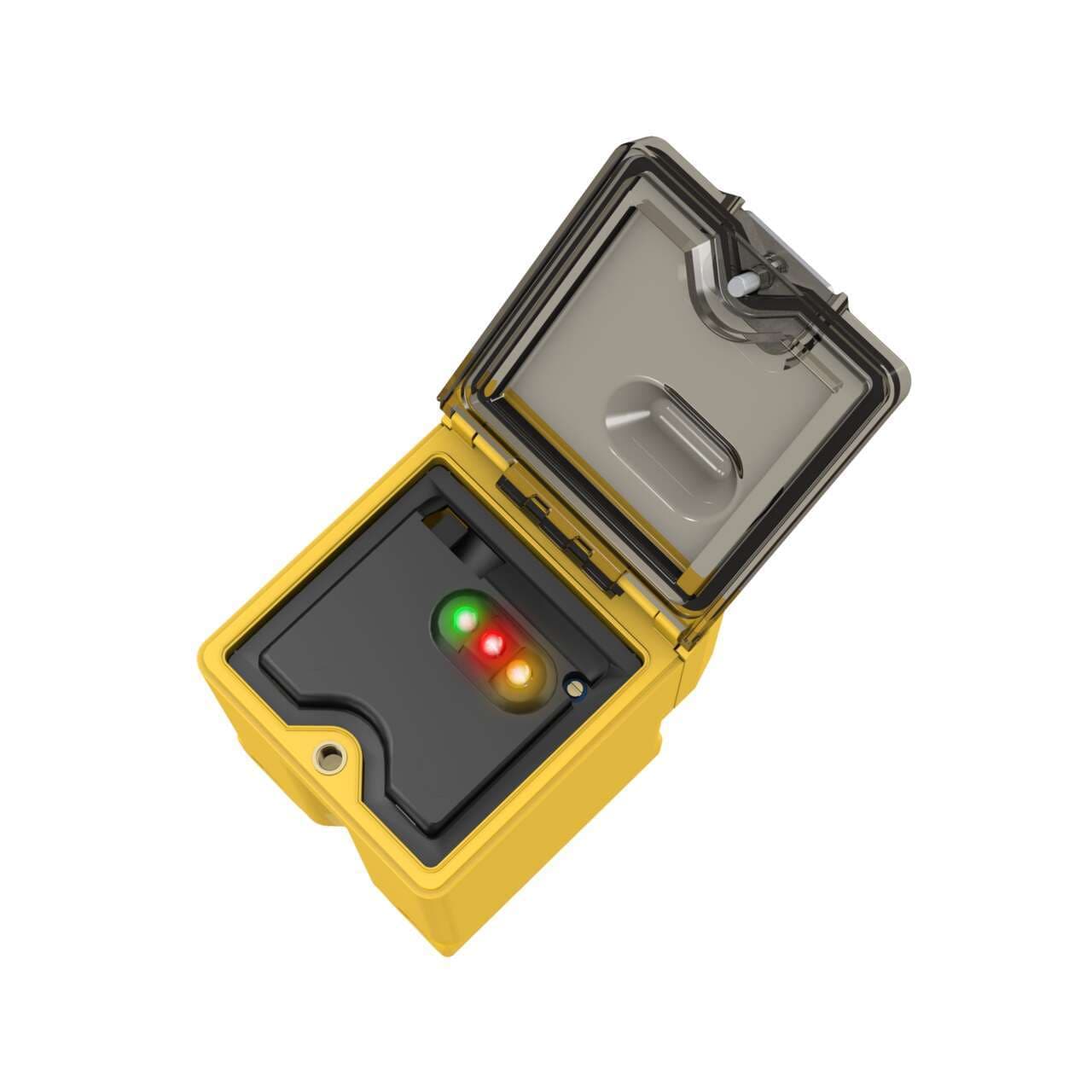

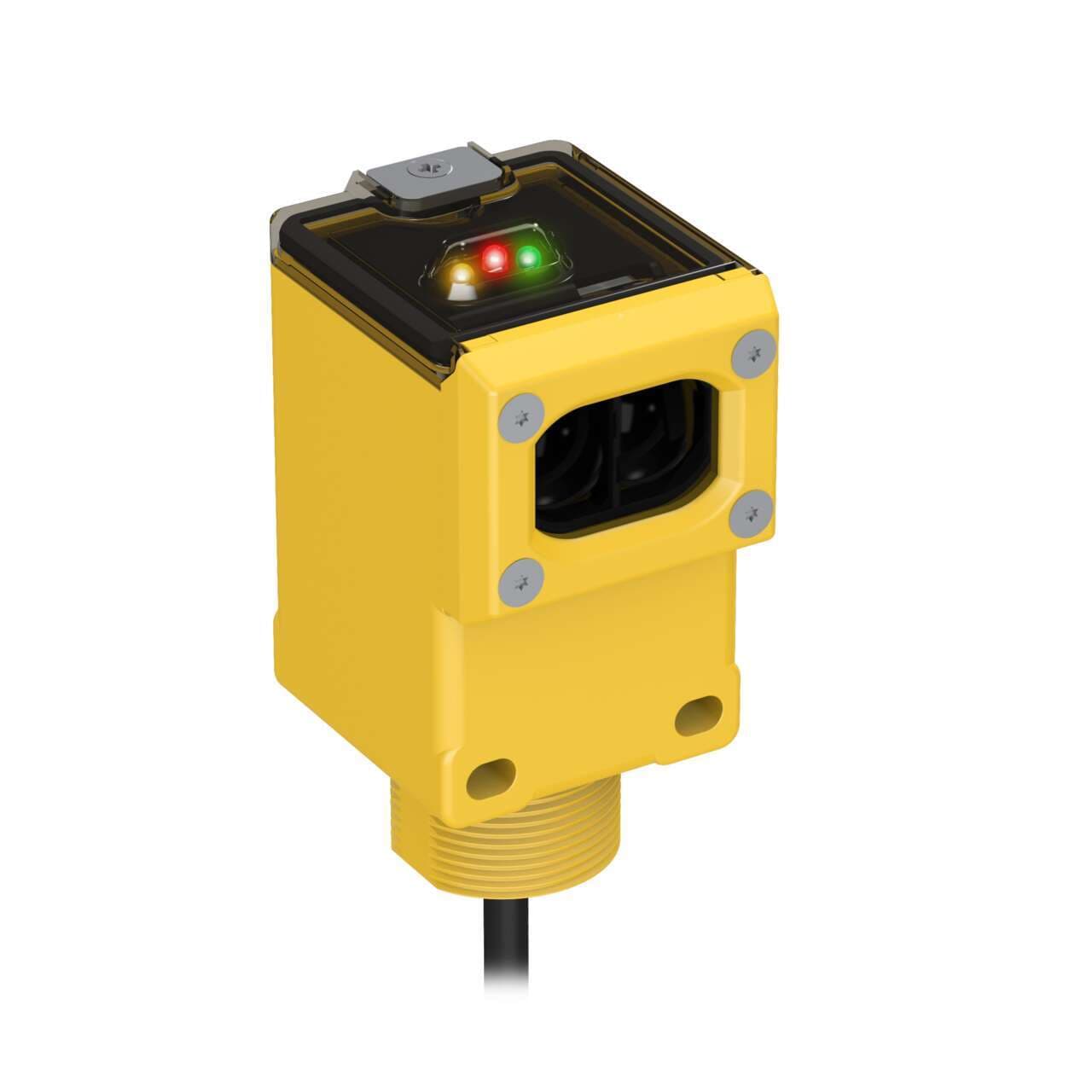

Q45BB6DL Banner Proximity Sensors

Product Details

• Weight
  326.58624 g
• Country Of Origin
  US
• Primary brand
  Banner Engineering
• Sensing distance
  1.8m
• Mounting mode
  Threaded mount
• Product series / family name
  Q series
• Design
  diffuse mode
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Operating mode
  Light-ON Dark-ON
• Ambient air temperature for operation
  -40...+70 °C
• Sub-range name
  Q45BB6
• Wavelength
  880 nm
• Shape
  Rectangular
• Order code / Manufacturer SKU
  36559
• Main function
  Sensor (Photo-electric)
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Thread size
  M30
• Response time
  2ms / 0.002 s
• Functions
  Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
• Light Color
  Infrared (IR)
Digital outputs
1 x digital output (PNP/NPN transistor)
Compliant with standard(s)
cURus cCSAus CE
Degree of protection
IP67 NEMA 6P
Material
thermoplastic housing Acrylic lns.
Max Sensing Distance (mm)
1800
Power Supply/Supply Voltage
10-30 V dc
NEMA Rating
NEMA 6P
Feature: Encapsulated
No
Sensing Mode (Detailed)
Diffuse
Quick Disconnect Type
No QD
Special Feature: Water Detection
No
Barrel Diameter (mm)
30
Sensing Beam
Infrared LED
Min Op. Temp. (°C)
-40
Number of Pins
4
Feature: Hazardous Area
No
Power
DC
Connection
Cable
IP Rating
IP67
Feature: Audible
No
Primary Housing Material
Thermoplastic
Input/Output
Discrete
Max Op. Temp. (°C)
70
Output response time (ms)
2
Cable Length (m)
2
Outputs
Bipolar (NPN & PNP)
Special Feature: Remote Teach
No
Lens Material
Acrylic
Opposed Mode Emitter/Receiver
N/A
Sensing Mode (General)
Proximity
Operation
Light/Dark Operate
Repeatability (µs)
500
Feature: Chemical Resistant
No
Housing Style
Rectangular
Special Feature: Intrinsically Safe
No
Adjustments
Potentiometer
DeviceNet
No
Feature: Timing (Hold/Delay)
Yes
Delay at Power-up (ms)
100
Max Op. Relative Humidity [%]
90% @ 50°C
IO Link
No
Indicator
LEDs
