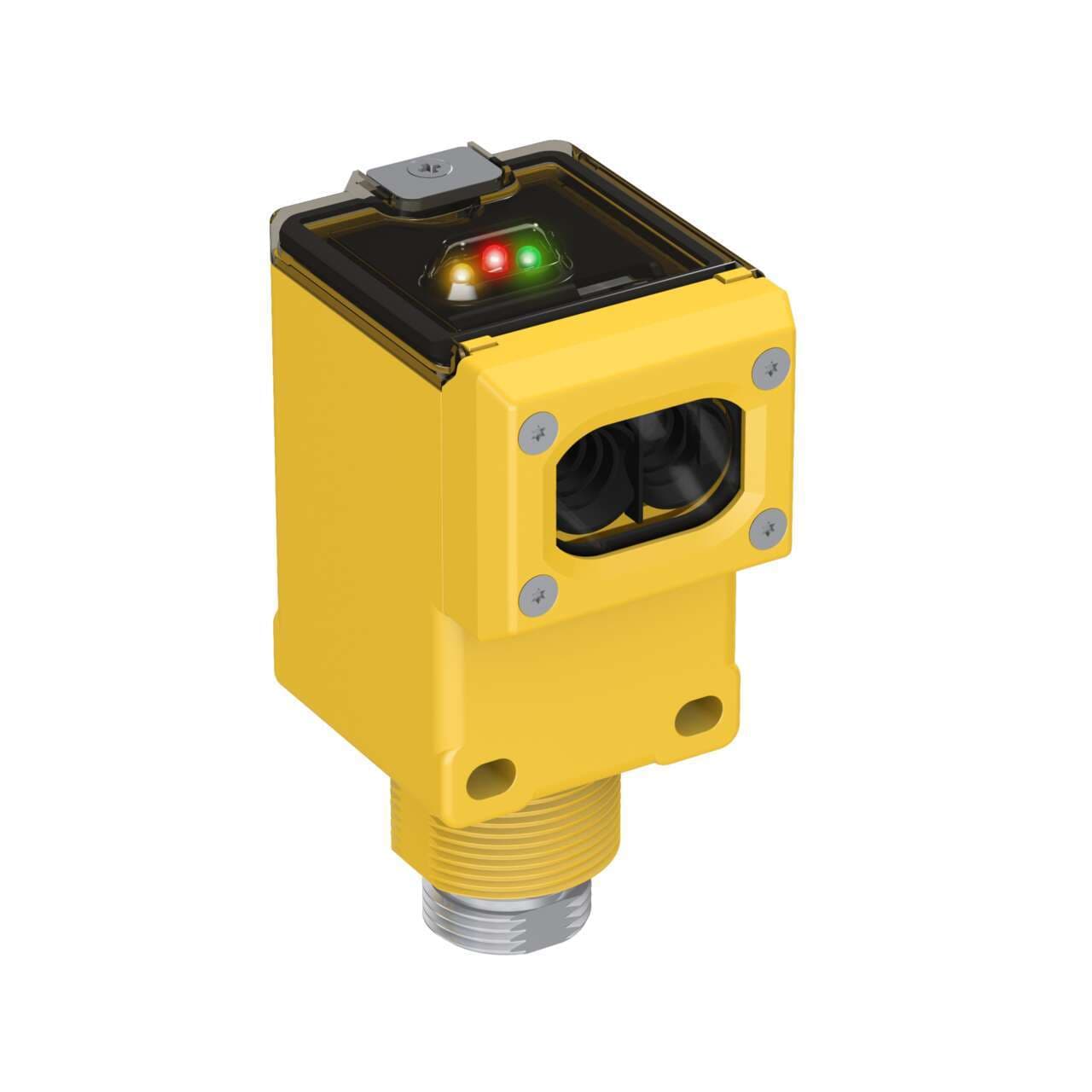

Q45BW13DQ Banner Proximity Sensors

Name: Q45BW13DQ
Brand: Banner
Price: 177 USD
Availability: BackOrder

Part#:Q45BW13DQ

Alt. Part#:54319

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

Q45 Series: Diffuse; Range: 450 mm; Input: 12-250 V dc / 24-250 V ac; Output: SPST Solid-State Relay; 4-pin Mini Integral QD

Product Details

Weight
272.1552 g
Country Of Origin
US
Sub-range name
Q45BW13
Main function
Sensor (Photo-electric)
Supply voltage (AC)
24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
Functions
Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
Product series / family name
Q series
Design
diffuse mode
Shape
Rectangular
Degree of protection
IP67 NEMA 6P
Primary brand
Banner Engineering
Supply voltage (DC)
12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
Thread size
M30
Operating mode
Light-ON Dark-ON
Compliant with standard(s)
cURus CCC cCSAus CE
Light Color
Infrared (IR)
Connection type
Pre-equipped with 4-pin 7/8" Mini connector
Digital outputs
1 x digital output (Solid-state AC output; SPST contact type)
Ambient air temperature for operation
-25...+55 °C
Sensing distance
450mm

Mounting mode

Threaded mount

Material

thermoplastic housing Acrylic lns.

Wavelength

880 nm

Response time

2ms / 0.002 s

Order code / Manufacturer SKU

54319

Outputs

Solid-State AC Switch

Special Feature: Intrinsically Safe

Max Op. Relative Humidity [%]

90% @ 50°C

Feature: Encapsulated

Power

AC/DC Universal

Min Op. Temp. (°C)

-25

Delay at Power-up (ms)

100

Barrel Diameter (mm)

Housing Style

Rectangular

Power Supply/Supply Voltage

12-250 V dc or 24-250 V ac

Repeatability (µs)

500

Indicator

LEDs

Sensing Mode (General)

Proximity

Max Sensing Distance (mm)

450

Quick Disconnect Type

7/8 in. (Mini)

Output response time (ms)

Special Feature: Water Detection

NEMA Rating

NEMA 6P

Feature: Timing (Hold/Delay)

Yes

Input/Output

Solid-State AC Switch

Max Op. Temp. (°C)

Adjustments

Potentiometer

DeviceNet

Sensing Mode (Detailed)

Diffuse

Special Feature: Remote Teach

Number of Pins

Opposed Mode Emitter/Receiver

N/A

Primary Housing Material

Thermoplastic

Operation

Light/Dark Operate

IP Rating

IP67

Feature: Audible

Connection

Integral QD

Sensing Beam

Infrared LED

Lens Material

Acrylic

Feature: Hazardous Area

Feature: Chemical Resistant

IO Link

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BW13DQ on Powermatic Associates is $177.00. Order now.

About the product

Banner Engineering Q45BW13DQ is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It comes with an M30 threaded mount for secure installation and operates within an ambient air temperature range of -25 to +55°C. This sensor is equipped with a 4-pin 7/8" mini connector for straightforward connectivity. It supports a wide supply voltage range, accepting 24Vac-250Vac (with 200Vac, 220Vac, and 240Vac as nominal values) and 12Vdc-250Vdc (with 24Vdc, 48Vdc, and 120Vdc as nominal values). The Q45BW13 series sensor boasts an IP67 NEMA 6P degree of protection, ensuring durability in challenging environments. Its thermoplastic housing and acrylic lens are designed to withstand industrial conditions. With a sensing distance of 450mm and operating in both Light-ON and Dark-ON modes, this sensor utilizes infrared light with a wavelength of 880 nm for detection. It provides a quick response time of 2ms / 0.002 s and features a single digital output (Solid-state AC output; SPST contact type) for reliable signaling.
