Q45BB6CV4Q Banner Electronic Components

Q45BB6CV4Q on Powermatic Associates
Banner

Part#:Q45BB6CV4Q

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

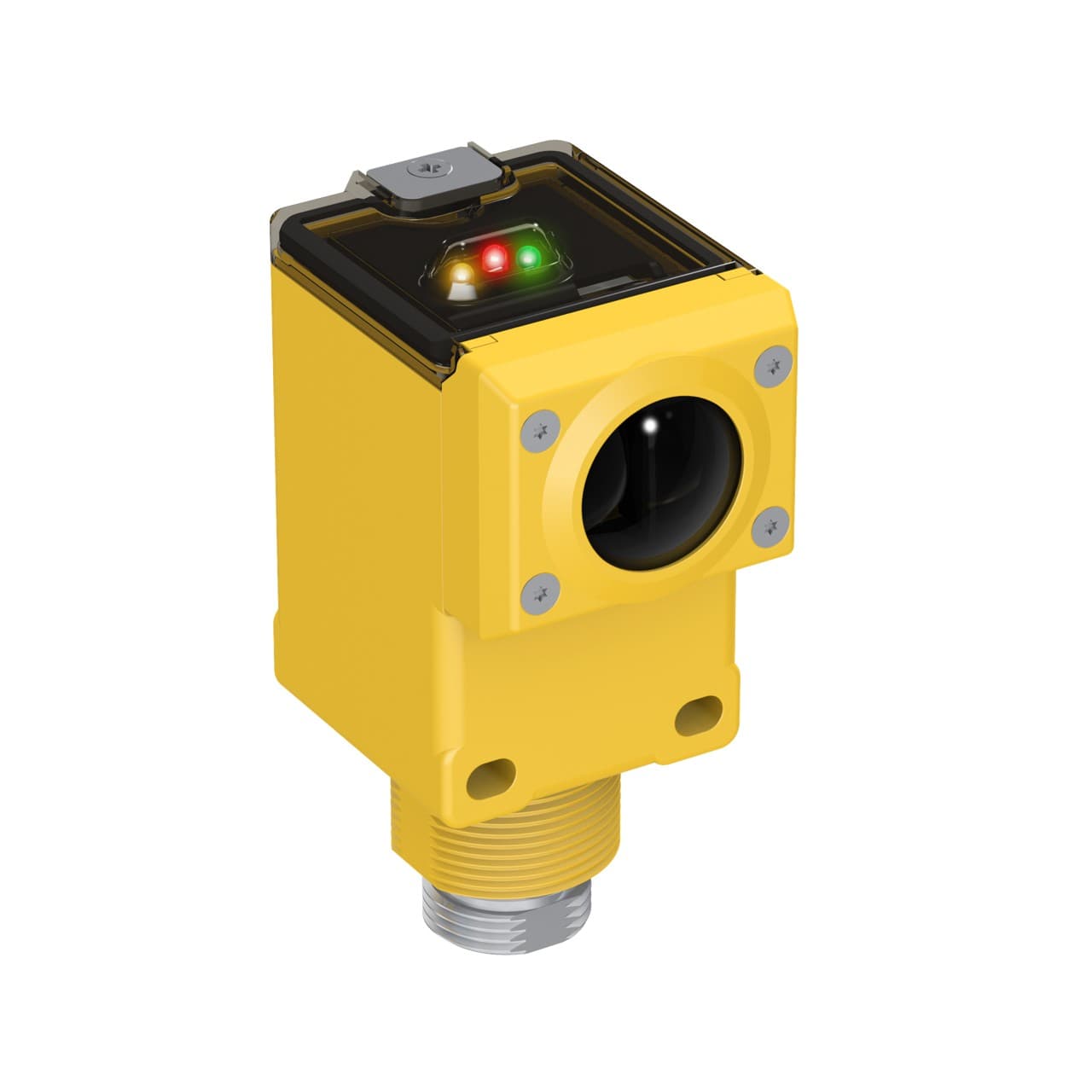

Banner Engineering Q45BB6CV4Q is a photo-electric sensor designed for precision detection in industrial environments. This sensor features a convergent mode with potentiometer adjustment and is mounted using an M30 threaded mount. It operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The Q45BB6CV4Q is equipped with a 4-pin 7/8" mini connector for straightforward connectivity. It belongs to the Q45BB6 series and offers a protection degree of IP67 NEMA 6P, making it suitable for challenging conditions. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is designed for easy integration into various setups. With a sensing distance of 100mm and a visible red light of 680 nm wavelength, it provides clear detection. The operating modes include Light-ON and Dark-ON, complemented by a digital output (PNP/NPN transistor) for versatile signaling. The response time is rapid at 2ms / 0.002 s, facilitating quick detection for efficient automation processes.

Product Details

  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Wavelength
    680 nm
  • Functions
    Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
  • Main function
    Sensor (Photo-electric)
  • Design
    convergent mode
  • Shape
    Rectangular
  • Connection type
    Pre-equipped with 4-pin 7/8" Mini connector
  • Compliant with standard(s)
    cURus cCSAus CE
  • Product series / family name
    Q series
  • Sensing distance
    100mm
  • Thread size
    M30
  • Mounting mode
    Threaded mount
  • Order code / Manufacturer SKU
    37010
  • Sub-range name
    Q45BB6
  • Light Color
    Visible red
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Material
    thermoplastic housing Acrylic lns.
  • Operating mode
    Light-ON Dark-ON
  • Degree of protection
    IP67 NEMA 6P
  • Response time
    2ms / 0.002 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Sensing Beam
    Visible Red LED
  • Min Op. Temp. (°C)
    -40
  • Adjustments
    Potentiometer
  • Feature: Chemical Resistant
    No
  • Power
    DC
  • Max Op. Temp. (°C)
    70
  • Sensing Mode (General)
    Proximity
  • Power Supply/Supply Voltage
    10-30 V dc
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Convergent
  • Output response time (ms)
    2
  • Delay at Power-up (ms)
    100
  • Feature: Timing (Hold/Delay)
    Yes
  • Outputs
    Bipolar (NPN & PNP)
  • IP Rating
    IP67
  • Special Feature: Remote Teach
    No
  • Input/Output
    Discrete
  • Repeatability (µs)
    500
  • Barrel Diameter (mm)
    30
  • IO Link
    No
  • Max Sensing Distance (mm)
    100
  • Connection
    Integral QD
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Hazardous Area
    No
  • Housing Style
    Rectangular
  • Operation
    Light/Dark Operate
  • Number of Pins
    4
  • Indicator
    LEDs
  • Primary Housing Material
    Thermoplastic
  • Quick Disconnect Type
    7/8 in. (Mini)
  • Sensing Beam Wavelength
    680
  • Opposed Mode Emitter/Receiver
    N/A
  • DeviceNet
    No
  • Special Feature: Water Detection
    No
  • NEMA Rating
    NEMA 6P
  • Feature: Encapsulated
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
