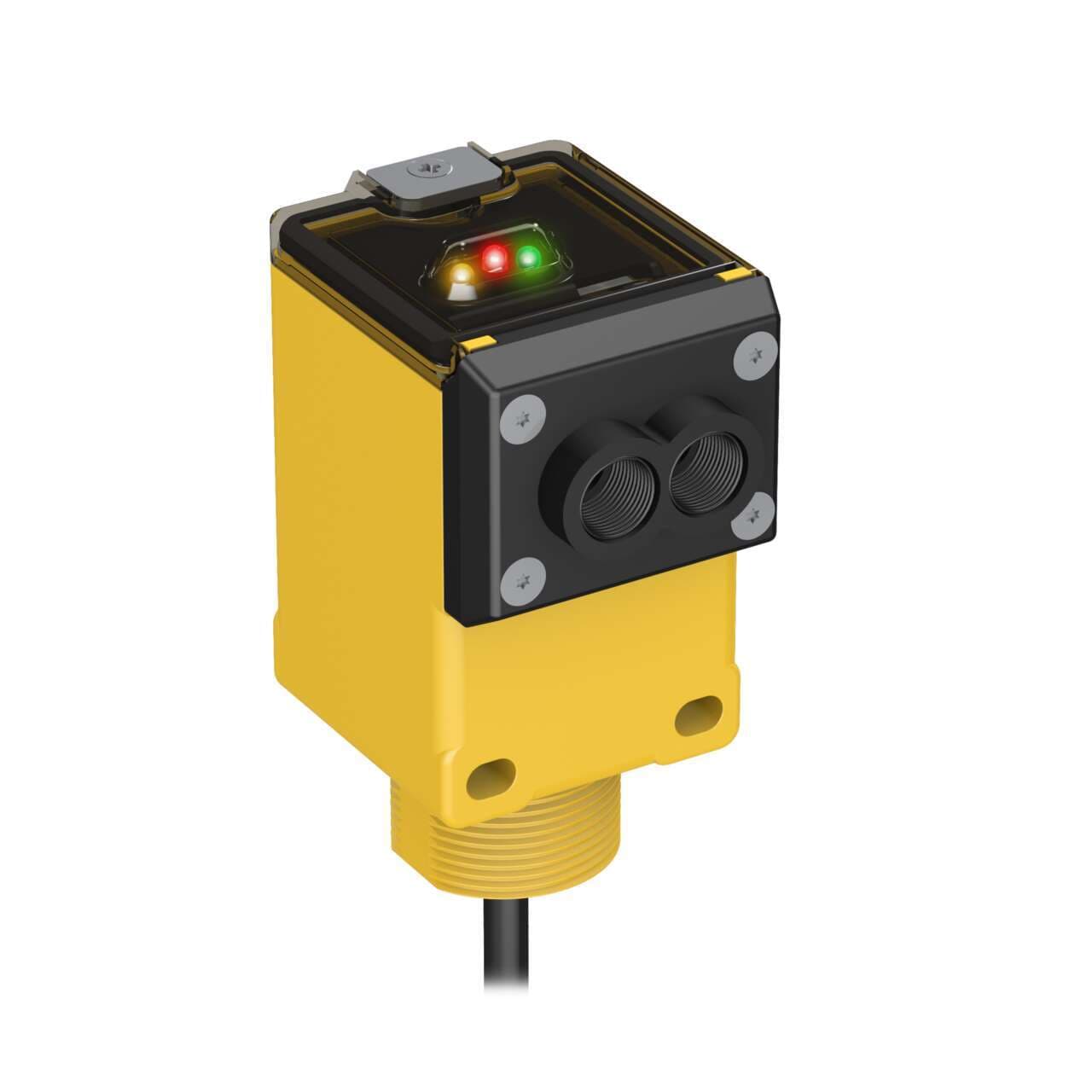

Q45BW13F Banner Proximity Sensors

Product Details

• Weight
  353.80176 g
• Country Of Origin
  US
• Main function
  Sensor (Photo-electric)
• Functions
  Photo-electric fiber optic sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
• Mounting mode
  Threaded mount
• Compliant with standard(s)
  cURus cCSAus CE
• Primary brand
  Banner Engineering
• Supply voltage (DC)
  12Vdc-250Vdc (24Vdc / 48Vdc / 120Vdc nom.)
• Connection type
  Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
• Degree of protection
  IP67 NEMA 6P
• Supply voltage (AC)
  24Vac-250Vac (200Vac / 220Vac / 240Vac nom.)
• Wavelength
  880 nm
• Digital outputs
  1 x digital output (Solid-state AC output; SPST contact type)
• Ambient air temperature for operation
  -25...+55 °C
• Sub-range name
  Q45BW13
• Shape
  Rectangular
• Thread size
  M30
• Material
  thermoplastic housing Glass fiber
• Product series / family name
  Q series
• Light Color
  Infrared (IR)
Response time
2ms / 0.002 s
Order code / Manufacturer SKU
53988
Housing Style
Rectangular
Fiber Type
Glass Only
Primary Housing Material
Thermoplastic
Input/Output
Discrete
Connection
Cable
Cable Length (m)
2
Special Feature: Remote Teach
No
Minimum response time (ms)
2
Power Supply/Supply Voltage
12-250 V dc or 24-250 V ac
Feature: Timing (Hold/Delay)
Yes
Delay at Power-up (ms)
100
Indicator Display Type
Indicator LEDs
Feature: Audible
No
IO Link
No
Housing Material
Thermoplastic
Feature: Hazardous Area
No
Max Op. Relative Humidity (%)
90% @ 50°C
Intrinsically Safe
No
Power
AC/DC Universal
NEMA Rating
NEMA 6P
IP Rating
IP67
Output Type (Specific)
Single Discrete
Quick Disconnect Type
No QD
Adjustments
Potentiometer
Special Feature: Bussable Power
No
Number of Pins
4
Min Op. Temperature (°C)
-25
Color LED - Amplifiers
Infrared
Output
Solid-State AC Switch
Repeatability (µs)
500
Max Op. Temperature (°C)
55
