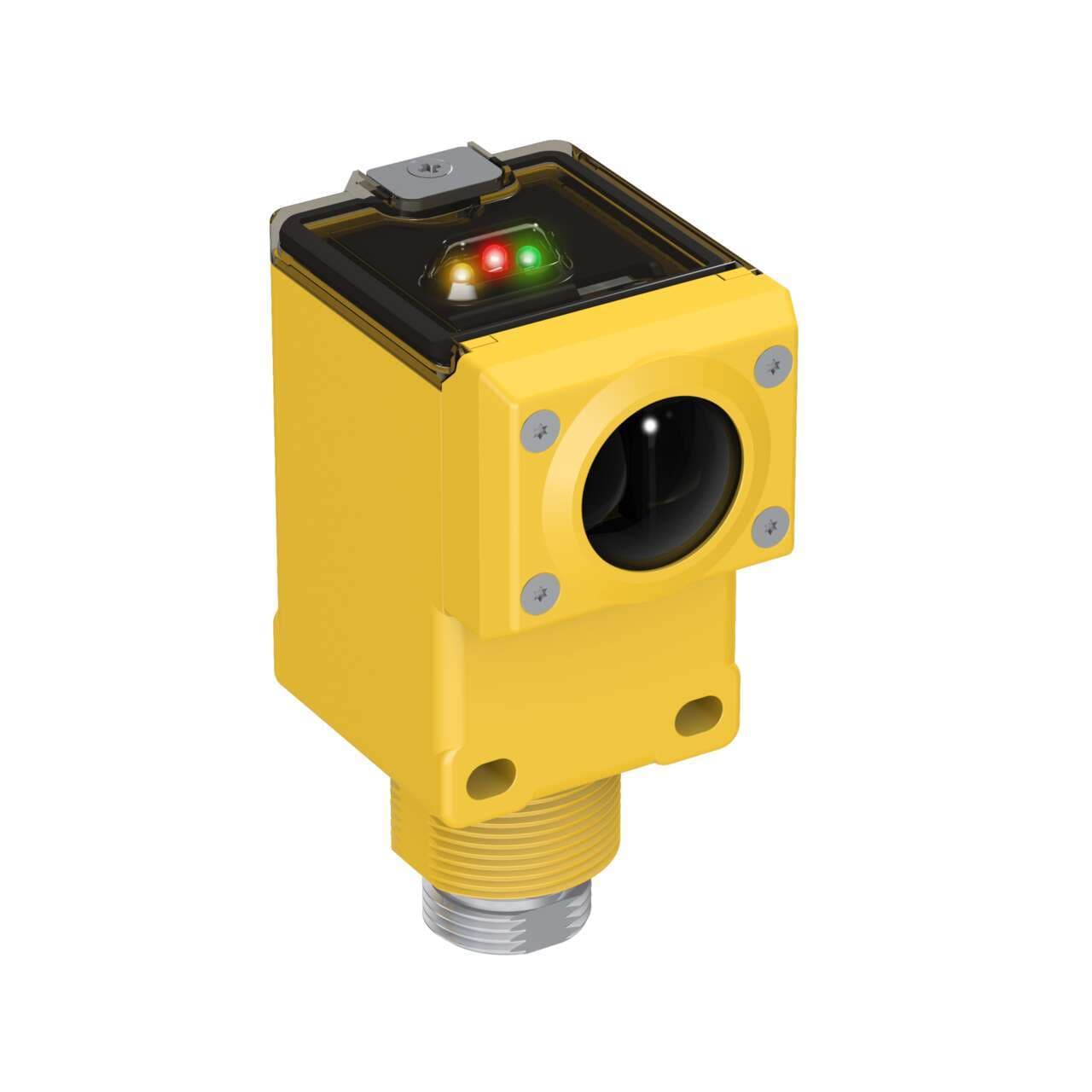

Q45BB6CVQ Banner Proximity Sensors
Part#:Q45BB6CVQ
Alt. Part#:37009
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Convergent; Focal Point: 38 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin Mini Integral QD
Product Details
- Weight 262.176176 g
- Country Of Origin US
- Power DC
- Power Supply/Supply Voltage 10-30 V dc
- Number of Pins 4
- Sensing Mode (General) Proximity
- Primary Housing Material Thermoplastic
- Repeatability (µs) 500
- Indicator LEDs
- Max Sensing Distance (mm) 38
- Quick Disconnect Type 7/8 in. (Mini)
- NEMA Rating NEMA 6P
- Feature: Timing (Hold/Delay) Yes
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- Input/Output Discrete
- Connection Integral QD
- Special Feature: Water Detection No
- Lens Material Acrylic
- Feature: Audible No
- Housing Style Rectangular
- Max Op. Temp. (°C) 70
- Output response time (ms) 2
- Delay at Power-up (ms) 100
- Feature: Hazardous Area No
- Sensing Mode (Detailed) Convergent
- Sensing Beam Wavelength 680
- Max Op. Relative Humidity [%] 90% @ 50°C
- Opposed Mode Emitter/Receiver N/A
- Sensing Beam Visible Red LED
- Operation Light/Dark Operate
- Special Feature: Remote Teach No
- Barrel Diameter (mm) 30
- Feature: Encapsulated No
- DeviceNet No
- Outputs Bipolar (NPN & PNP)
- Min Op. Temp. (°C) -40
- IP Rating IP67
- IO Link No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BB6CVQ on Powermatic Associates is $175.00. Order now.
About the product
Banner Engineering Q45BB6CVQ is a photo-electric sensor designed for precision detection tasks. It features a convergent mode with potentiometer adjustment and is equipped with a 4-pin 7/8" mini connector for easy installation. This sensor is part of the Q45BB6 series and offers a sensing distance of 38mm, utilizing visible red light with a wavelength of 680 nm. It operates within an ambient air temperature range of -40 to +70°C and is housed in a thermoplastic casing with an acrylic lens, ensuring durability. The Q45BB6CVQ operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape with an M30 threaded mount for secure attachment. This sensor provides a high degree of protection with an IP67 NEMA 6P rating, making it suitable for challenging environments. It offers both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP/NPN transistor) with a rapid response time of 2ms / 0.002 s.
Q45BB6CVQ Related Documents
Similar products from: Banner Proximity Sensors
Manufacturer warranty
Q45BB6CVQ Banner
$175.00
Your price can be lower.
Log in or Create account to check your discount
Select Qty:
$175.00
$175.00 each
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare Q45BB6CVQ with other Proximity Sensors products
Weight
Country Of Origin
Power
Power Supply/Supply Volta...
Number of Pins
Sensing Mode (General)
Primary Housing Material
Repeatability (µs)
Indicator
Max Sensing Distance (mm)
Selected product
Q45BB6CVQ
Banner
Q45 Series: Convergent; Focal Point: 38 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin ...
Weight262.176176 g
Country Of OriginUS
PowerDC
Power Supply/Supply Voltage10-30 V dc
Number of Pins4
Sensing Mode (General)Proximity
Primary Housing MaterialThermoplastic
Repeatability (µs)500
IndicatorLEDs
Max Sensing Distance (mm)38
SM312CVQD
Banner
MINI-BEAM: Visible Red 650 nm Convergent; Focal Point: 16 mm; Input: 10-30 V dc; Output: Bipolar: 1 ...
Weight61.688512 g
Country Of OriginUS
PowerDC
Power Supply/Supply Voltage-
Number of Pins-
Sensing Mode (General)Proximity
Primary Housing MaterialThermoplastic
Repeatability (µs)-
Indicator-
Max Sensing Distance (mm)16
Q45BB6LPQ5
Banner
Q45 Series: Polarized Retro; Range: 0.15 - 6 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-...
Weight254.01152 g
Country Of OriginUS
PowerDC
Power Supply/Supply Voltage-
Number of Pins-
Sensing Mode (General)Retroreflective
Primary Housing MaterialThermoplastic
Repeatability (µs)-
Indicator-
Max Sensing Distance (mm)6000
About the manufacturer
Powermatic Associates is an authorized Banner distributor, proud to offer an extensive range of Banner's innovative products and solutions. Banner Engineering is a renowned manufacturer specializing in industrial automation, known for their cutting-edge sensor technology, machine safety solutions, wireless connectivity, and LED lighting systems. With a precision focus on delivering high-quality eq...
Recently viewed products
Relevant products
FAQ
What is the price of Q45BB6CVQ?
Purchase the Q45BB6CVQ from Powermatic Associates at the price of $175.00. Order today.
Out if stock but available for backorder.
Q45 Series: Convergent; Focal Point: 38 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin Mini Integral QD
