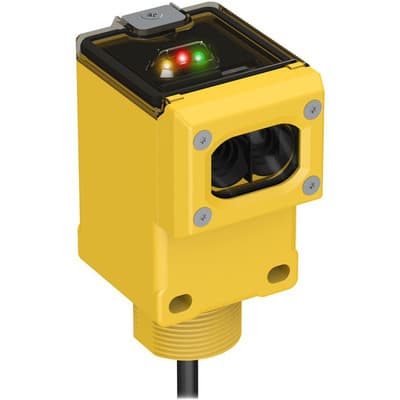

Q45BB6D W-30 Banner Sensors & Transducers

Name: Q45BB6D W-30
Brand: Banner

Part#:Q45BB6D W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

Product description

Photo-electric sensor with diffuse mode - Banner Engineering (Q series - Q45BB6) - Part #38468 - Sensing range 450mm - Infrared (IR) light (880nm) - 1 x digital output (PNP/NPN transistor) (Light-ON or Dark-ON operation) - Supply voltage 10Vdc-30Vdc (12Vd

Product Details

Sub-range name
Q45BB6
Product series / family name
Q series
Equivalent to
Q45BB6DW30
Primary brand
Banner Engineering
Functions
Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
Shape
Rectangular
Material
thermoplastic housing Acrylic lns.
Sensing distance
450mm
Digital outputs
1 x digital output (PNP/NPN transistor)
Connection type
Pre-wired with 30ft / 9m cable terminated with bare end flying leads
Degree of protection
IP67 NEMA 6P
Thread size
M30
Ambient air temperature for operation
-40...+70 °C
Wavelength
880 nm
Compliant with standard(s)
cURus cCSAus CE
Order code / Manufacturer SKU
38468
Response time
2ms / 0.002 s
Light Color
Infrared (IR)
Operating mode
Light-ON Dark-ON
Main function
Sensor (Photo-electric)

Design

diffuse mode

Mounting mode

Threaded mount

Supply voltage (DC)

10Vdc-30Vdc (12Vdc / 24Vdc nom.)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
