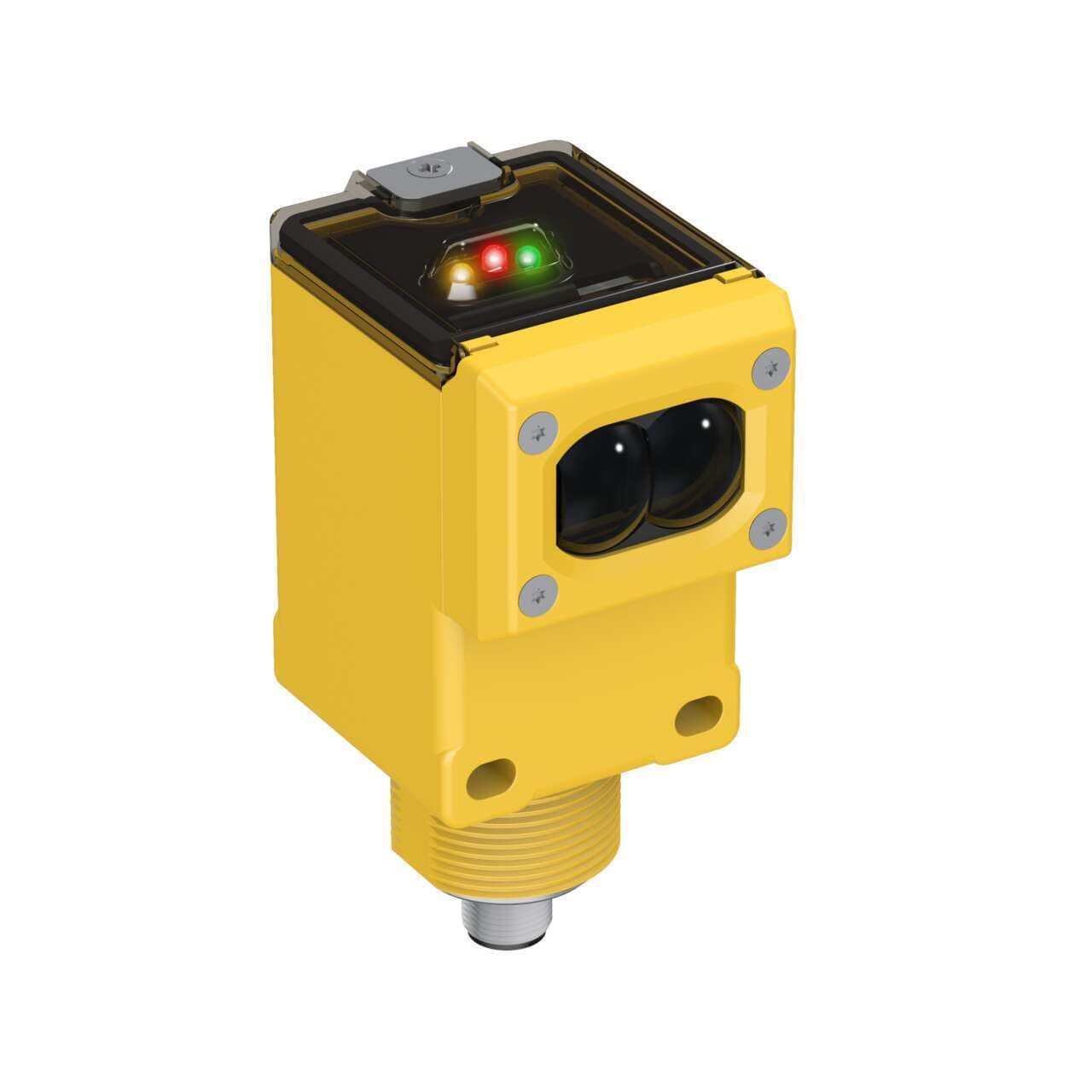

Q45BB6DLQ5 Banner Proximity Sensors
Part#:Q45BB6DLQ5
Alt. Part#:38664
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q45 Series: Diffuse; Range: 1.8 m; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 4-pin M12 Integral QD
Product Details
- Weight 244.93968 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Design diffuse mode
- Connection type Pre-equipped with 4-pin Euro-style M12 connector
- Response time 2ms / 0.002 s
- Product series / family name Q series
- Light Color Infrared (IR)
- Sub-range name Q45BB6
- Wavelength 880 nm
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus cCSAus CE
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -40...+70 °C
- Primary brand Banner Engineering

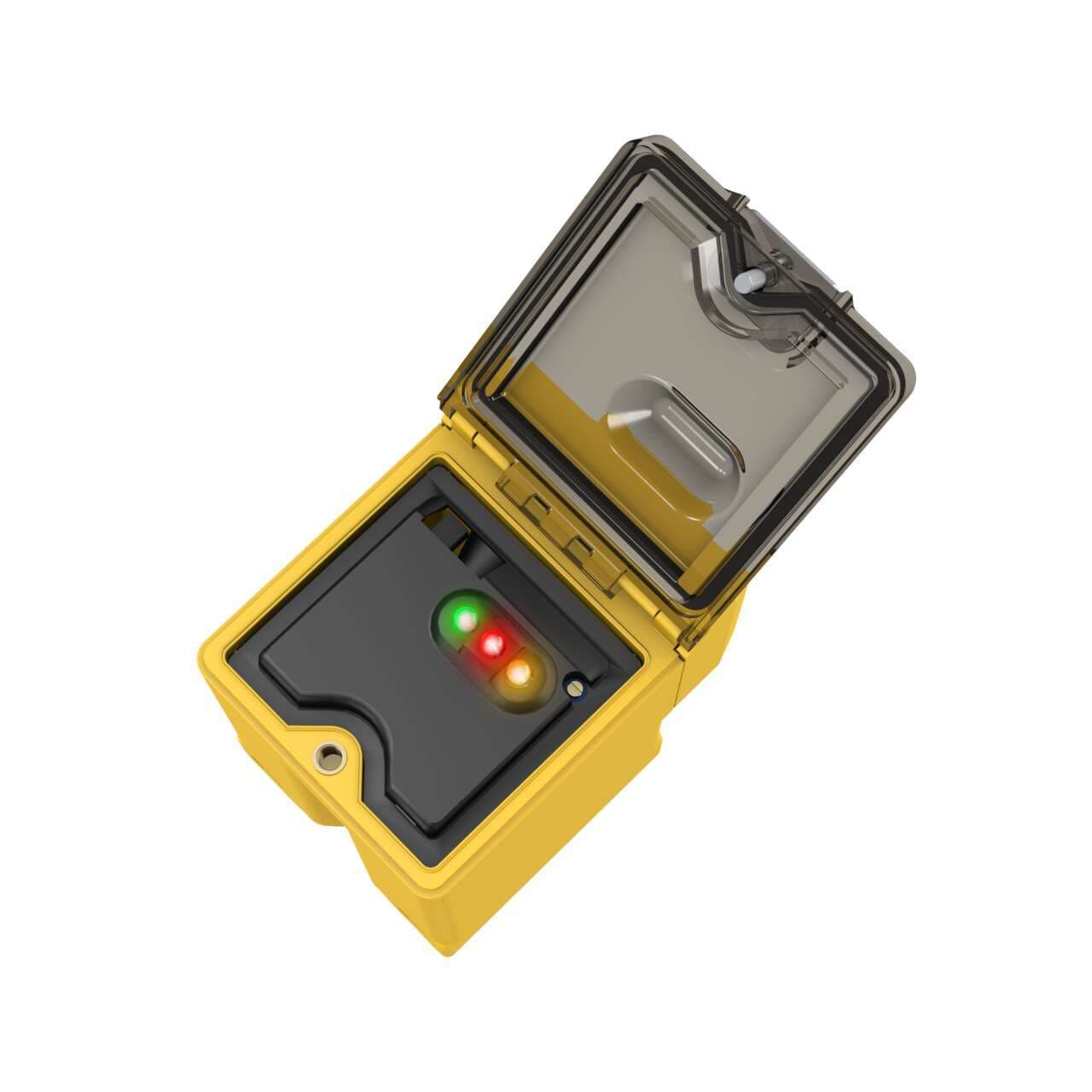

- Functions Photo-electric sensor green LED (power ON) red LED (signal) amber LED (output state) potentiometer adjustment
- Sensing distance 1.8m
- Thread size M30
- Order code / Manufacturer SKU 38664
- Mounting mode Threaded mount
- Degree of protection IP67 NEMA 6P
- Material thermoplastic housing Acrylic lns.
- Input/Output Discrete
- Special Feature: Water Detection No
- Barrel Diameter (mm) 30
- Primary Housing Material Thermoplastic
- Min Op. Temp. (°C) -40
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Audible No
- Sensing Beam Infrared LED
- Connection Integral QD
- Delay at Power-up (ms) 100
- Indicator LEDs
- Housing Style Rectangular
- Max Op. Temp. (°C) 70
- NEMA Rating NEMA 6P
- Feature: Encapsulated No
- Sensing Mode (Detailed) Diffuse
- Operation Light/Dark Operate
- IP Rating IP67
- Feature: Hazardous Area No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Adjustments Potentiometer
- DeviceNet No
- Max Sensing Distance (mm) 1800
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Chemical Resistant No
- Outputs Bipolar (NPN & PNP)
- Output response time (ms) 2
- Repeatability (µs) 500
- Feature: Timing (Hold/Delay) Yes
- IO Link No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Number of Pins 4
- Opposed Mode Emitter/Receiver N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q45BB6DLQ5 on Powermatic Associates is $142.00. Order now.
About the product
Banner Engineering Q45BB6DLQ5 is a photo-electric sensor designed for versatile applications, featuring a diffuse mode with potentiometer adjustment. It is equipped for mounting with an M30 threaded mount and operates within an ambient air temperature range of -40 to +70°C. This sensor is part of the Q45BB6 series and offers a degree of protection rated at IP67 NEMA 6P, ensuring durability in various environments. It requires a supply voltage of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The rectangular-shaped sensor is constructed from a thermoplastic housing with an acrylic lens. It has a sensing distance of up to 1.8m and utilizes infrared light with a wavelength of 880 nm. The operating modes include Light-ON and Dark-ON, supported by a digital output (PNP/NPN transistor) and a rapid response time of 2ms. Connection is facilitated through a pre-equipped 4-pin Euro-style M12 connector.
