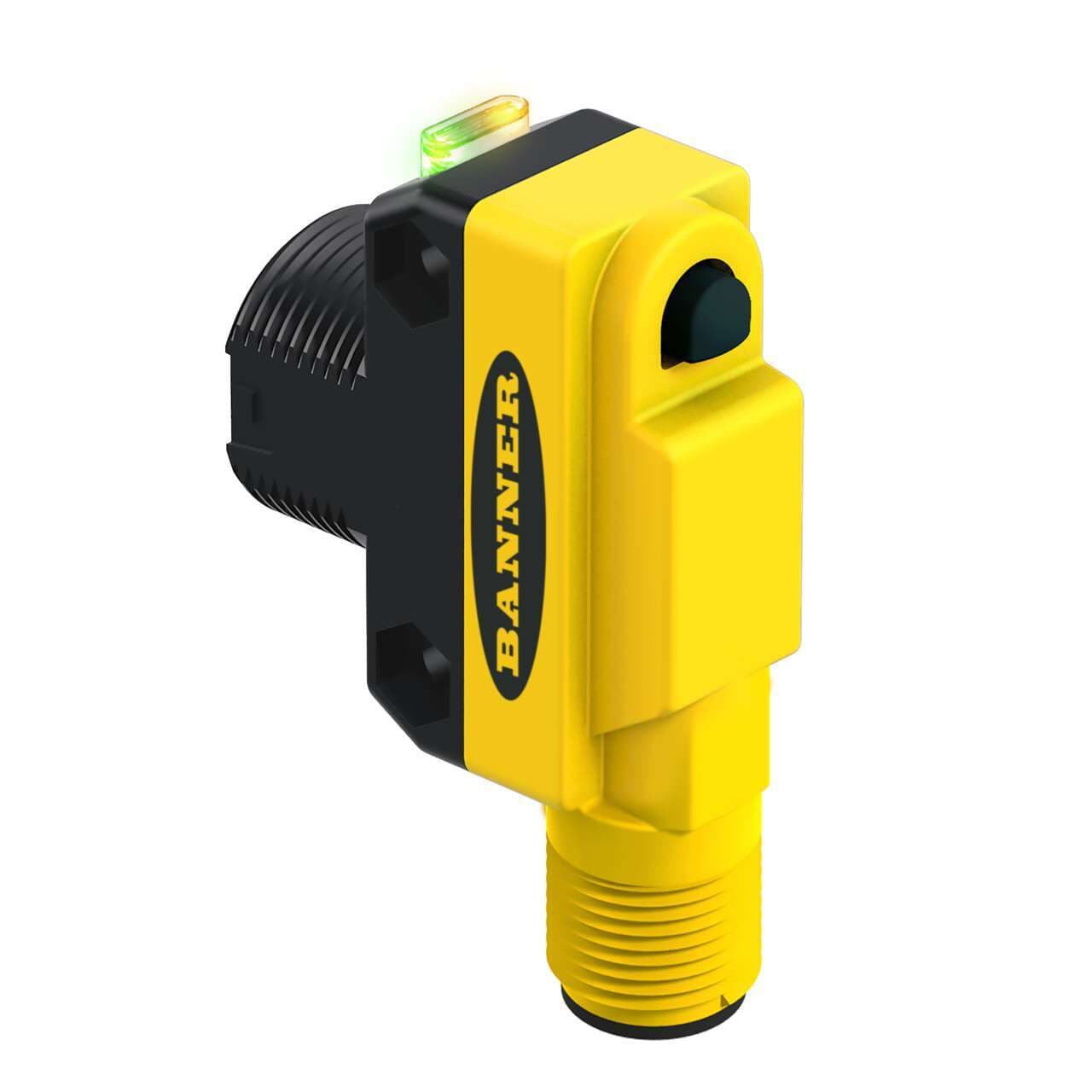

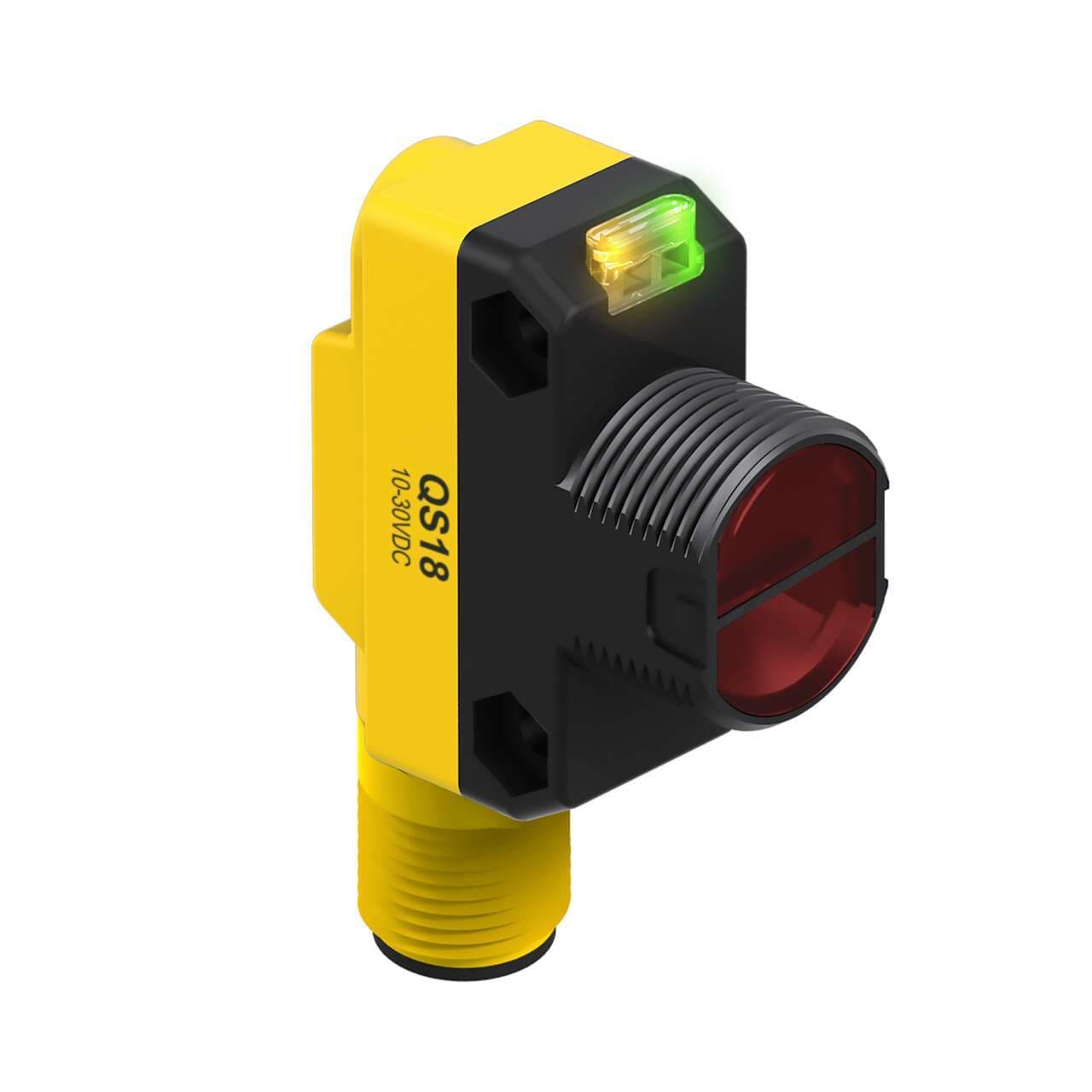

QS18EP6DQ8 Banner Proximity Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  MX
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Product series / family name
  WORLD-BEAM series
• Light Color
  Infrared (IR)
• Order code / Manufacturer SKU
  71995
• Sub-range name
  QS18 Expert series
• Shape
  Rectangular
• Mounting mode
  Threaded mount
• Degree of protection
  IP67 NEMA 6
• Primary brand
  Banner Engineering
• Functions
  Photo-electric sensor green LED (power ON) yellow LED (light sensed) TEACH mode
• Thread size
  M18
• Operating mode
  Light-ON Dark-ON
• Material
  thermoplastic housing PMMA lns.
• Main function
  Sensor (Photo-electric)
• Sensing distance
  800mm
• Design
  diffuse mode
• Ambient air temperature for operation
  -20...+70 °C
• Digital outputs
  1 x digital output (PNP transistor)
Connection type
Pre-equipped with 4-pin Euro-style M12 connector
Compliant with standard(s)
cURus CE
Sensing Mode (Detailed)
Diffuse
Housing Style
Rectangular w/M18 Mount
IO Link
No
Feature: Quick Disconnect
Yes
Outputs
PNP
Special Feature: Water Detection
No
Feature: Chemical Resistant
No
Power Supply/Supply Voltage
10-30 V dc
NEMA Rating
NEMA 6
Barrel Diameter (mm)
18
Sensing Mode (General)
Proximity
Operation
Light/Dark Operate
Repeatability (µs)
75
Feature: Encapsulated
No
Input/Output
Discrete
Max Op. Temp. (°C)
70
Adjustments
Teach Button
Max Sensing Distance (mm)
800
Special Feature: Intrinsically Safe
No
Feature: Hazardous Area
No
Primary Housing Material
ABS
Special Feature: Remote Teach
Yes
Max Op. Relative Humidity [%]
95% @ 50°C
Connection
Integral QD
Number of Pins
4
Indicator
LEDs
Quick Disconnect Type
M12 (Euro)
Delay at Power-up (ms)
100
Feature: Audible
No
Sensing Beam
Infrared LED
Min Op. Temp. (°C)
-20
IP Rating
IP67
Feature: Timing (Hold/Delay)
Yes
Power
DC
Output response time (ms)
0.6
Lens Material
PMMA
DeviceNet
No
