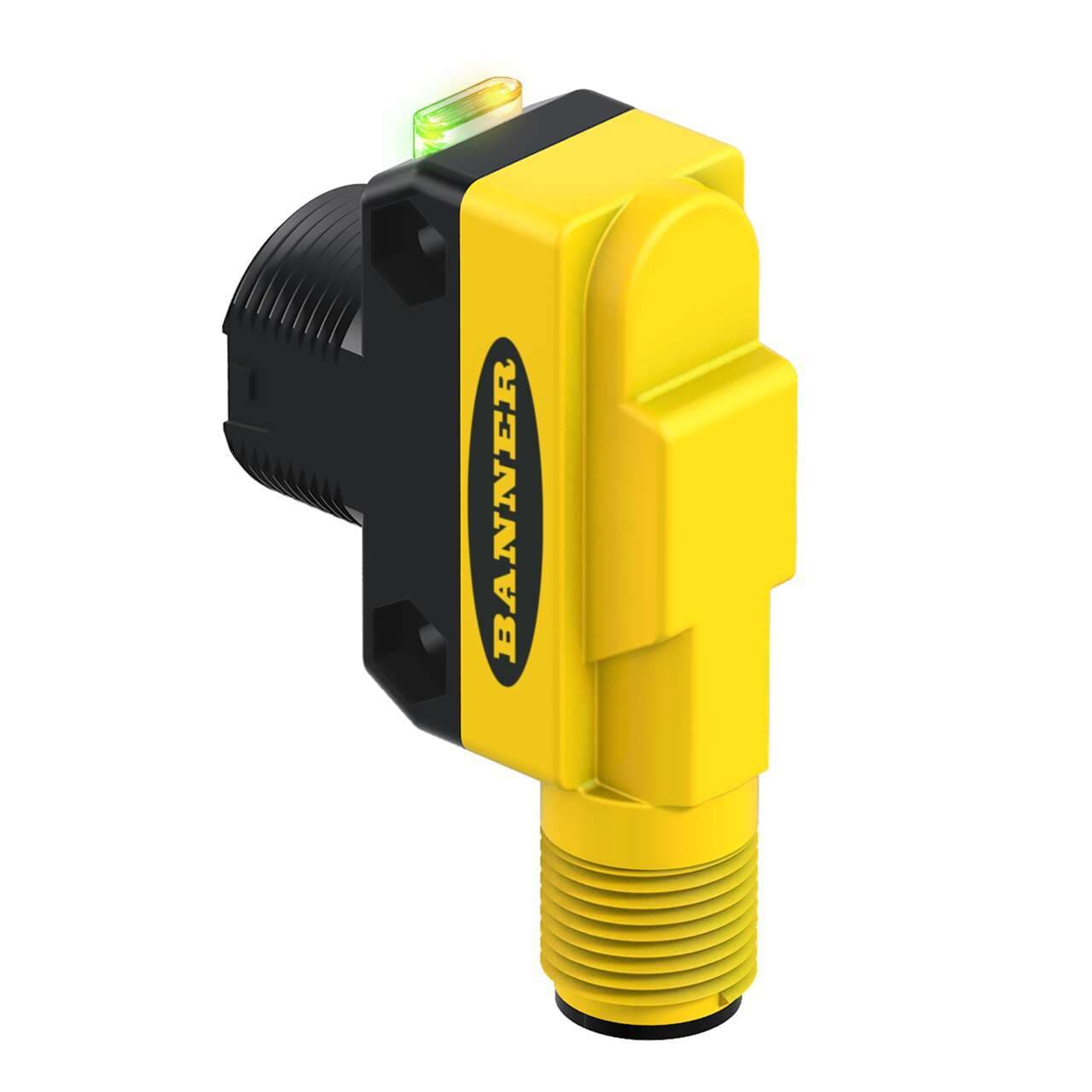

QS18VP6FF50Q8 Banner Proximity Sensors
Part#:QS18VP6FF50Q8
Alt. Part#:71755
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM QS18 Series: Fixed-Field; Range: 50 mm; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 4-pin M12 Integral QD
Product Details
- Weight 22.226008 g
- Country Of Origin CN
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Outputs PNP
- Special Feature: Water Detection No
- Indicator LEDs
- Lens Material Acrylic
- DeviceNet No
- Max Sensing Distance (mm) 50
- Output response time (ms) 0.85
- NEMA Rating NEMA 6
- Feature: Hazardous Area No
- Small Visible Spot LED
- Connection Integral QD
- Special Feature: Remote Teach No
- Sensing Mode (General) Proximity
- Quick Disconnect Type M12 (Euro)
- Delay at Power-up (ms) 100
- Feature: Timing (Hold/Delay) No
- Power DC
- Min Op. Temp. (°C) -20
- Repeatability (µs) 160
- Feature: Audible No
- Housing Style Rectangular w/M18 Mount
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 630
- Sensing Beam Visible Red LED
- Special Feature: Intrinsically Safe No
- IP Rating IP67
- Adjustments N/A
- Input/Output Discrete
- Operation Light/Dark Operate
- Max Op. Relative Humidity [%] 95% @ 50°C
- Primary Housing Material ABS
- Max Op. Temp. (°C) 70
- Number of Pins 4
- Feature: Quick Disconnect Yes
- Feature: Encapsulated No
- Barrel Diameter (mm) 18
- IO Link No
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6FF50Q8 on Powermatic Associates is $102.00. Order now.
About the product
Banner Engineering QS18VP6FF50Q8 is a fixed-field photo-electric sensor designed for versatile applications, featuring an M18 threaded mount for secure installation. It operates within an ambient air temperature range of -20 to +70°C and incorporates a background suppression system to enhance its sensing capabilities. This sensor is equipped with a 4-pin Euro-style M12 connector for straightforward connectivity. As part of the QS18 series, it offers an IP67 NEMA 6 degree of protection, ensuring durability in various environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, ensuring longevity and resilience. The QS18VP6FF50Q8 has a sensing distance of 50mm and utilizes visible red light for detection. It supports both Light-ON and Dark-ON operating modes and features a single digital output (PNP transistor; complementary NO/NC) for versatile application integration.
