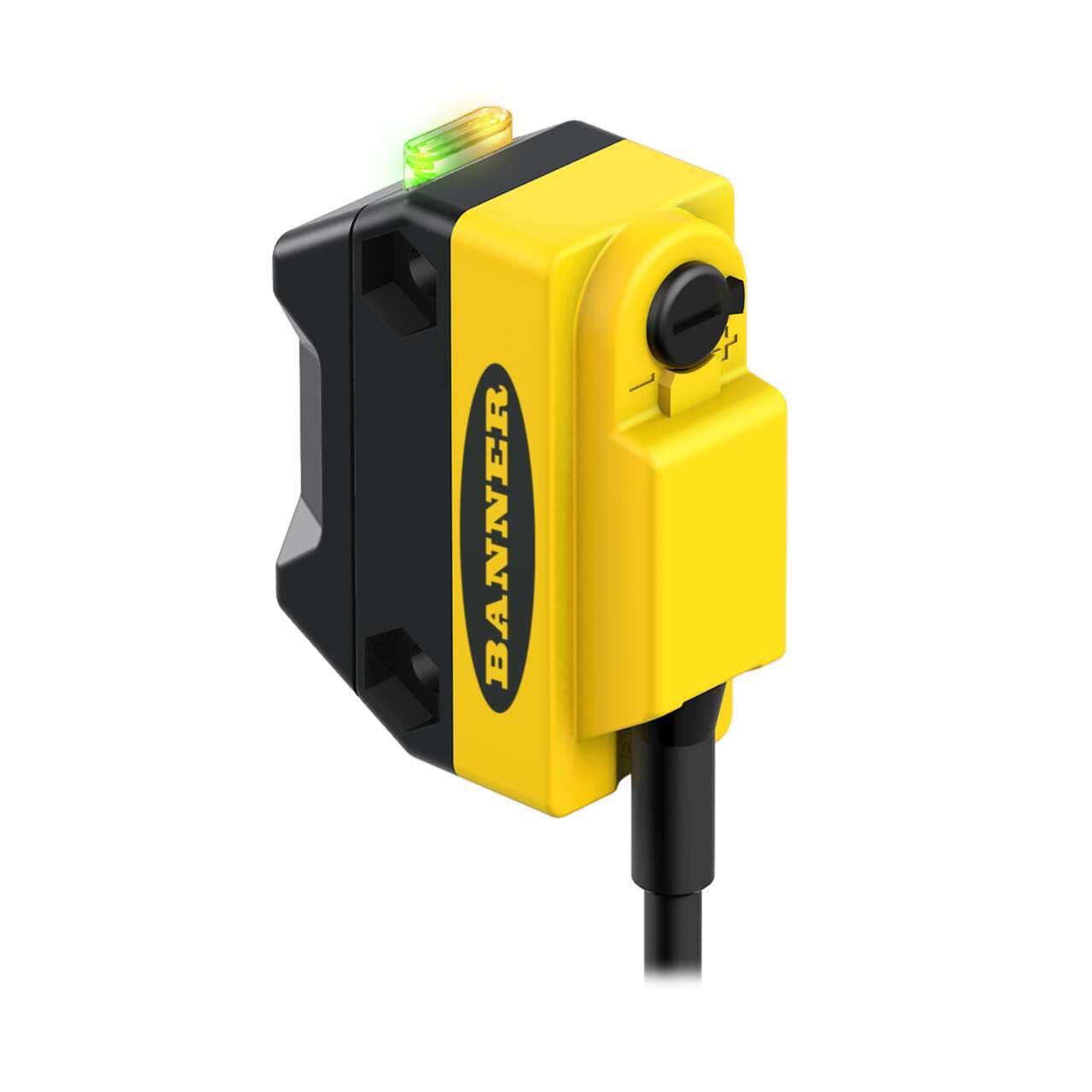

QS18VP6FPQ5 Banner Proximity Sensors

Name: QS18VP6FPQ5
Brand: Banner
Price: 106 USD
Availability: BackOrder

Part#:QS18VP6FPQ5

Alt. Part#:69869

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM QS18 Series: Plastic Fiber; Range: Depends on the fiber; Input: 10-30 V dc; Output: Complementary Solid-State PNP; 150 mm (6 in) M12 Pigtail QD

Product Details

Weight
63.50288 g
Country Of Origin
MX
Feature: Hazardous Area
No
Special Feature: Intrinsically Safe
No
NEMA Rating
NEMA 6
Max Op. Relative Humidity [%]
95% @ 50°C
IP Rating
IP67
Lens Material
Acrylic
Barrel Diameter (mm)
18
Feature: Timing (Hold/Delay)
No
Adjustments
Potentiometer
Feature: Quick Disconnect
Yes
Feature: Chemical Resistant
No
Feature: Encapsulated
No
Connection
Pigtail QD
Min Op. Temp. (°C)
-20
Power Supply/Supply Voltage
10-30 V dc
Outputs
PNP
Primary Housing Material
ABS
Input/Output
Discrete

Housing Style

Rectangular

Quick Disconnect Type

M12 (Euro)

Power

Max Op. Temp. (°C)

Output response time (ms)

0.6

Number of Pins

Special Feature: Remote Teach

Delay at Power-up (ms)

100

Special Feature: Water Detection

Repeatability (µs)

150

Feature: Audible

DeviceNet

IO Link

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QS18VP6FPQ5 on Powermatic Associates is $106.00. Order now.

About the product

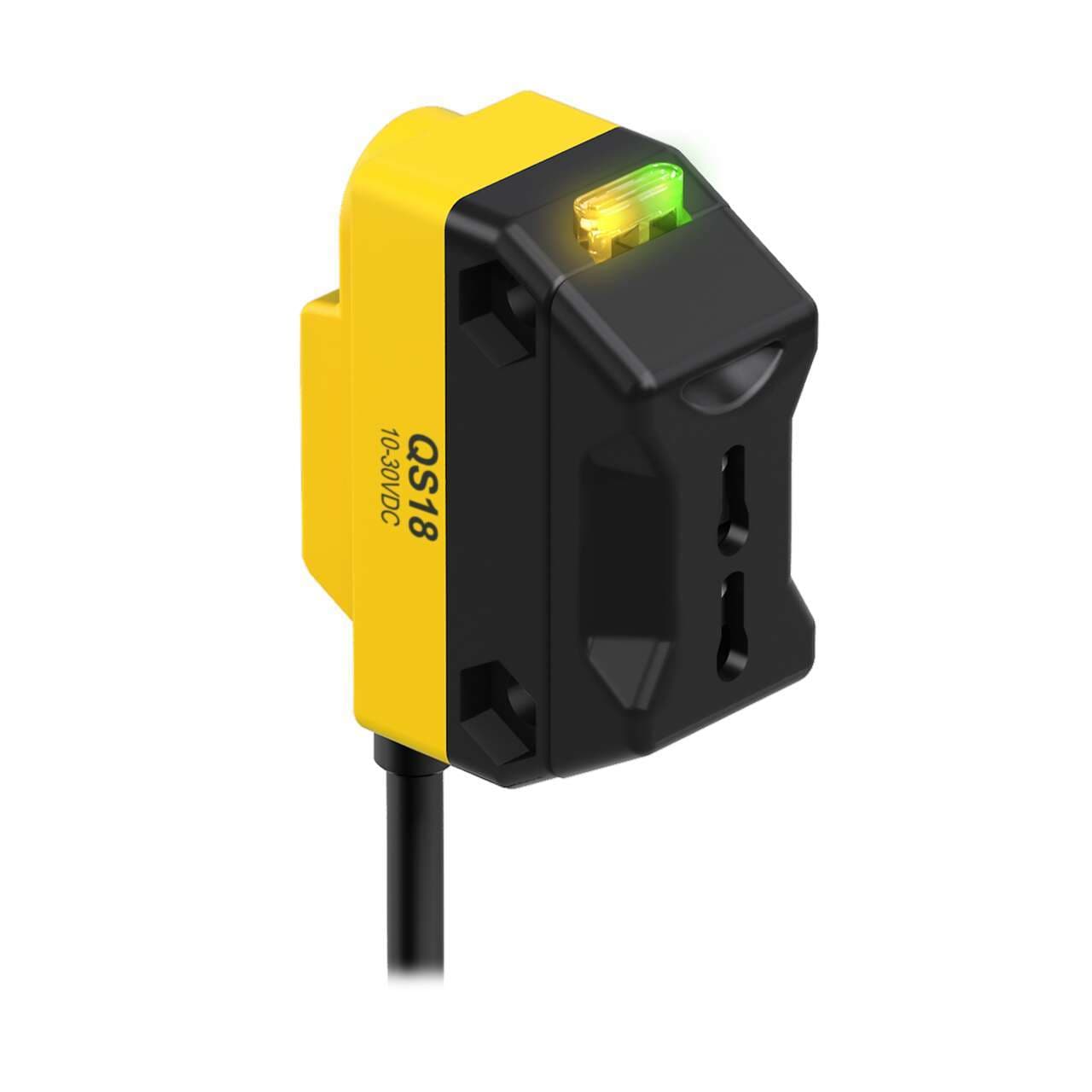

Banner Engineering QS18VP6FPQ5 is a photo-electric fiber optic sensor designed for a variety of sensing applications. It operates within an ambient air temperature range of -20 to +70 degrees Celsius. This sensor features a potentiometer adjustment range that varies by sensing mode and the fiber optics used. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector. As part of the QS18 series, it boasts a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The QS18VP6FPQ5 requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens and plastic fiber. The sensor provides one digital output (PNP transistor; complementary NO/NC) and has a response time of 0.6ms (0.0006 seconds).

QS18VP6FPQ5 Related Documents

197052.pdf
