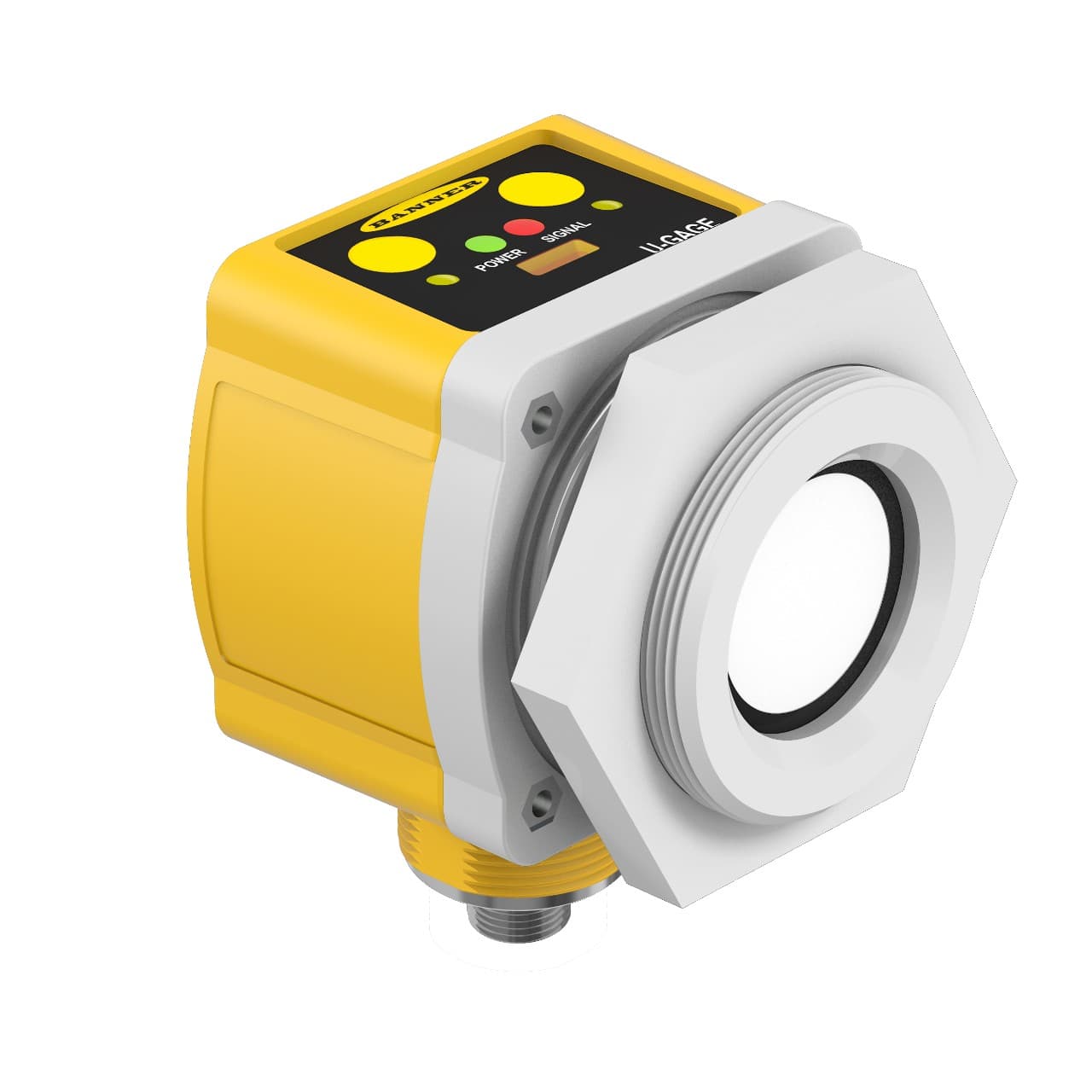

QT50UVR3FQ1-CRFV Banner Electronic Components

Product Details

• Max Measurement Range
  >1 m - <=20 m
• Input/Output
  Discrete
• Adjustments
  Push Button (s)
• IP Rating
  IP67
• Barrel Diameter (mm)
  56
• Feature: Pump-in/ Pump-out
  Yes
• 1-wire Serial Interface
  No
• Sensing Beam
  Ultrasonic
• Power Supply
  85-264 V ac / 48-250 V dc
• Output Protection
  Protected against short circuit conditions
• Temp. Warm-up Drift (Notes 2)
  After 25 min, the sensing position will be stable.
• Feature: Clear Object Detection
  Yes
• RS-485
  No
• Temperature Effect (mm/°C)
  Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C
• Max Operating Temperature (°C)
  70
• Application: Ultrasonic
  Yes
• Profibus
  No
• Primary Housing Material
  PBT
• Delay at Power-up (ms)
  1500
• NEMA Rating
  NEMA 6P
Minimum Response Time (ms)
100
Feature: Timing (Hold/Delay)
No
SSI
No
Power
AC/DC Universal
Quick Disconnect Type
M12 (Euro)
Vibration
MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Temperature Warm-up Drift upon Power-up
< 7% of the sensing distance upon power-up.
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
RS-232
No
Device Type
Sensor
Analog Resolution/Discrete Repeatability
1
Max Discrete (Switched) Output (mA)
8000
Warm-up Time (minutes)
30
Power/Current Consumption (exclusive of load)
1.5 W max
IO Link
No
Sensing Mode (General)
Proximity
Connection
Integral QD
Number of Pins
5
Min Operating Temperature (°C)
-20
Minimum Window Size (mm)
20
Common Ethernet Protocol
No
Sensing Mode (Detailed)
Time of Flight
Minimum Sensing Distance (mm)
200
Mechanical Shock
IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
Max Op. Relative Humidity Non-Condensing (%)
100
Ultrasonic Frequency (kHz)
75
PROFINET
No
PC Configurable
No
Indicator
LED(s)
Storage Temperature (°C)
-40 to 90
Rep Rate (ms)
96
Feature: Chemical Resistant
Yes
Wireless
No
Housing Style
Rectangular
Max Sensing Distance (mm)
6000
Feature: Remote Teach
Yes
RS-422
No
Discrete (Switched) Outputs
SPDT e/m Relay
Temp. Warm-up Drift (Notes 1)
After 5 min, the apparent switchpoint is < 0.6% of the actual position.
