QT50R-TW-RHQ Banner Electronic Components

QT50R-TW-RHQ on Powermatic Associates
Banner

Part#:QT50R-TW-RHQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

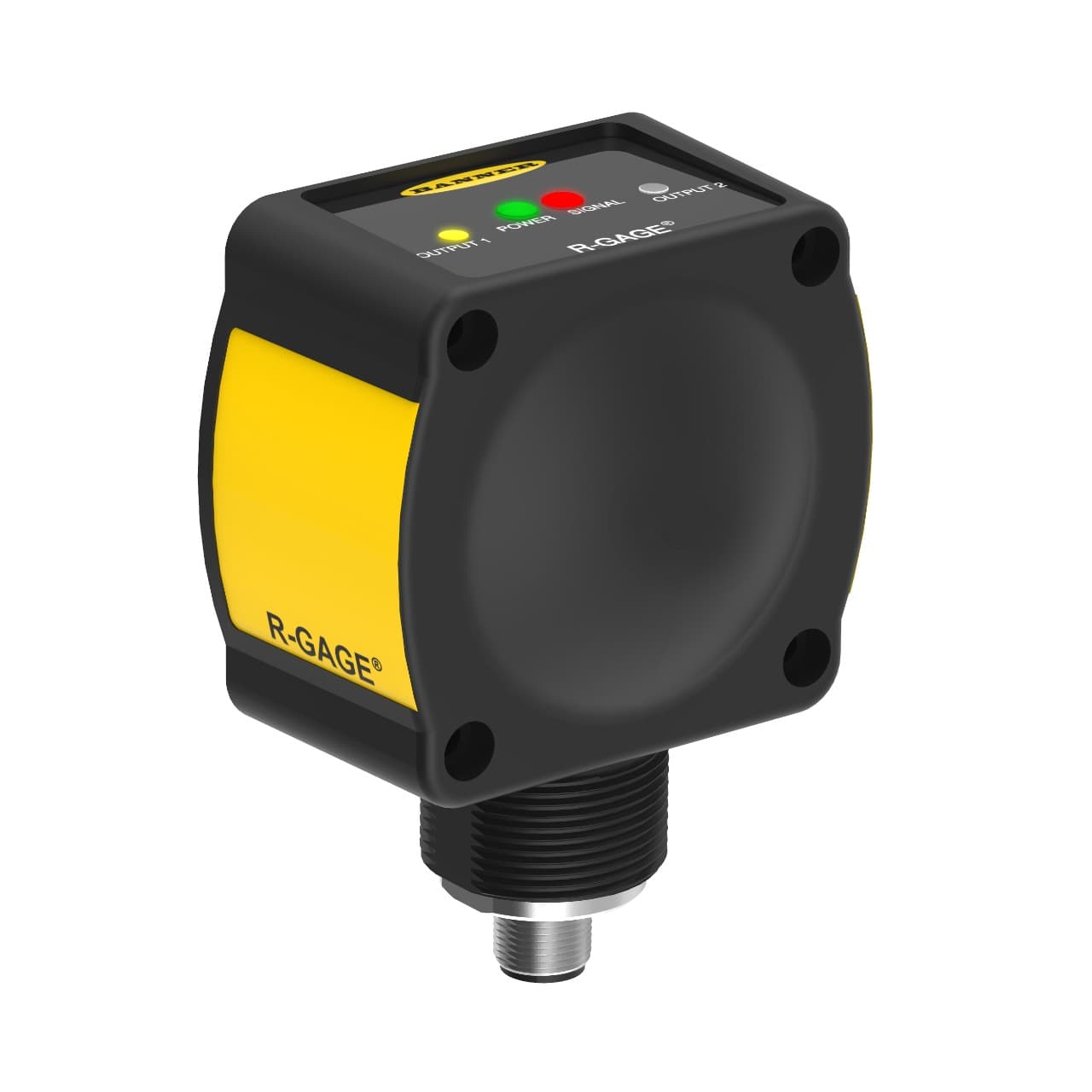

Collision-avoidance retro-reflective radar sensor with time-of-flight system - Banner Engineering (R-GAGE series - QT50R-RH) - Part #93457 - Sensing range 0...12m - 1 x digital output (PNP/NPN transistor) (NO (Normally Open)/NC (Normally Closed) function)

Product Details

  • Product series / family name
    R-GAGE series
  • Sub-range name
    QT50R-RH
  • Main function
    Sensor (Radar)
  • Functions
    Collision-avoidance retro-reflective radar sensor green LED (power ON) yellow LED (output state)
  • Material
    ABS / polycarbonate housing
  • Order code / Manufacturer SKU
    93457
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    12Vdc-30Vdc (24Vdc nom.)
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Degree of protection
    IP67
  • Equivalent to
    QT50RTWRHQ
  • Design
    time-of-flight system
  • Ambient air temperature for operation
    -40...+65 °C
  • Shape
    Rectangular
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Protection functions
    Reverse polarity Short-circuit
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Sensing distance
    0...12m
  • Compliant with standard(s)
    cULus CE
  • Operating Frequency
    24 GHz
  • Power Supply
    12-30 V dc
  • Feature: Timing (Hold/Delay)
    No
  • SSI
    No
  • Max Measurement Range
    >5 m - <=20 m
  • Primary Housing Material
    ABS/Polycarbonate
  • Adjustments
    Dip Switch
  • RS-232
    No
  • Sensing Beam
    Radar
  • Input/Output
    Discrete
  • Max Discrete (Switched) Output (mA)
    150
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • RS-485
    No
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Feature: Remote Teach
    Yes
  • Wireless
    No
  • RS-422
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Indicator
    LED(s)
  • Number of Pins
    5
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • PC Configurable
    No
  • Radar Beam Pattern (H x V °)
    90 x 76
  • Minimum Response Time (ms)
    30
  • Min Operating Temperature (°C)
    -40
  • PROFINET
    No
  • Device Type
    Sensor
  • Delay at Power-up (ms)
    2000
  • Max Operating Temperature (°C)
    65
  • IO Link
    No
  • Cert: Taiwan
    Yes
  • Housing Style
    Rectangular
  • Connection
    Integral QD
  • Output Protection
    Protected against short circuit
  • Feature: Chemical Resistant
    No
  • Profibus
    No
  • Sensing Mode (General)
    Retroreflective
  • Max Sensing Distance (mm)
    12000
  • IP Rating
    IP67
  • Common Ethernet Protocol
    No
  • 1-wire Serial Interface
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

QT50R-TW-RHQ Related Documents

R-GAGE QT50R-RH Sensor-1630951064105.pdfQT50RAF EURO QD-1630951064107.stpQT50RAF EURO QD-1630951064096.pdf
