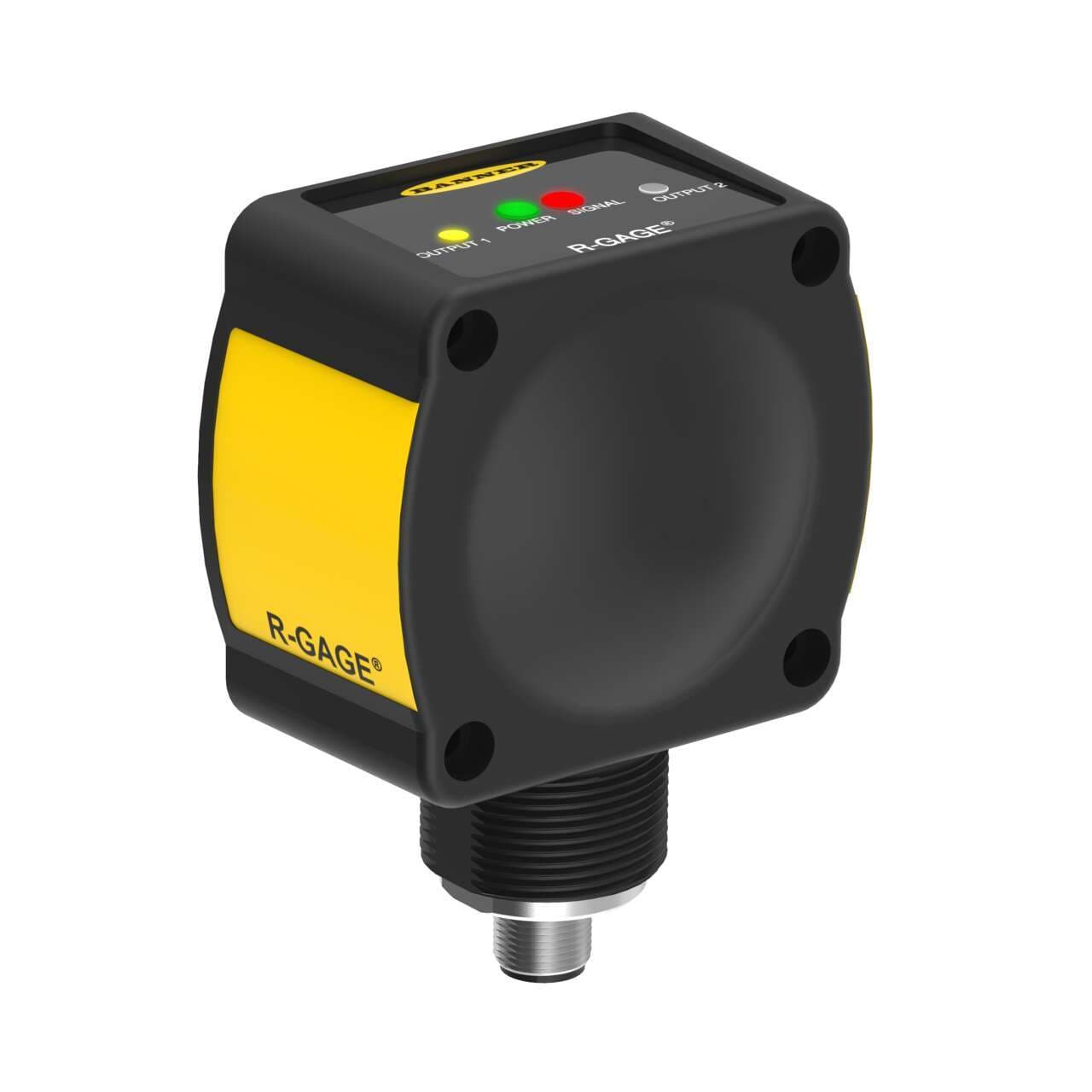

QT50R-EU-AFHQ Banner Safety Light Curtains
Part#:QT50R-EU-AFHQ
Alt. Part#:25370
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
R-Gage Series Radar Sensor; Adjustable Field; Outputs: Bipolar: 1 NPN; 1 PNP; Supply Voltage: 12-30 V dc; Range: 2.0 - 24 m; 5-pin M12 Integral QD
Product Details
- Weight 362.8736 g
- Country Of Origin US
- Design time-of-flight system
- Degree of protection IP67
- Equivalent to QT50REUAFHQ
- Primary brand Banner Engineering
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Ambient air temperature for operation -40...+65 °C
- Sub-range name QT50R-AFH
- Sensing distance 2...24m
- Protection functions Reverse polarity Short-circuit
- Order code / Manufacturer SKU 25370
- Product series / family name R-GAGE series
- Connection type Pre-equipped with 5-pin Euro-style M12 connector

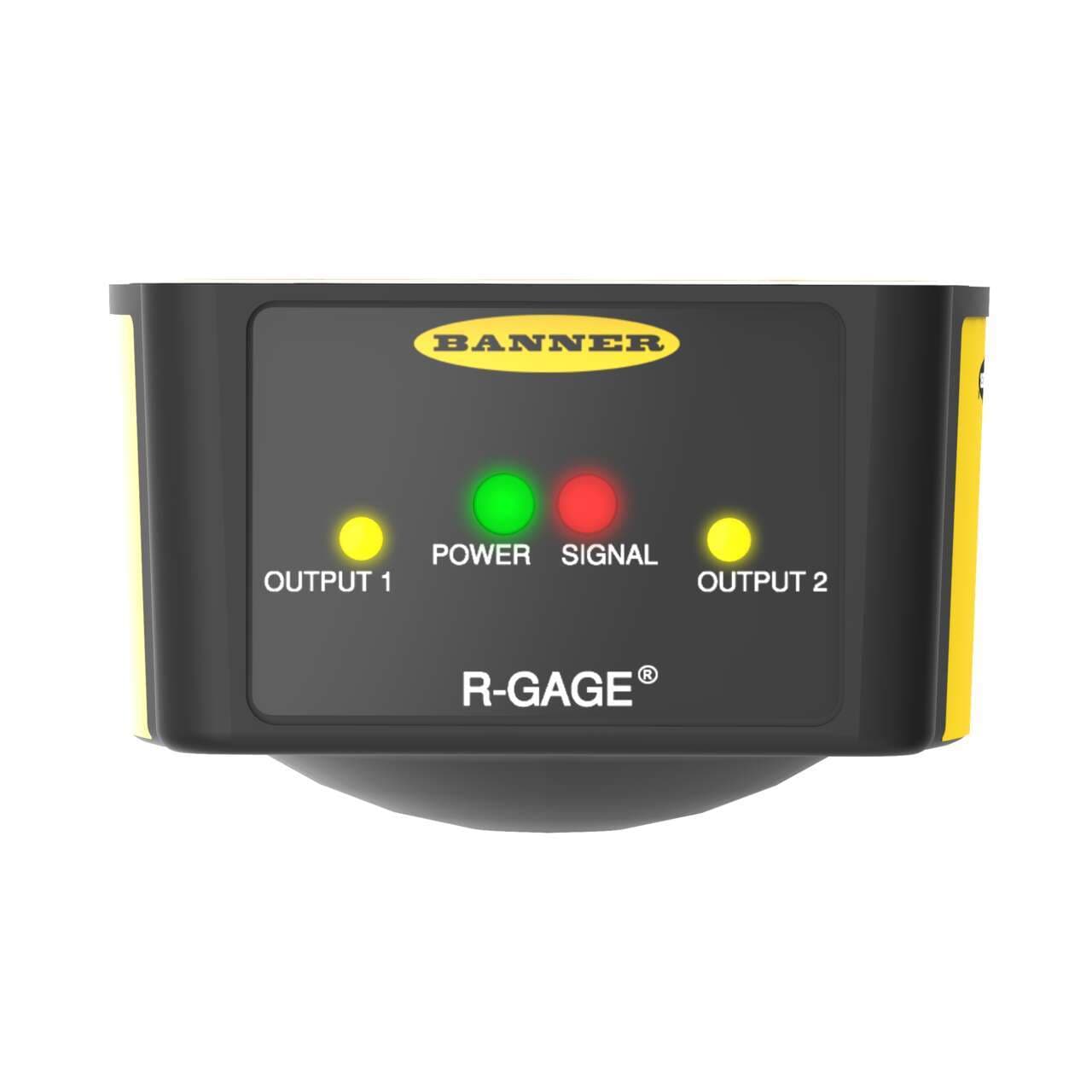

- Functions Collision-avoidance adjustable-field radar sensor green LED (power ON) yellow LED (output state)
- Material ABS / polycarbonate housing
- Main function Sensor (Radar)
- Supply voltage (DC) 12Vdc-30Vdc (24Vdc nom.)
- Operating mode NO (Normally Open) NC (Normally Closed)
- Compliant with standard(s) cULus CE
- Sensing Beam Radar
- Indicator LED(s)
- Max Operating Temperature (°C) 65
- PROFINET No
- Cert: Japan Yes
- Power DC
- Primary Housing Material ABS/Polycarbonate
- Delay at Power-up (ms) 2000
- Feature: Timing (Hold/Delay) No
- Profibus No
- Max Measurement Range >20 m - <=50 m
- Radar Beam Pattern (H x V °) 90 x 76
- Min Operating Temperature (°C) -40
- RS-422 No
- PC Configurable No
- Input/Output Discrete
- Adjustments Dip Switch
- Power/Current Consumption (exclusive of load) < 100 mA
- RS-485 No
- Operating Frequency 24 GHz
- Connection Integral QD
- IP Rating IP67
- IO Link No
- Cert: European Yes
- Sensing Mode (Detailed) Time of Flight
- Power Supply 12-30 V dc
- Output Protection Protected against short circuit
- Common Ethernet Protocol No
- SSI No
- Sensing Mode (General) Proximity
- Minimum Sensing Distance (mm) 2000
- Max Discrete (Switched) Output (mA) 150
- RS-232 No
- Cert: China Yes
- Housing Style Rectangular
- Quick Disconnect Type M12 (Euro)
- Number of Pins 5
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- Device Type Sensor
- Max Sensing Distance (mm) 24000
- Discrete (Switched) Outputs Bipolar (NPN & PNP)
- Feature: Chemical Resistant No
- 1-wire Serial Interface No
- Minimum Response Time (ms) 30
- Wireless No
- Cert: Australia/New Zealand Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QT50R-EU-AFHQ on Powermatic Associates is $1,011.00. Order now.
About the product
Banner Engineering QT50R-EU-AFHQ is a collision-avoidance adjustable-field radar sensor designed for a wide range of industrial applications. This sensor operates within an ambient air temperature range of -40 to +65°C and is built on a time-of-flight system, making it suitable for use in Europe, the UK, Australia, New Zealand, China, and Japan with telecom approval. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy installation. As part of the QT50R-AFH series, it features an IP67 degree of protection, ensuring durability in harsh environments. The sensor operates on a supply voltage of 12Vdc to 30Vdc, with 24Vdc nominal, and is housed in an ABS/Polycarbonate (PC) material, offering a robust design. It has a sensing distance of 2 to 24 meters and supports both Normally Open (NO) and Normally Closed (NC) operating modes. Additionally, it includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit, enhancing its operational reliability.
