QT50R-KR-AFHQ Banner Safety Light Curtains

QT50R-KR-AFHQ on Powermatic Associates
Banner
  • QT50R-KR-AFHQ
  • QT50R-KR-AFHQ

Part#:QT50R-KR-AFHQ

Alt. Part#:91193

Manufacturer:Banner

Category:Safety Light Curtains

Product Lifecycle:Active

Product description

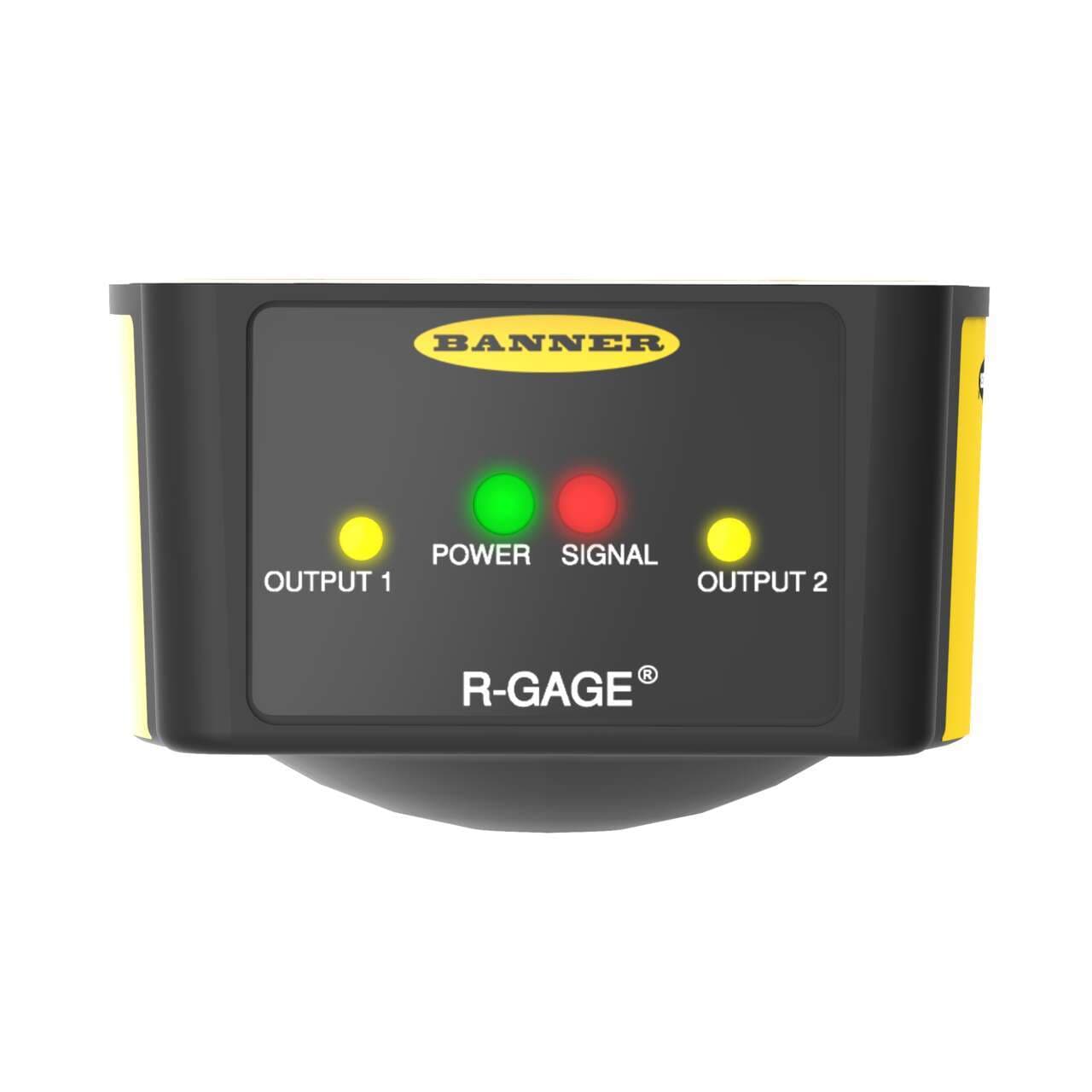

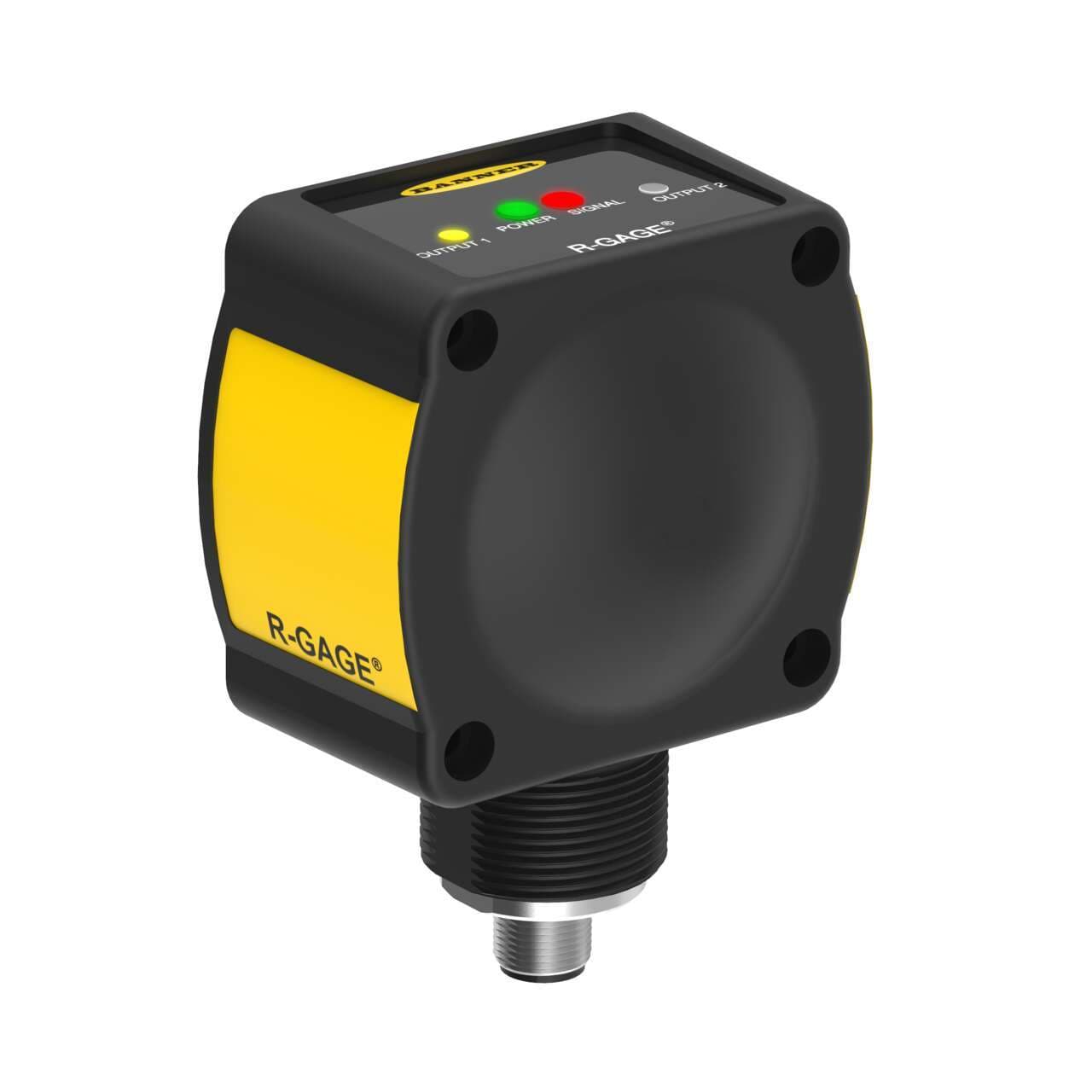

R-Gage Series Radar Sensor; Adjustable Field; Outputs: Bipolar: 1 NPN; 1 PNP; Supply Voltage: 12-24 V dc; Range: 2.0 - 24 m; 5-pin M12 Integral QD

Product Details

  • Weight
    453.592 g
  • Country Of Origin
    US
  • Product series / family name
    R-GAGE series
  • Sensing distance
    2...24m
  • Degree of protection
    IP67
  • Protection functions
    Reverse polarity Short-circuit
  • Main function
    Sensor (Radar)
  • Design
    time-of-flight system
  • Shape
    Rectangular
  • Equivalent to
    QT50RKRAFHQ
  • Sub-range name
    QT50R-AFH
  • Connection type
    Pre-equipped with 5-pin Euro-style M12 connector
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Ambient air temperature for operation
    -40...+65 °C
  • Order code / Manufacturer SKU
    91193
  • Supply voltage (DC)
    12Vdc-24Vdc
  • Primary brand
    Banner Engineering
  • Functions
    Collision-avoidance adjustable-field radar sensor green LED (power ON) yellow LED (output state)
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Material
    ABS / polycarbonate housing
  • Compliant with standard(s)
    cULus CE
  • Housing Style
    Rectangular
  • Input/Output
    Discrete
  • Delay at Power-up (ms)
    2000
  • Power/Current Consumption (exclusive of load)
    < 100 mA
  • PROFINET
    No
  • Operating Frequency
    24 GHz
  • Radar Beam Pattern (H x V °)
    90 x 76
  • Max Operating Temperature (°C)
    65
  • RS-485
    No
  • Power
    DC
  • Primary Housing Material
    ABS/Polycarbonate
  • Adjustments
    Dip Switch
  • Max Discrete (Switched) Output (mA)
    150
  • Supply Protection Circuitry
    Protected against reverse polarity and transient overvoltages
  • SSI
    No
  • Device Type
    Sensor
  • Power Supply
    12-24 V dc
  • Minimum Response Time (ms)
    30
  • RS-232
    No
  • Max Measurement Range
    >20 m - <=50 m
  • Max Sensing Distance (mm)
    24000
  • Min Operating Temperature (°C)
    -40
  • RS-422
    No
  • Profibus
    No
  • Sensing Mode (General)
    Proximity
  • Quick Disconnect Type
    M12 (Euro)
  • IP Rating
    IP67
  • IO Link
    No
  • Sensing Mode (Detailed)
    Time of Flight
  • Minimum Sensing Distance (mm)
    2000
  • Output Protection
    Protected against short circuit
  • Feature: Timing (Hold/Delay)
    No
  • Wireless
    No
  • Sensing Beam
    Radar
  • Connection
    Integral QD
  • Discrete (Switched) Outputs
    Bipolar (NPN & PNP)
  • Common Ethernet Protocol
    No
  • Cert: Korea
    Yes
  • PC Configurable
    No
  • Indicator
    LED(s)
  • Number of Pins
    5
  • Feature: Chemical Resistant
    No
  • 1-wire Serial Interface
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of QT50R-KR-AFHQ on Powermatic Associates is $1,011.00. Order now.

About the product

Banner Engineering QT50R-KR-AFHQ is a collision-avoidance adjustable-field radar sensor designed with a time-of-flight system and approved by Korea Telecom. It operates within an ambient air temperature range of -40 to +65°C and is equipped with a 5-pin Euro-style M12 connector for connectivity. This sensor falls under the QT50R-AFH series and offers a degree of protection rated at IP67, making it suitable for various environmental conditions. It requires a supply voltage of 12Vdc-24Vdc and features a rectangular shape with an ABS / Polycarbonate (PC) housing. The QT50R-KR-AFHQ can detect objects within a sensing distance of 2 to 24 meters and supports both Normally Open (NO) and Normally Closed (NC) operating modes. It includes 1 x digital output (PNP/NPN transistor) and is equipped with protection functions against reverse polarity and short-circuit issues.
