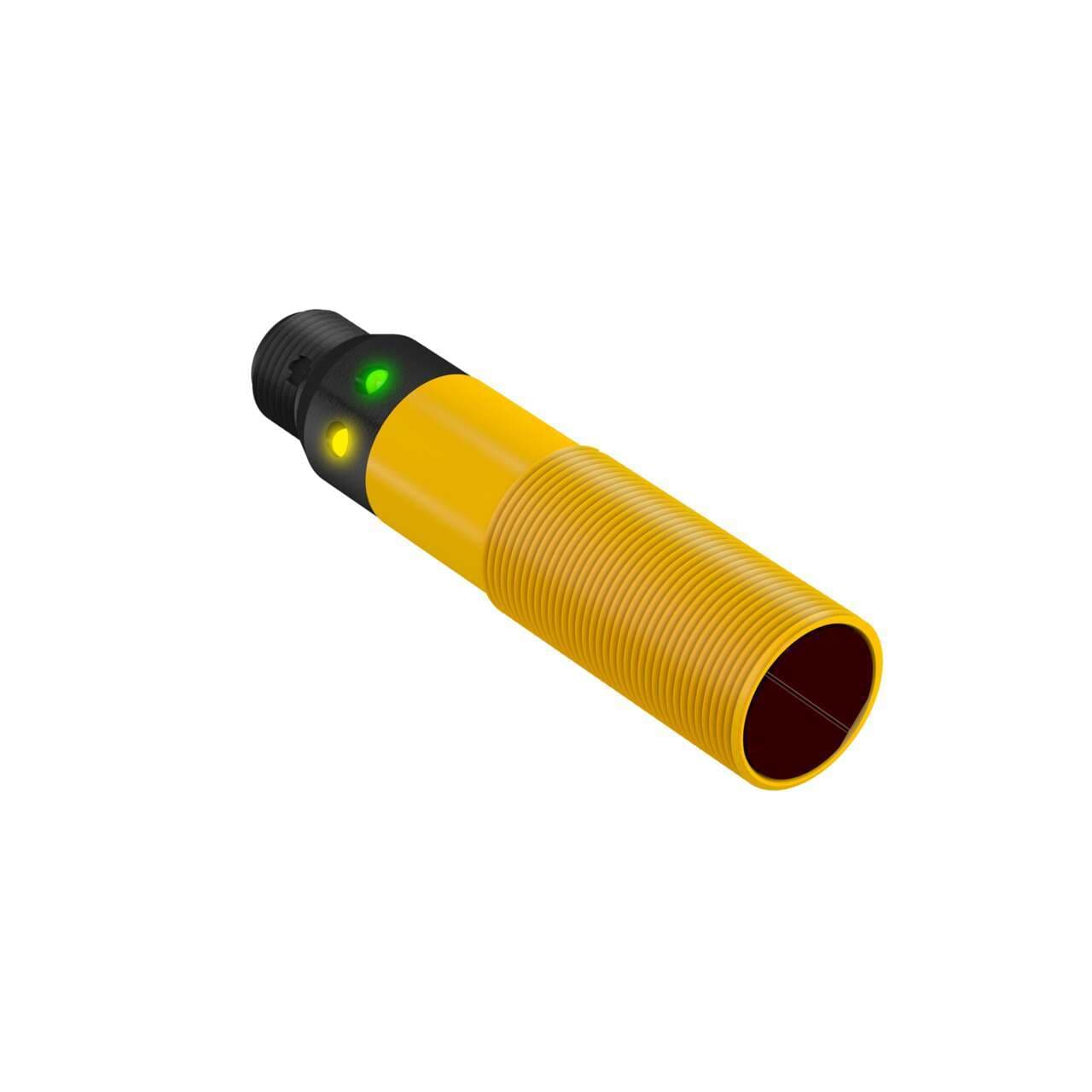

S18SP6DLQ Banner Retroreflective Sensors

S18SP6DLQ on Powermatic Associates
Banner

Part#:S18SP6DLQ

Alt. Part#:31176

Manufacturer:Banner

Category:Retroreflective Sensors

Product Lifecycle:Active

Product description

EZ-BEAM S18 Series: Diffuse; Range: 300 mm; Input: 10-30 V dc; Output: Complementary PNP; 4-pin M12 Integral QD

Product Details

  • Weight
    49.441528 g
  • Country Of Origin
    MX
  • Sensing distance
    300mm
  • Sub-range name
    S18 DC series
  • Primary brand
    Banner Engineering
  • Functions
    Photo-electric sensor green LED (power ON) amber LED (output state)
  • Main function
    Sensor (Photo-electric)
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Response time
    3ms / 0.003 s
  • Degree of protection
    IP69K NEMA 6P
  • Product series / family name
    EZ-BEAM series
  • Order code / Manufacturer SKU
    31176
  • Compliant with standard(s)
    cULus cCSAus CE
  • Thread size
    M18
  • Design
    diffuse mode
  • Shape
    Cylindrical threaded/barrel
  • Ambient air temperature for operation
    -40...+70 °C
  • Wavelength
    880 nm
  • Digital outputs
    1 x digital output (PNP transistor)
  • Material
    thermoplastic housing Acrylic lns.
  • Operating mode
    Light-ON Dark-ON
  • Connection type
    Pre-equipped with 4-pin Euro-style M12 connector
  • Light Color
    Infrared (IR)
  • Power
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • Operation
    Light/Dark Operate
  • Number of Pins
    4
  • Indicator
    LEDs
  • Input/Output
    Discrete
  • Max Sensing Distance (mm)
    300
  • Special Feature: Remote Teach
    No
  • Adjustments
    N/A
  • Feature: Encapsulated
    Yes
  • Outputs
    PNP
  • Max Op. Temp. (°C)
    70
  • Repeatability (µs)
    750
  • Max Op. Relative Humidity [%]
    90% @ 50°C
  • Feature: Timing (Hold/Delay)
    No
  • DeviceNet
    No
  • Sensing Mode (General)
    Proximity
  • Connection
    Integral QD
  • Special Feature: Intrinsically Safe
    No
  • Lens Material
    Acrylic
  • Housing Style
    Barrel
  • Power Supply/Supply Voltage
    10-30 V dc
  • Output response time (ms)
    3
  • NEMA Rating
    NEMA 6P
  • Feature: Ecolab Certified
    Yes
  • Sensing Mode (Detailed)
    Diffuse
  • Special Feature: Water Detection
    No
  • Feature: Washdown Rated
    Yes
  • IO Link
    No
  • Primary Housing Material
    Thermoplastic
  • Min Op. Temp. (°C)
    -40
  • IP Rating
    IP67, IP69
  • Barrel Diameter (mm)
    18
  • Feature: Hazardous Area
    No
  • Sensing Beam
    Infrared LED
  • Delay at Power-up (ms)
    100
  • Opposed Mode Emitter/Receiver
    N/A
  • Feature: Health/ Marginal Signal Output
    Yes
  • Feature: Audible
    No
  • Feature: Chemical Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S18SP6DLQ on Powermatic Associates is $76.00. Order now.

About the product

Banner Engineering S18SP6DLQ is a photo-electric sensor from the S18 DC series, designed in a diffuse mode with a thermoplastic housing and an acrylic lens. This sensor is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. It operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. The sensor can function within an ambient air temperature range of -40 to +70°C and offers a degree of protection rated at IP67, IP69K, and NEMA 6P, ensuring its durability in various environmental conditions. It features a cylindrical threaded/barrel shape with an M18 thread size. The S18SP6DLQ provides one digital output (PNP transistor; complementary NO/NC) and has a sensing distance of 300mm. It utilizes infrared (IR) light with a wavelength of 880 nm and has a quick response time of 3ms (0.003 s). The operating modes available are Light-ON and Dark-ON, catering to diverse application needs.
