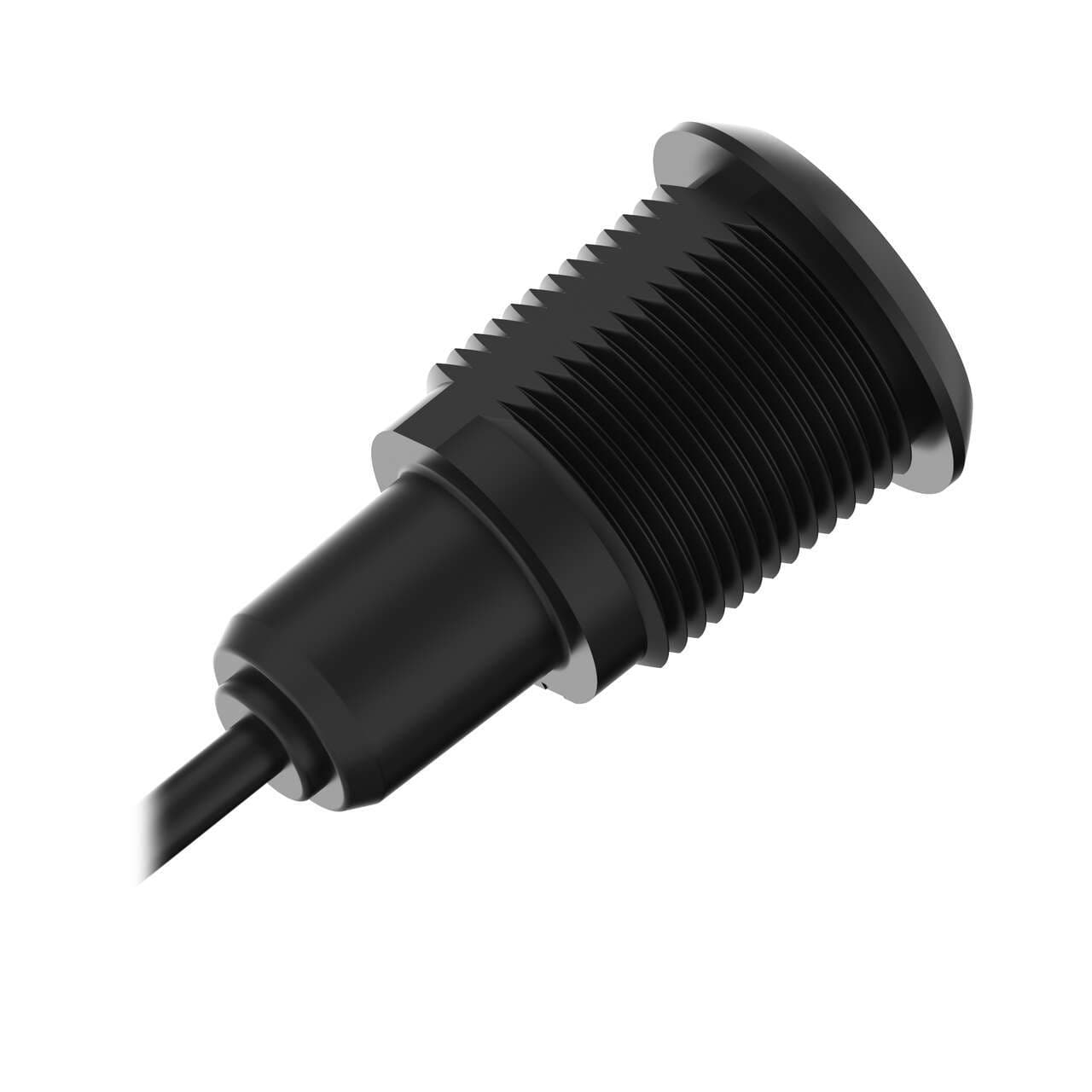

S22AMTSGREQP Banner Pick-to-Light Sensors
Part#:S22AMTSGREQP
Alt. Part#:804310
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Pro Touch Series: 2-color RGB Touch Sensor; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input/Output: Bimodal, NO, Momentary; Colors: Green Red; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Product Details
- Weight 40.82328 g
- Country Of Origin MX
- Cable Length (m) 0.15
- Product Size (mm) 22
- Color Option 2 Red
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 0.18
- Operation Normally Open
- Physical Dimensions (LxWxH or DxH mm) 27.3 x 47.8
- Multi-Color Device Single Color On
- Activation Function Capacitive Touch
- Color 1 - Wavelength/Color Temp/Coordinates 527 nm
- Max Current Color (mA) 80
- Max Input Response Time (ms) 20
- Actuation Yes
- Quick Disconnect Type M12 (Euro)
- Output Type Bipolar (NPN & PNP)
- Primary Housing Color Black
- Feature: Audible No
- Power DC
- Connection Pigtail QD
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Mis-Pick Light Red
- Max Output Response Time (ms) 300
- Min Op. Temperature (°C) -40
- IO Link No
- Pro-Editor Compatible (Discrete) Yes
- Housing Style Barrel Mount - Flat Window
- Color Technology RGB Configurable
- Pick-to-Light Function E
- Storage Temp (°C) -40 to 70
- Feature: Hazardous Area No
- Mounting Thread M22 x 1.5
- Lumens Color 2 0.08
- Supply Voltage 10-30 V dc
- Max Op. Temperature (°C) 50
- Job Light Green
- Power Source DC
- Number of Colors / Segments 2
- Number of Input Pins/Conductors 5
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Primary Window Material Polycarbonate Diffused
- I/O Block Compatible Yes
- Environmental Rating IP66; IP67; IP69
- Modbus RTU No
- Feature: Washdown Rated Yes
- Wireless No
- Feature: Quick Disconnect Yes
- Button Operation Momentary
- Input Type Bimodal (PNP/NPN)
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22AMTSGREQP on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering S22AMTSGREQP is a pick-to-light device featuring LED illumination and capacitive touch-sensitive technology. It is constructed with a polycarbonate (PC) diffused window and a PC base, designed for flush mounting in a 22mm hole. This part is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style quick disconnect (QD) connector. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. It offers a digital output for both touch (10-30Vdc; PNP/NPN) and mispick (10-30Vdc; PNP/NPN) signals, alongside a digital input for JOB color control (10-30Vdc; PNP/NPN). The operating mode includes a momentary job light (Green) that activates with job input and a mispick light (Red) for inactive job inputs, with a normally open (NO) touch output. The device is designed to withstand ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP66, IP67, and IP69K. Its current consumption is 80mA, and it features a flat window and threaded cylindrical barrel shape for its 22mm diameter button.
